Rigol DS1000CA Series User Manual

RIGOL
2-38 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series

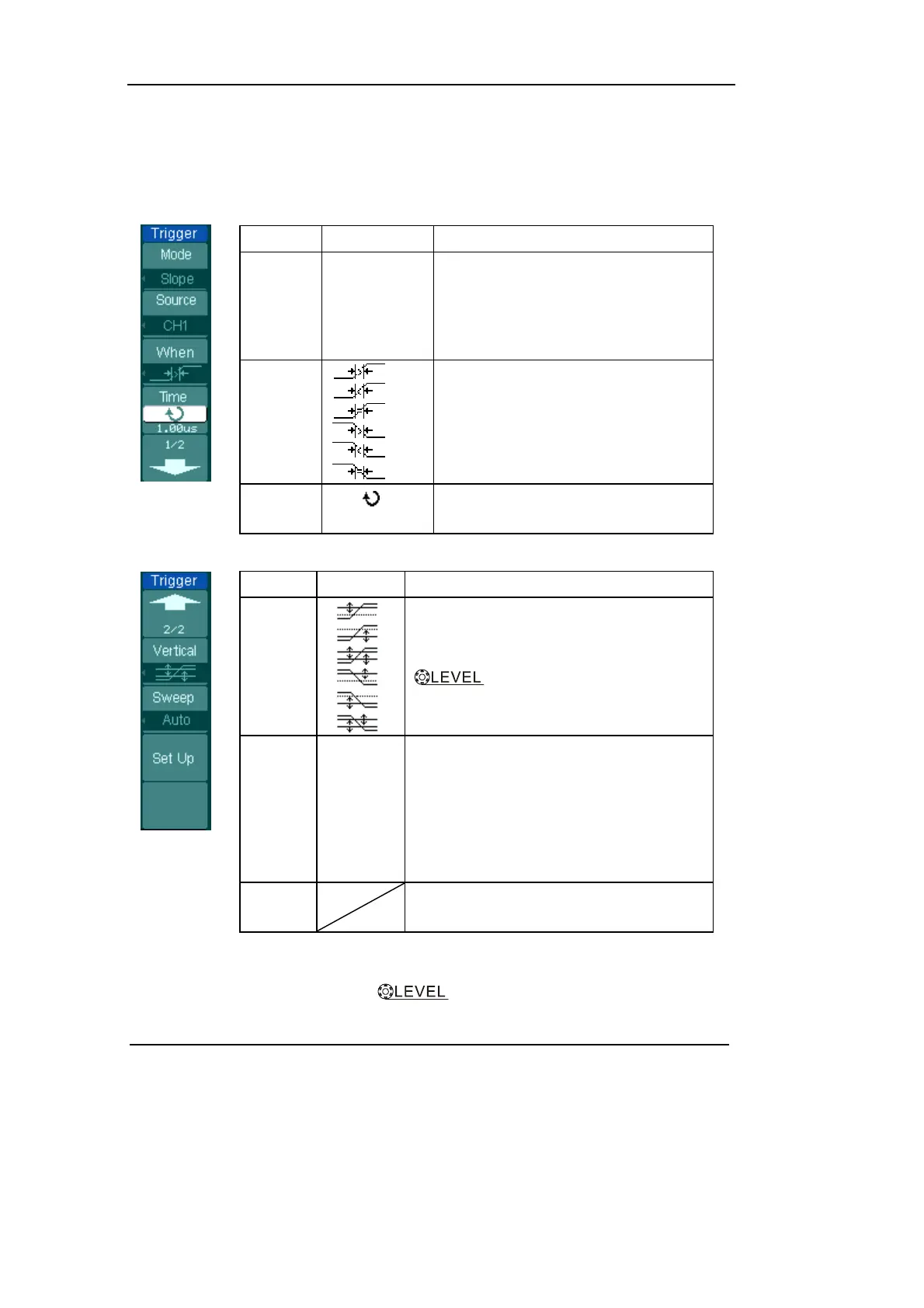

Slope Trigger
Slope trigger sets the oscilloscope as the positive/negative slope trigger within the
specified time
Figure 2-44 Table 2-23 The Slope Trigger menu (Page 1/2)
Menu
Settings Comments
Source
CH1
CH2
EXT
EXT/5
Set channel 1 as trigger source.
Set channel 2 as trigger source.
Set EXT. channel as trigger source.
Set EXT/5 as trigger source.
When Set slope condition.
Time
<Time Set>
Set slope time.
Figure 2-45 Table 2-24 The Slope Trigger menu (Page2/2)
Menu
Settings Comments
Vertical
Select the level that can be ad
j
usted by
.
Sweep
Auto
Normal
Single
Acquire waveform even when no trigger
condition is met.
Acquire waveform when trigger
condition is met.
When trigger condition is met, acquire
one waveform and then stop.
Set Up
To go to set up menu. See Table 2-32
and table 2-33.
Note: Slope time can be set from 20ns to 10s. When a signal meets the trigger
condition, scope will execute the acquisition. You can adjust LEVEL A/ LEVEL B or
both simultaneous by turning the
knob.
