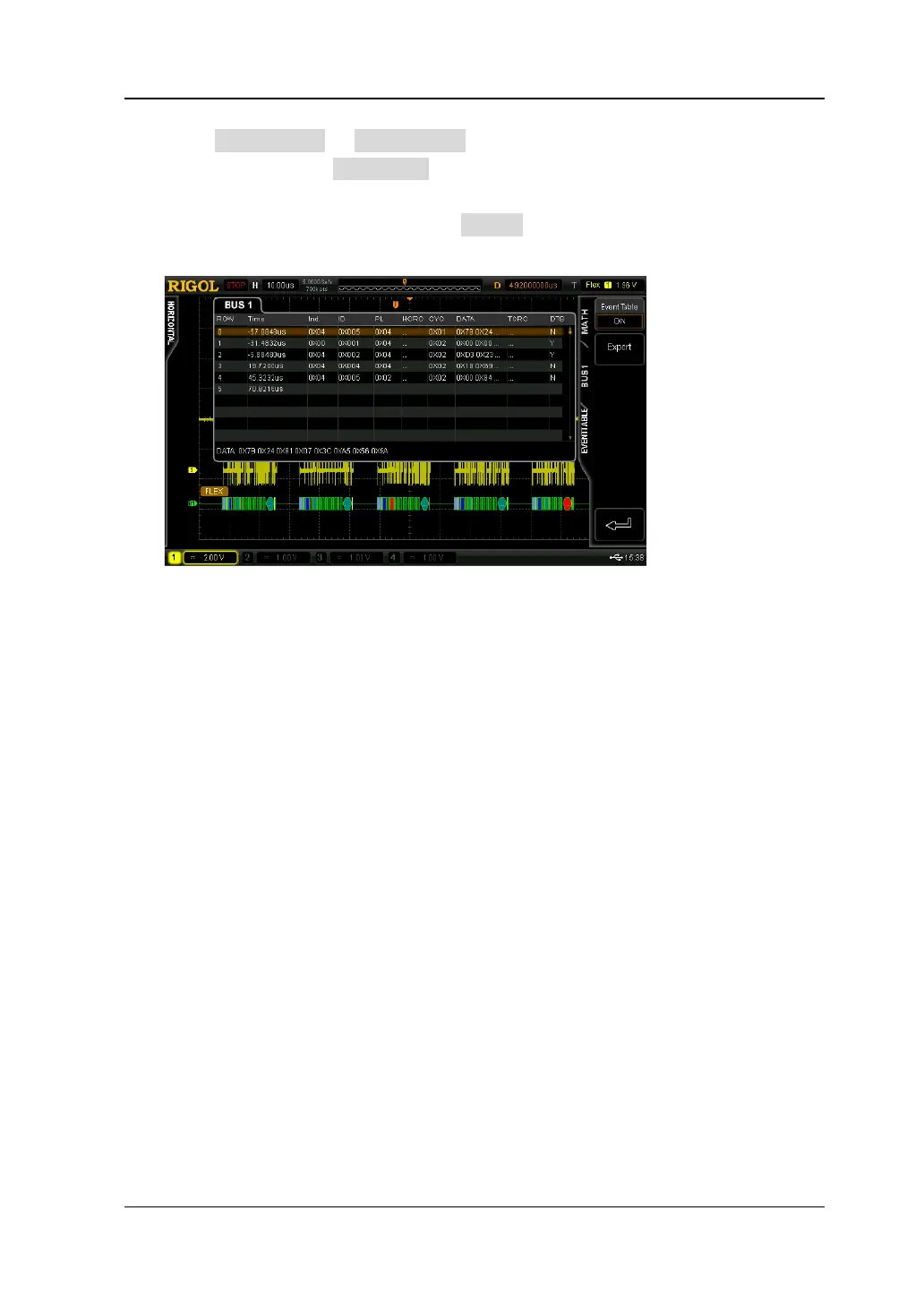

7 Protocol Decoding RIGOL

DS6000 User’s Guide 7-23

Press Event Table  Event Table to select "ON" (note that this operation is

only available when BusStatus is set to "ON") to enter the decoding table

interface as shown in the figure below. If a USB storage device is currently

connected to the instrument, press Export to export the data table to the

external USB storage device in CSV format.
