Rigol DS6000 Series User Manual

RIGOL 7 Protocol Decoding
7-24 DS6000 User’s Guide

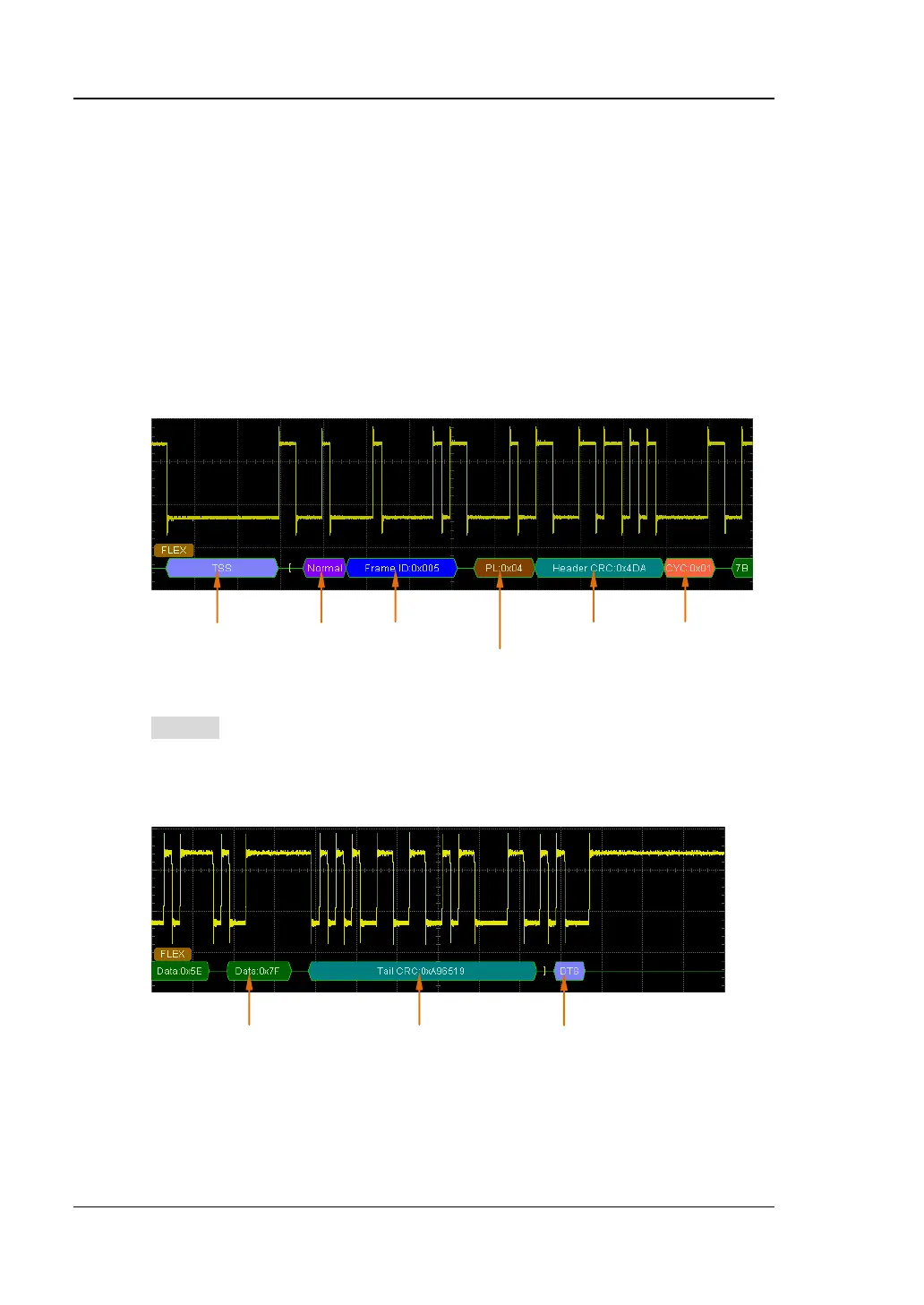

9. Explanation of the Decoded FlexRay Frame Data
 TSS: transmission start sequence and is expressed by light purple patch.
 Frame Type: the FlexRay frame type can be NORMAL, SYNC, SUP or NULL.
It is expressed by purple patch.
 Frame ID: hexadecimal number and is expressed by blue patch.
 Effective Loading Length: hexadecimal number and is expressed by brown
patch.
 Header CRC: hexadecimal number and is expressed by blue-green patch.
When CRC is invalid, it is expressed by red patch.
 Number of Cycles: hexadecimal number and is expressed by pink patch.
 Data: displayed in the format (Hex, Decimal, Binary or ASCII) specified in
Format and expressed by green patch.
 Tail CRC: hexadecimal number and is expressed by blue-green patch. When
CRC is invalid, it is expressed by red patch.
 DTS: dynamic end sequence and is expressed by purple patch.
TSS Frame Type Frame ID Header CRC Number of Cycles
Effective Loading Length
Data Tail CRC DTS
