RIGOL 7 Protocol Decoding
7-8 DS6000 User’s Guide

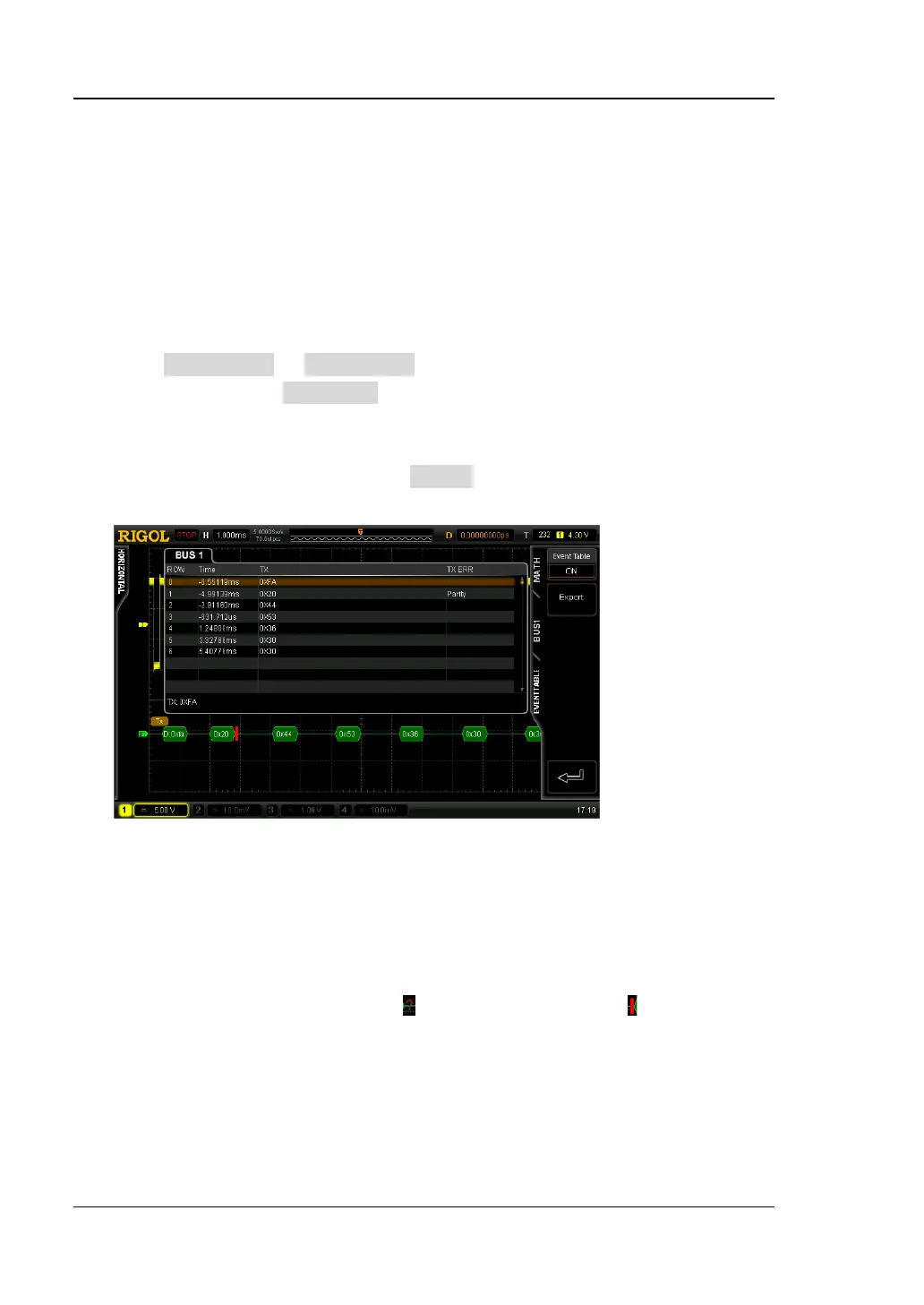

7. Decoding Table
The decoding table displays the decoded data, the corresponding line number,
time and error information on TX and/or RX data lines in table format. It can be
used to observe relatively longer decoded data to solve the problem that some
data could not be seen clearly on the screen. Note: When the TX or RX channel
is set to "None", the information of this data line will not be displayed in the
decoding table.
Press Event Table ïƒ Event Table to select "ON" (note that this operation is
only available when BusStatus is set to "ON") to enter the decoding table
interface as shown in the figure below. If error occurs during the decoding, the
corresponding error information is displayed. If a USB storage device is currently
connected to the instrument, press Export to export the data table to the
external USB storage device in CSV format.
8. The Error Expression During Decoding
DS6000 makes full use of the resources such as color and view to express the
results of the protocol decoding effectively and let users find the desired
information quickly. When decoding error occurs, red error mark (Note: The
display form of the red error mark is related to the horizontal time base. When
the time base is relatively smaller,
is displayed; otherwise, is displayed) is
displayed.
End Frame Error:
It refers to the error generated when the end frame condition is not met. When
the stop bit is set to 1.5, red error mark will be displayed if the stop bit is less
To Next Page
