RIGOL 7 Protocol Decoding

7-16 DS6000 User’s Guide

9. Error Expressions During Decoding

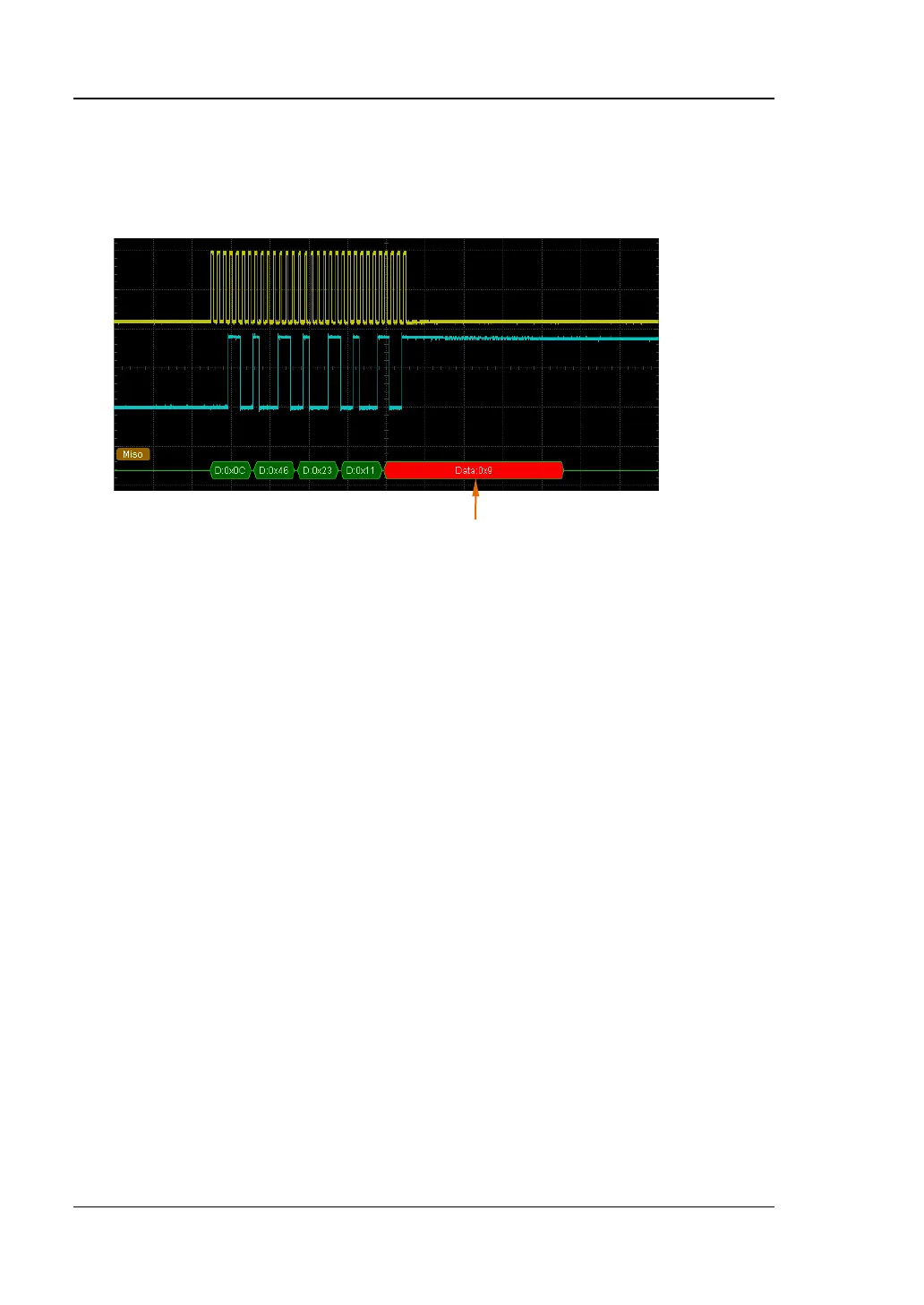

When the clock for a frame in SPI is not enough, the data is filled with red

patches. For example, when Data Bits is set to 7 and SCLK slope is set to rising

edge, decoding error will be generated.

Not enough for 7 bits
