4.3 User Interface Overview

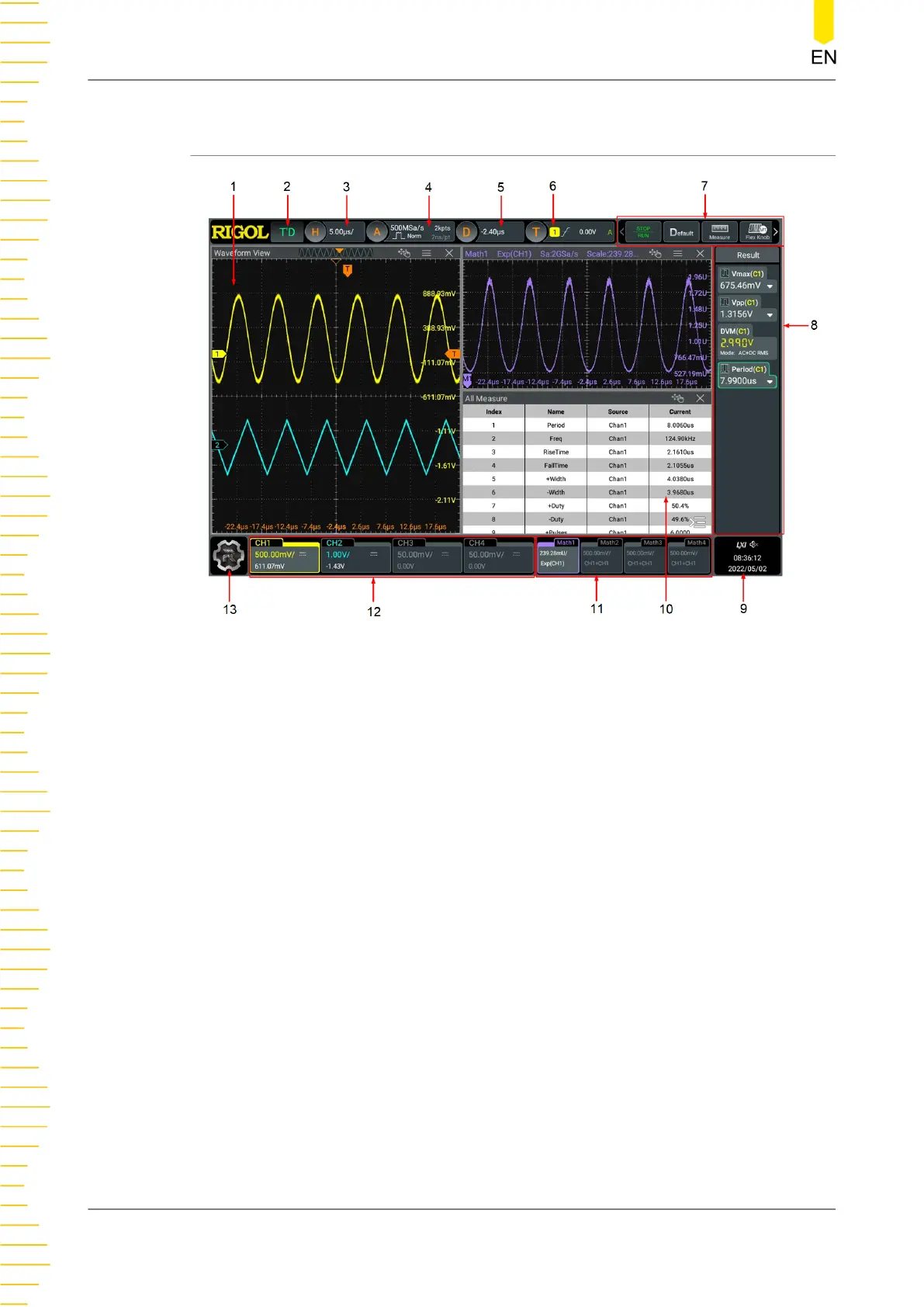

Figure 4.4 User Interface
1
Waveform View
8
Result Sidebar
2 Run State Label 9 Notification Area
3 Horizontal Timebase Label 10 Split-screen Display
4 Sample Rate & Memory Depth
Label
11 Math Labels
5 Horizontal Delay Label 12 Channel Labels
6 Trigger Label 13 Function Navigation Icon
7 Function Toolbar
