To Prepare for Use
5.1 Tilting the Oscilloscope for Easier Viewing
Flip out the tabs under the oscilloscope's rear feet to tilt the oscilloscope to stabilize it
for easier operation and viewing. Flip in the tabs for storage or transporting when not
using the instrument. Please see the figure below.

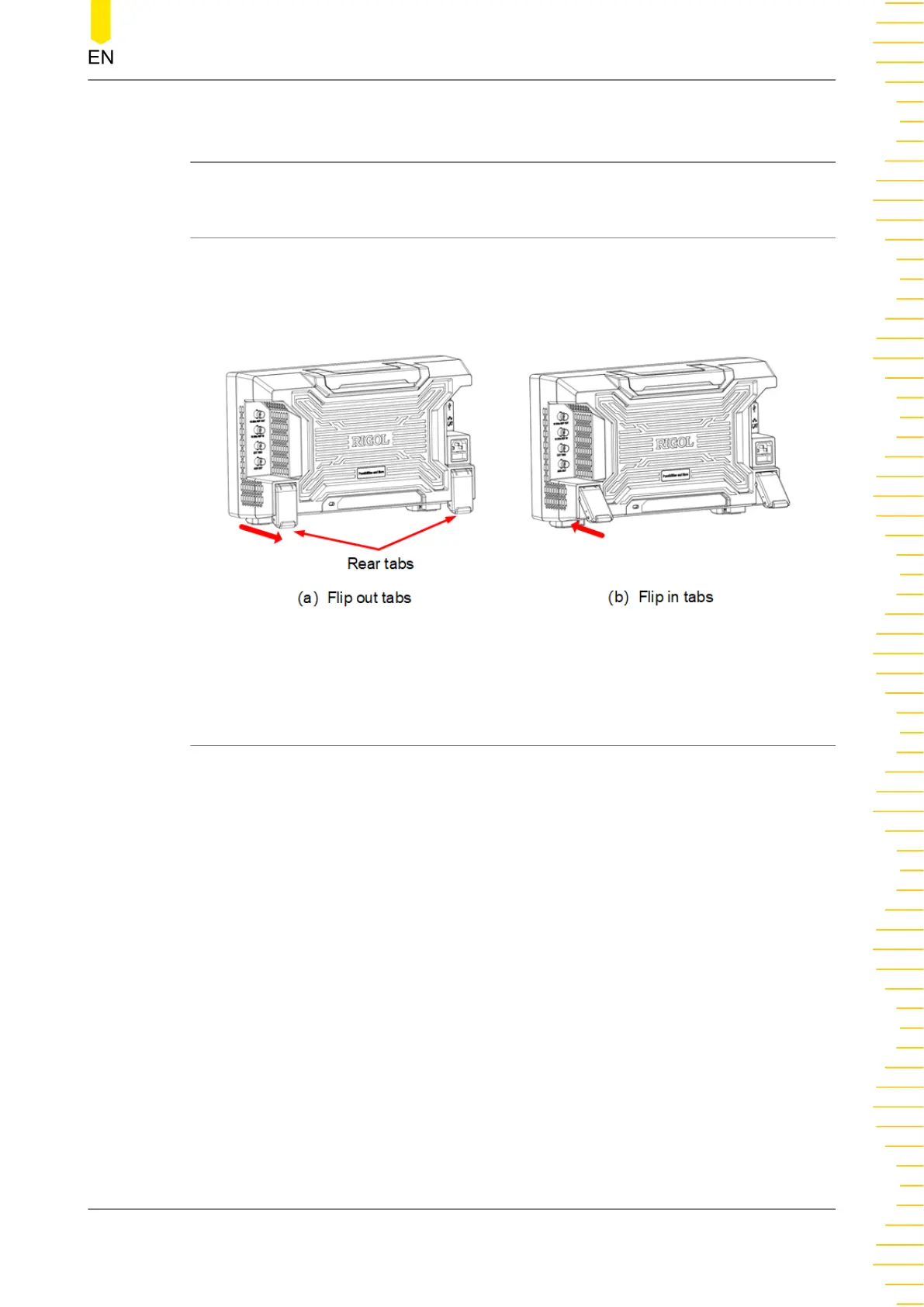

Figure 5.1 Flipping in/out Tabs
5.2 Connecting to Power
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please use the
power cord provided in the accessories to connect the oscilloscope to the AC power
source, as shown in the figure below.
To Prepare for Use
