MSO8000 Quick Guide 9
To Prepare for Use
To Adjust the Supporting Legs

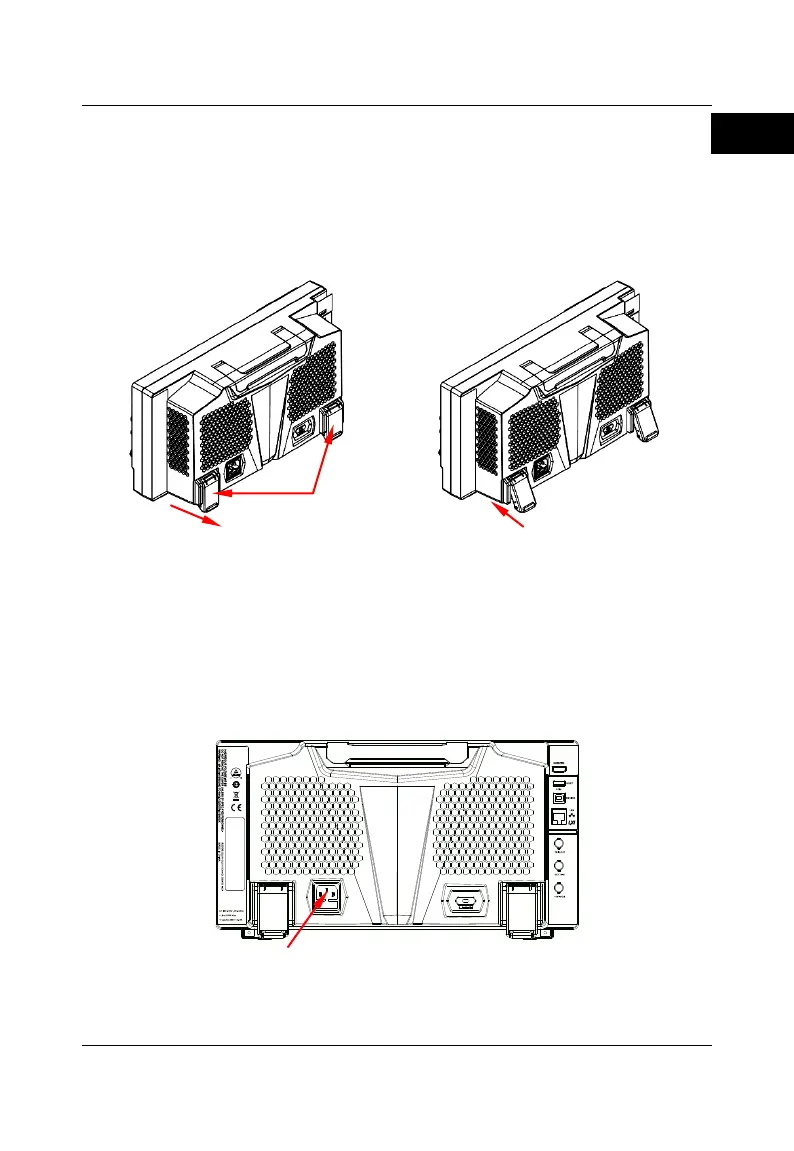

Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation
and observation, as shown in Figure 4.
(a) To unfold the supporting legs
(b) To fold the supporting legs
Figure 4 To Adjust the Supporting Legs
To Connect to AC Power
The input AC power requirements of the oscilloscope are 100~240 V, 45~440
Hz. Please use the power cord provided in the accessories to connect the
oscilloscope to the AC power source via the power cord connector, as shown in
Figure 5.
Figure 5 To Connect to AC Power
To Next Page
