RIGOL
12 MSO8000 Quick Guide
Connect the logic probe:
1. Connect the output terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction, as
shown in Figure 9.
2. Connect the other terminal of the logic probe to the signal terminal under
test. RIGOL's MSO8000 series has a configuration of a logic probe
RPL2316. To apply to different application scenarios, RPL2316 provides
three connection methods to connect the signal under test. For details,
refer to
RPL2316 Logic Probe User’s Guide
.

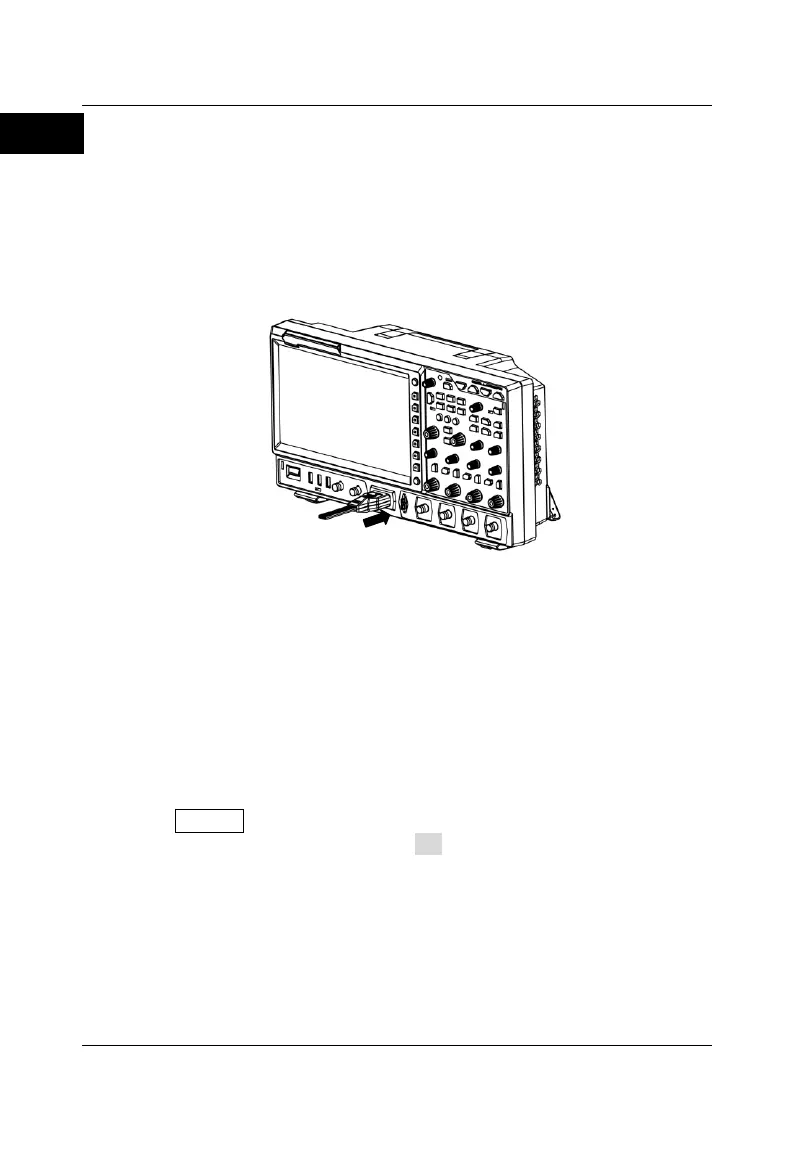

Figure 9 To Connect the Logic Probe
Note:
Before you connect the logic probe to the signal under test, connect logic
probe's adapter provided in the accessories to its corresponding channel
group.
The digital channel input terminal does not support hot plugging. Please
do not insert or pull out the logic probe when the instrument is in
power-on state.
Function Inspection
1. Press Default on the front panel, and then a prompt message "Restore
default?" is displayed. Press or tap OK to restore the oscilloscope to its
factory default settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in Figure 10 below.
3. Use the probe to connect the input terminal of CH1 of the oscilloscope and
the "Compensation Signal Output Terminal" of the probe, as shown in
Figure 10.
To Next Page
