MSO8000 Quick Guide 11
English
compensation adjustment before making measurements. For detailed
procedures, refer to "Function Inspection" and the "Probe
Compensation" sections introduced in this manual.
Connect the active probe:
Take RP7150 (the active differential probe) as an example.

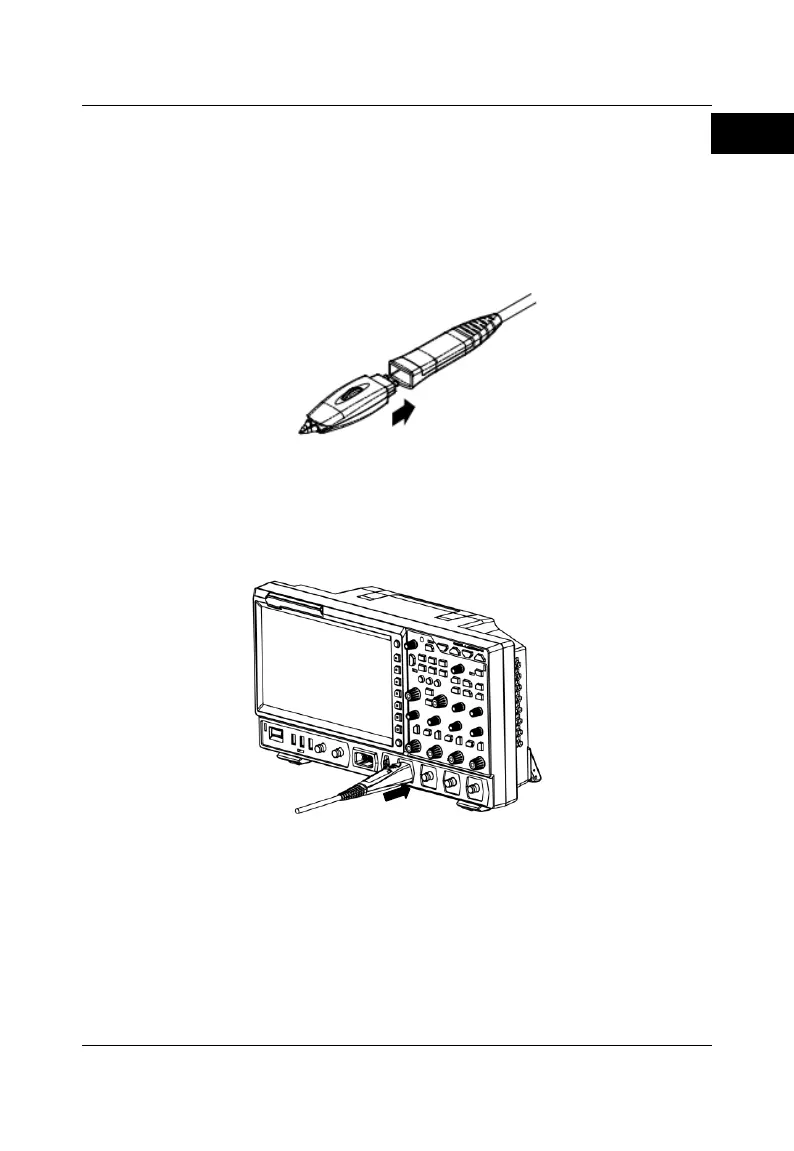

1. Connect the probe head to the preamp of the active probe, as shown in
Figure 7.
Figure 7 To Connect the Probe Head to the Preamp of the Active Probe
2. Connect the other end of the preamp to an analog channel input terminal
of the oscilloscope on the front panel, as shown in Figure 8. Note that you
should push the probe to the end to ensure that it is tightly connected.
Figure 8 To Connect the Active Probe
3. Use the probe auxiliary equipment to connect the probe front to the circuit
under test. For details about the probes, refer to RP7000 Series Active
Probe User's Guide .
After connecting the active probe, you can perform probe calibration and offset
voltage adjustment if necessary. For detailed procedures, refer to the
descriptions of the active probe in user's guide.
