RIGOL

MSO8000 Quick Guide 19

English

Parameter Setting Method

For the MSO8000 series, you can use the multifunction knob or enable the

touch screen to set the parameters of MSO8000 series. The common parameter

setting methods are as follows:

Method 1:

For the parameters with the sign , rotate the multifunction knob on the

front panel directly to select the parameter item or modify the parameter value.

Method 2:

For the parameters with the sign , rotate the multifunction knob on the

front panel and press it down to select the parameter item or modify the

parameter value.

Method 3:

For the parameters with displayed on the menu, rotate the multifunction

knob on the front panel directly to set the parameter, or press down the

multifunction knob or the specified menu softkey, and then the numeric

keypad is shown in Figure 18 below.

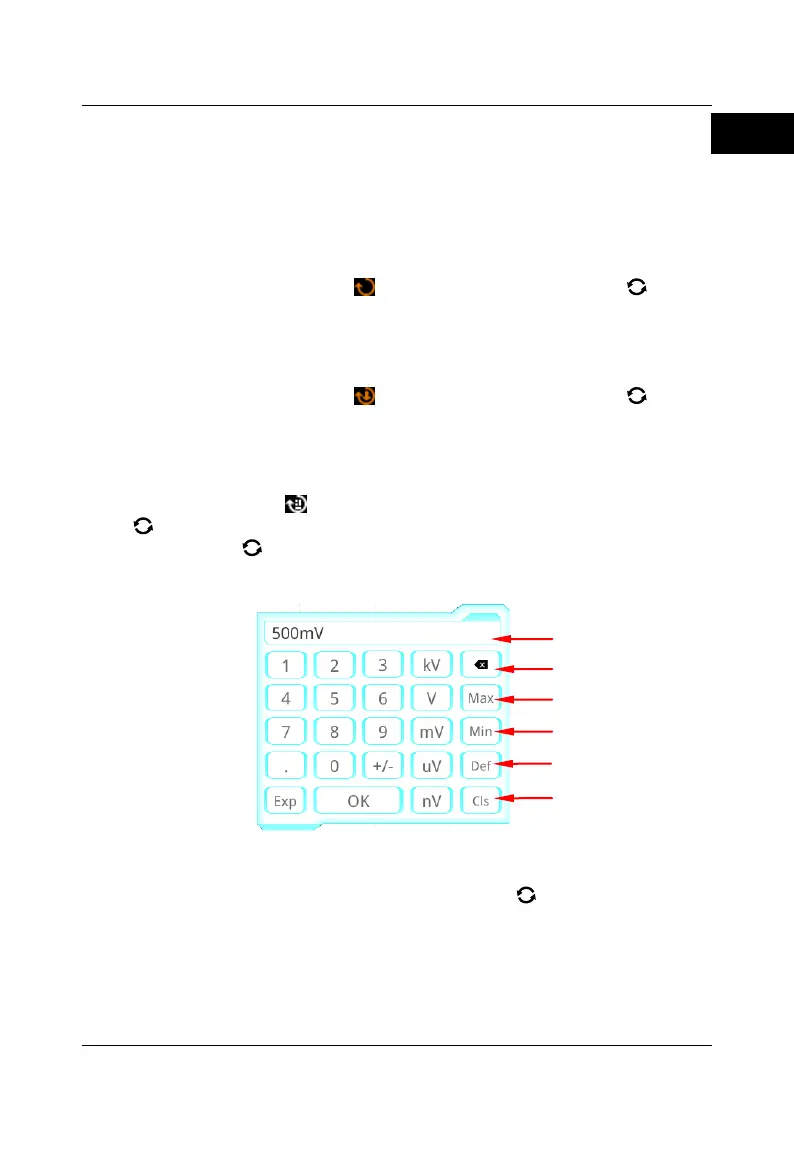

Figure 18 Numeric Keypad

In the numeric keypad, rotate the multifunction knob to select the

parameter, then press down the knob to select it. Then input the value or the

unit. You can also enable the touch screen and tap the value or unit in the

numeric keypad to input them. After you input all the values and select the

desired units, the numeric keypad is turned off automatically. This indicates

that you have completed parameter setting. Besides, after you have input the

Parameter Input Field

Delete Key

Max. Value Key

Min. Value Key

Default Key

Clear Key
