16 MSO8000 Quick Guide
English

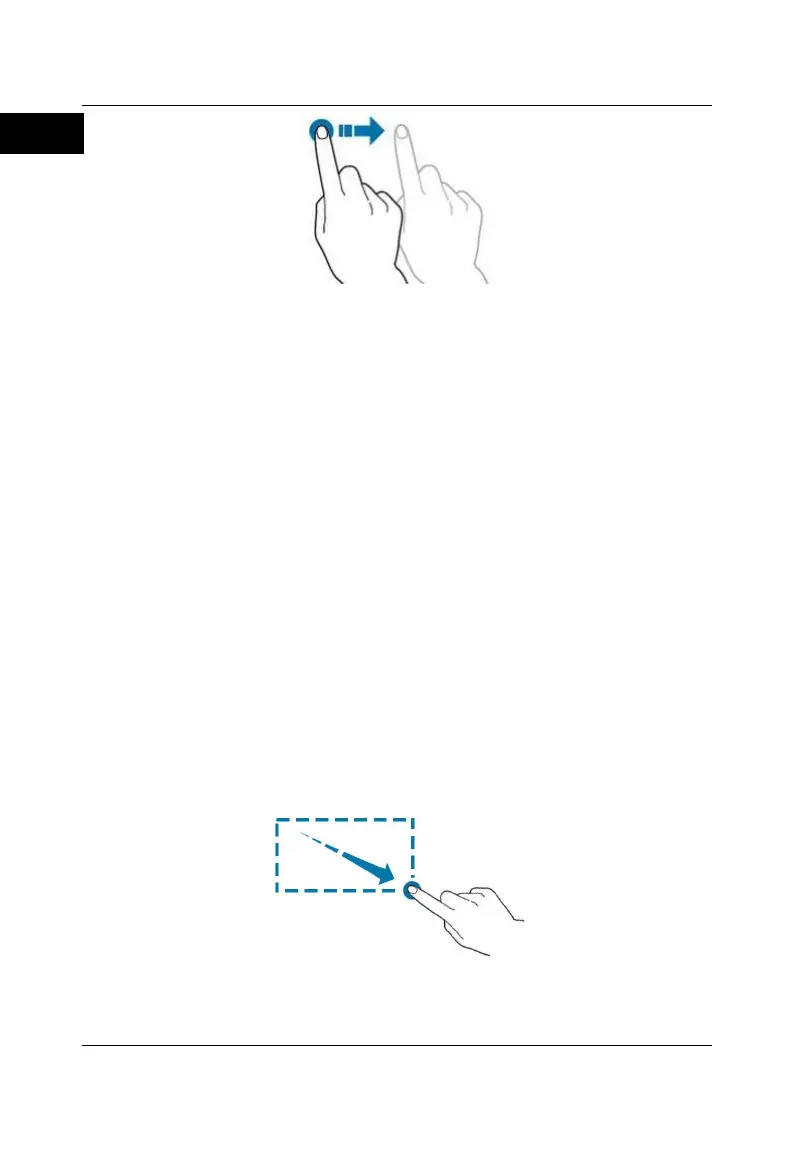

Figure 15 Drag Gesture
Rectangle Drawing
Enable the function navigation, and then tap the "Draw rect" icon to switch to
the rectangle drawing mode. Drag to draw a rectangle on the screen, as shown
in Figure 16. The actions supported by the rectangle drawing include:
 Select "Trigger zone A":
 Draw the region for Trigger zone A;
 Open Trigger zone A;
 Open the "Zone trig" menu.
 Select "Trigger zone B":
 Draw the area for Trigger zone B;
 Open Trigger zone B;
 Open the "Zone trig" menu.
 Select "Histogram":
 Draw the region for the histogram;
 Open the "Histogram" menu.
 Select "Horizontal zoom": expands the waveforms in the horizontal
direction.
 Select "Vertical zoom": expands the waveforms in the vertical direction.
 Select "waveform zoom": expands the waveforms both in the horizontal
and vertical direction.
Figure 16 Rectangle Drawing Gesture
