Rigol MSO8000 Series Quick Guide

RIGOL
MSO8000 Quick Guide 15
English

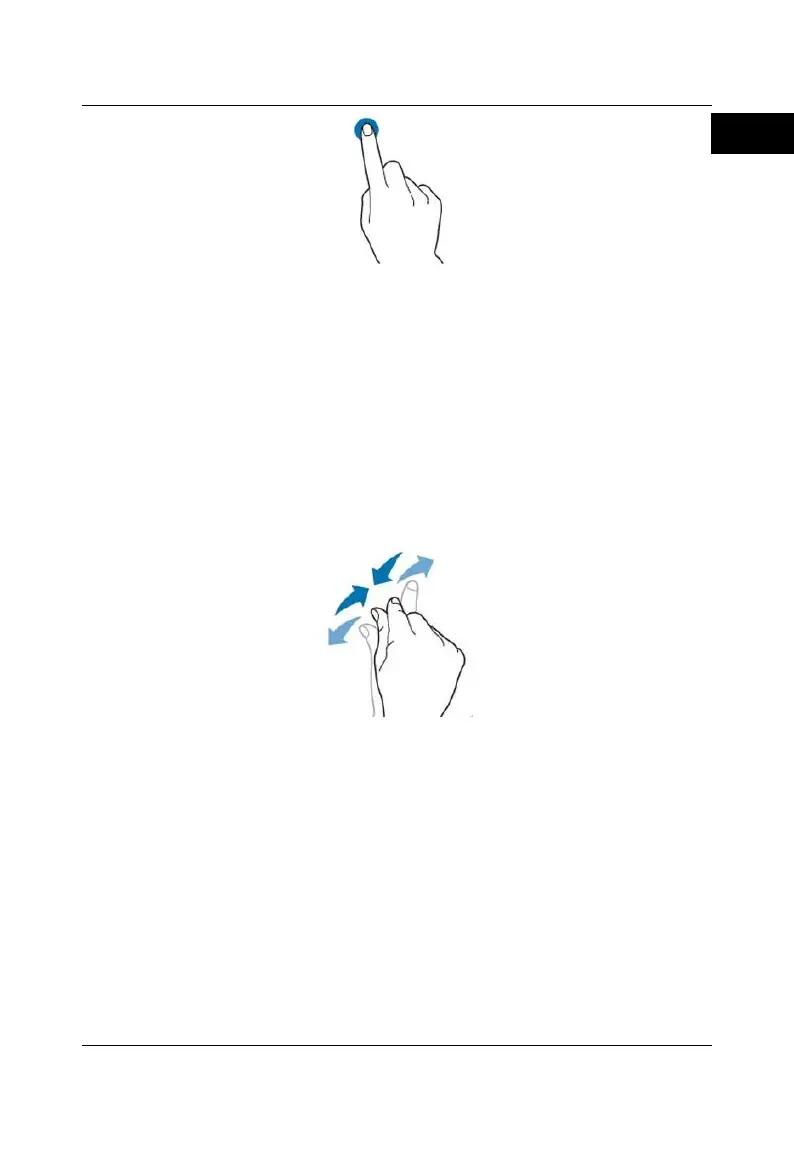

Figure 13 Tap Gesture
Pinch&Stretch
Pinch or stretch two points on the screen with two fingers to zoom in or out the
waveform. To zoom in the waveform, first pinch the two fingers and then
stretch the fingers; to zoom out the waveform, first stretch the two fingers, and
then pinch the fingers together, as shown in Figure 14. The actions supported
by the pinch action include:
 Pinching&stretching in the horizontal direction can adjust the horizontal
time base of the waveform.
 Pinching&stretching in the vertical direction can adjust the vertical scale of
the waveform.
Figure 14 Pinch&Stretch Gesture
Drag
Use one finger to select the object, and then drag the object to a destination
place, as shown in Figure 15. The actions supported by the drag action include:
 Drag the waveform to change its position or offset.
 Drag the window controls to change the positions of the controls (e.g.
numeric keypad).
 Drag the marker to change the position of the marker.
