ring Stick Up Cam User Manual

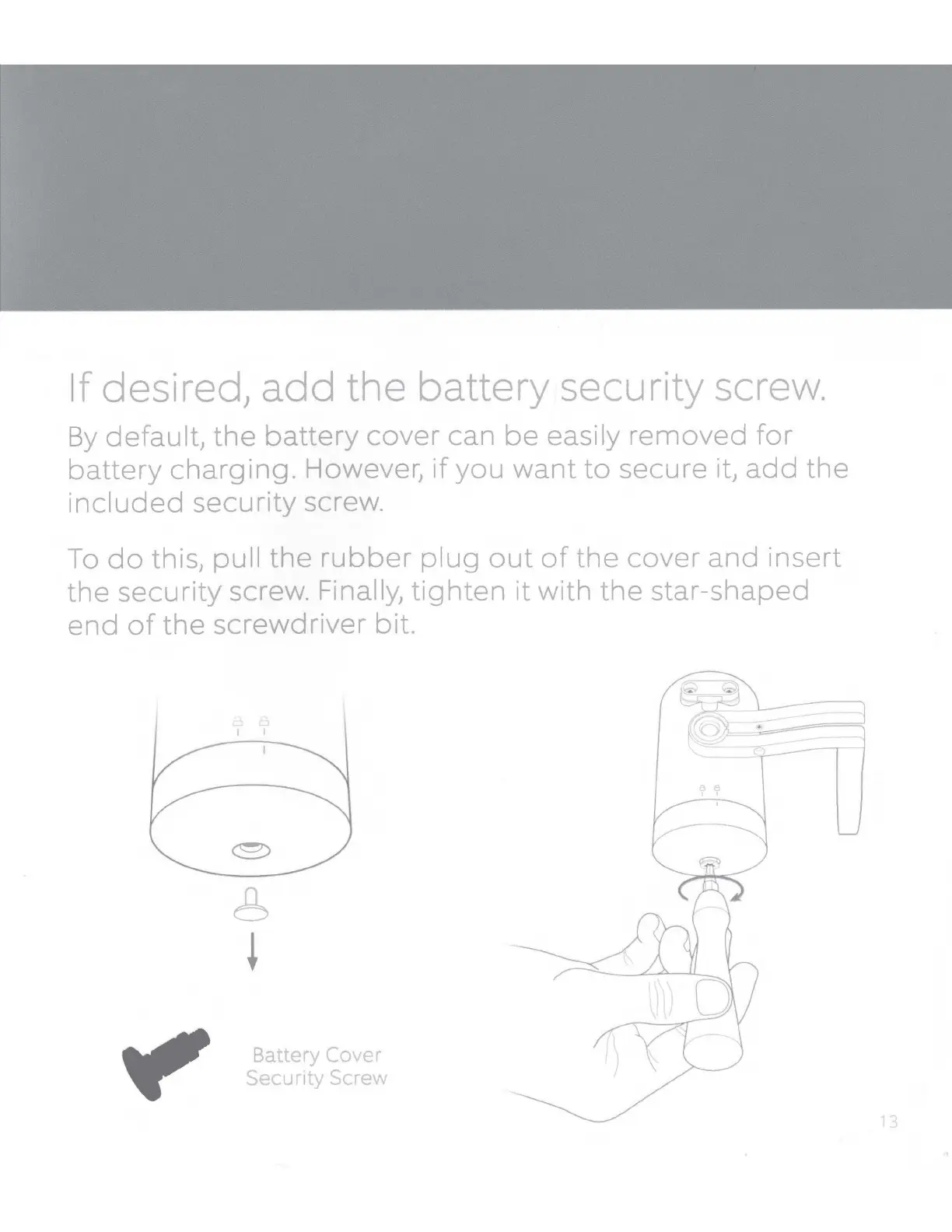

If desired) add the battery security screw.
By default) the battery cover can be easily removed for
battery charging. However) if you want to secure it) add the
included security screw.
To do this) pull the rubber plug out of the cover and insert
the security screw. Finally) tighten it with the star-shaped
end of the screwdriver bit.
I I
Battery Cover
Security Screw
~
f«. ~ ~==~
I

ring Stick Up Cam Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Ceiling/wall
Product color	Black
Cables included	Micro-USB
Number of cameras	1
LED type	IR
Ethernet LAN	-
Battery life	1 year(s)
Power consumption	5200 mA
Audio system	2-way
Minimum illumination	- lx
Field of view (FOV) angle	80 °
Operating temperature (T-T)	5 - 48 °C

Weight and Dimensions

Depth	37 mm
Width	62 mm
Height	127.5 mm
Package type	Box
