ring Stick Up Cam User Manual

•
ring

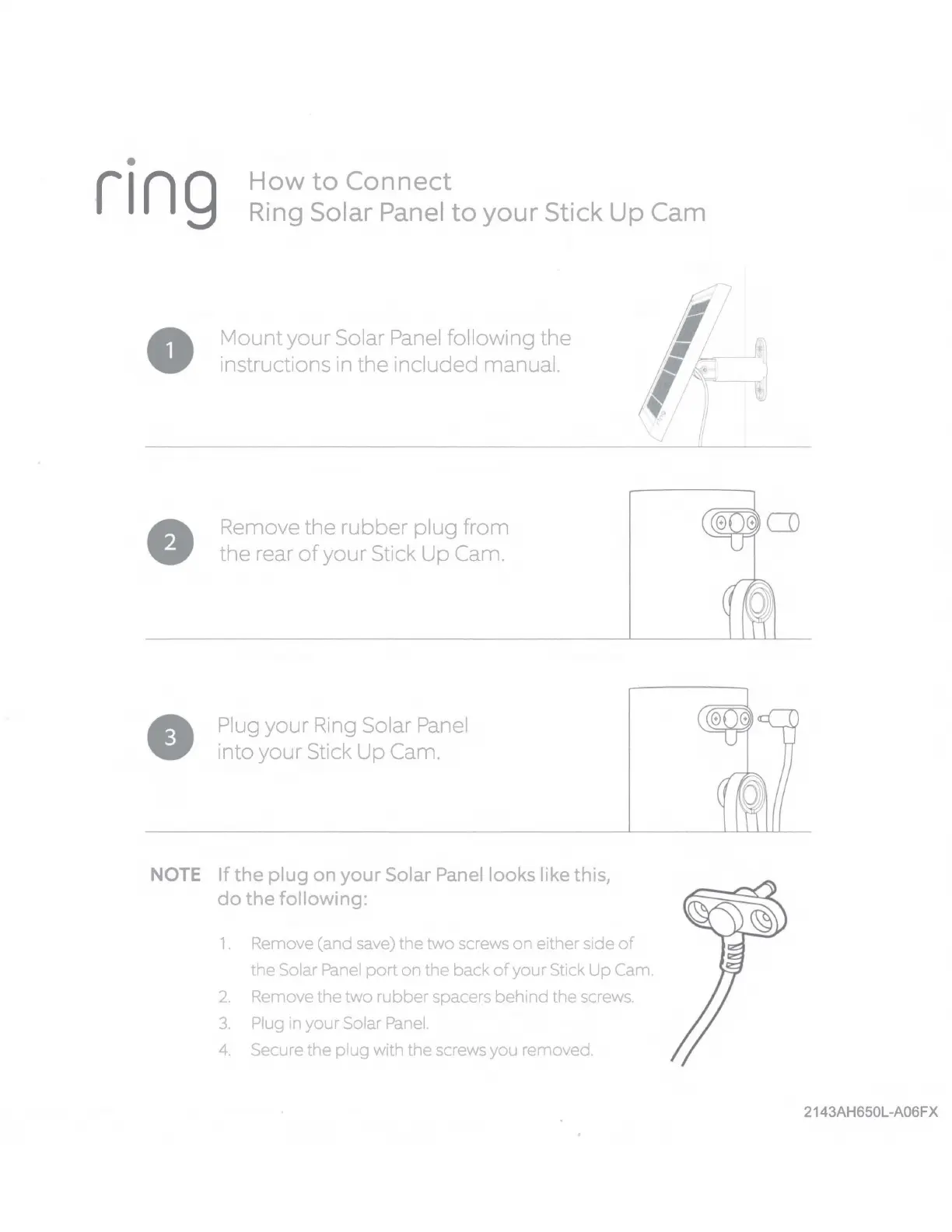

How to Connect
Ring So lar Panel to your Stick Up Cam
0
e
e
Mount your Solar Panel following the
instructions in the included manual.
Remove the rubber plug from
the rear of your Stick Up Cam.
Plug your Ring Solar Panel
into your Stick Up Cam.
NOTE If the plug on your Solar Panel looks like this,
do the following:
1. Remove (and save) the two screws on either side of
the Solar Panel port on the back of your Stick Up Cam.
2. Remove the two rubber spacers behind the screws.
3. Plug in your Solar Panel.
4. Secure the plug with the screws you removed.
2143AH650L-A06FX

ring Stick Up Cam Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Ceiling/wall
Product color	Black
Cables included	Micro-USB
Number of cameras	1
LED type	IR
Ethernet LAN	-
Battery life	1 year(s)
Power consumption	5200 mA
Audio system	2-way
Minimum illumination	- lx
Field of view (FOV) angle	80 °
Operating temperature (T-T)	5 - 48 °C

Weight and Dimensions

Depth	37 mm
Width	62 mm
Height	127.5 mm
Package type	Box
