ring Stick Up Cam User Manual

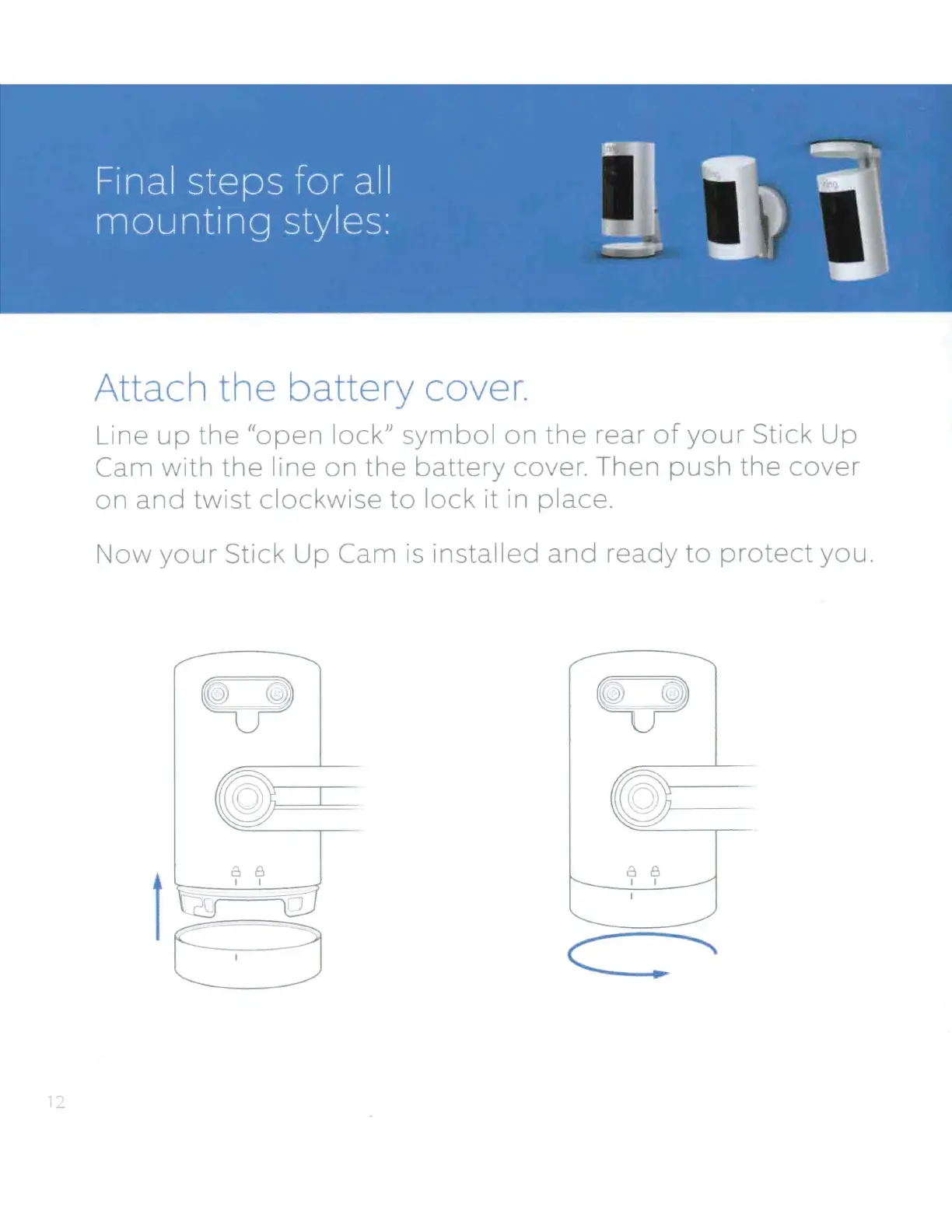

Attach the battery cover.
Line up the "open lock)) symbol on the rear of your Stick Up
Cam with the line on the battery cover. Then push the cover
on and twist clockwise to lock it in place.
Now your Stick Up Cam is installed and ready to protect you.
8 8
I I

ring Stick Up Cam Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Ceiling/wall
Product color	Black
Cables included	Micro-USB
Number of cameras	1
LED type	IR
Ethernet LAN	-
Battery life	1 year(s)
Power consumption	5200 mA
Audio system	2-way
Minimum illumination	- lx
Field of view (FOV) angle	80 °
Operating temperature (T-T)	5 - 48 °C

Weight and Dimensions

Depth	37 mm
Width	62 mm
Height	127.5 mm
Package type	Box
