Infinity REU-V1616W / REU-V1620W / REU-V2018W / REU-V2020W- 11 - Issue 2 - 21/03/06 ©Rinnai

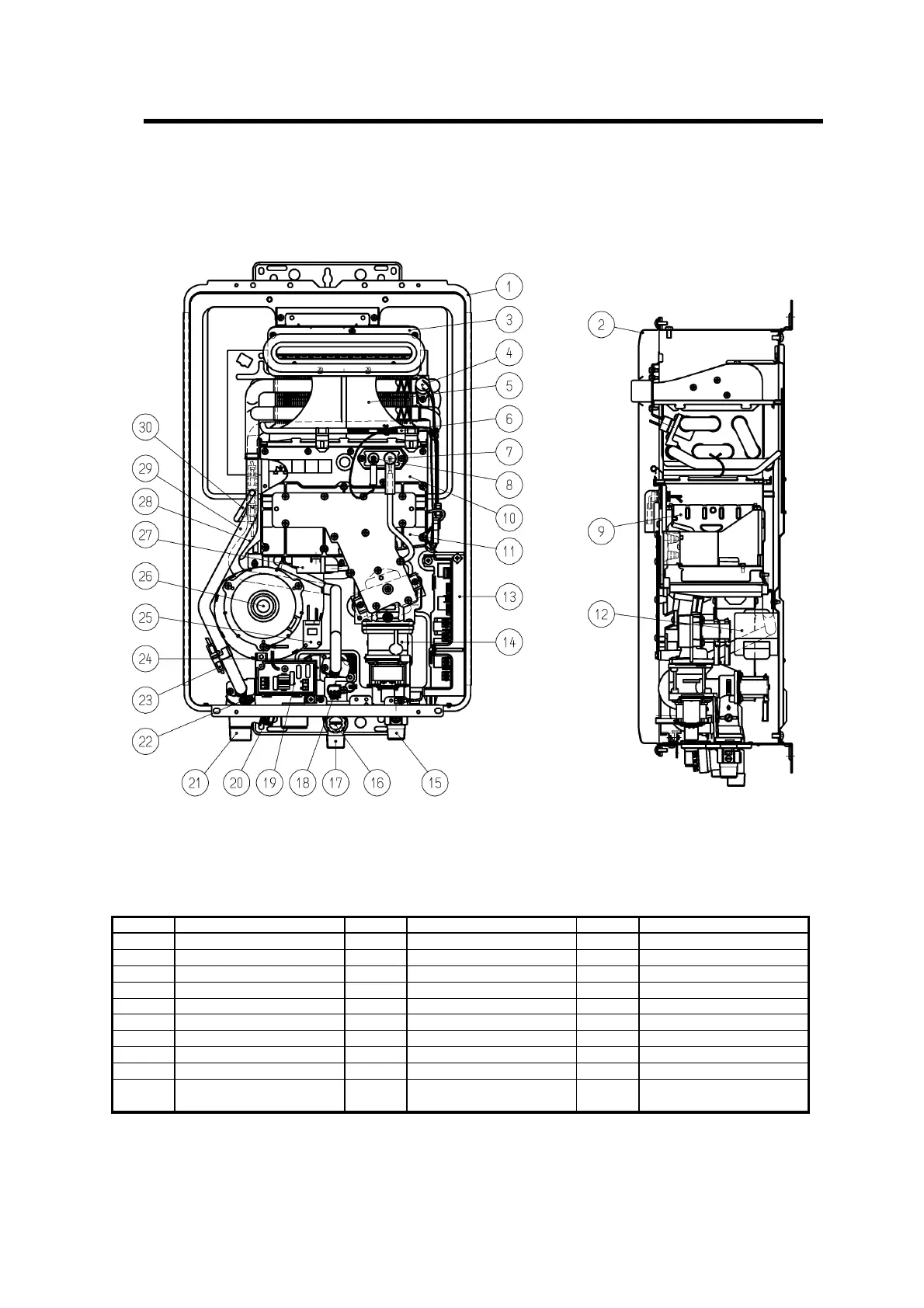

6. Cutaway Diagram
REU-V1616W / REU-V1620W
Part No. Description Part No. Description Part No. Description
1 Casing Assembly 11 Manifold Assembly 21 Hot Water Outlet
2 Front Panel Assembly 12 Transformer 22 Ongoing Water Thermistor
3 Flue Outlet 13 P.C.B. 23 Anti-Frost Heater
4 Overheat Switch 14 Gas Control Assembly 24 Water Flow Control Device
5 Heat Exchanger 15 Gas Connection 25 Frost Sensing Switch
6 Thermal Fuses 16 Water Filter Assembly 26 Combustion Fan
7 Electrode 17 Water Inlet 27 Igniter
8 Flame Rod 18 Water Flow Sensor 28 Water Connecting Pipe
9 Main Burner 19 Surge Protector 29 Hot Water Connecting Pipe
10
Combustion Chamber Front
Plate Assembly
20 Pressure Relief Valve
30
By-pass Pipe
To Next Page
