Infinity REU-V1616W / REU-V1620W / REU-V2018W / REU-V2020W- 18 - Issue 2 - 21/03/06 ©Rinnai

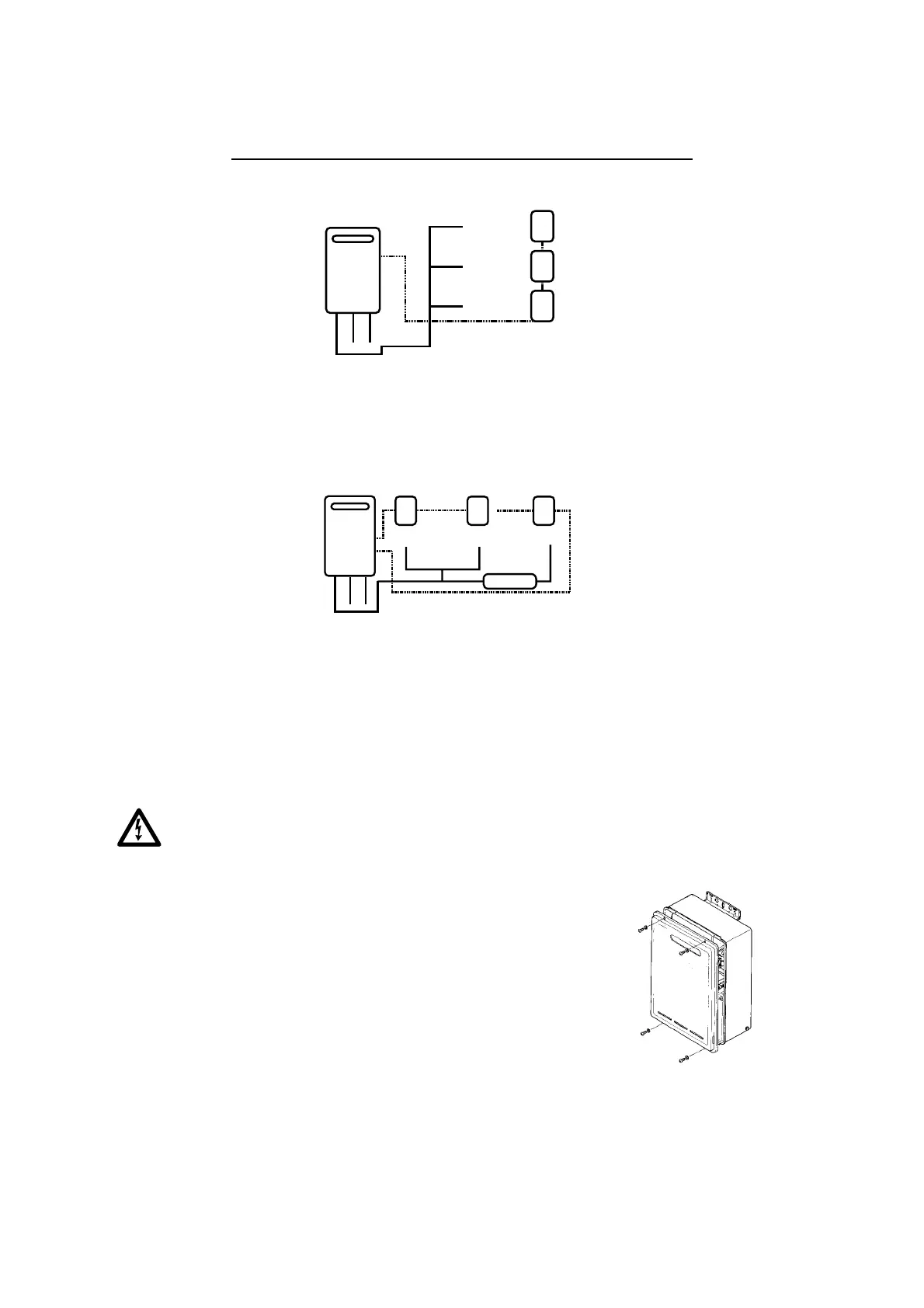

Water Heater and Controller installation configurations
"THIS APPLIANCE DELIVERS WATER
NOT EXCEEDING 50ºC IN ACCORDANCE WITH AS 3498"
If the front cover of the appliance does NOT contain the above text install it in accordance with Diagram 2:
IMPORTANT: If the appliance is to deliver water primarily for the purposes of personal hygiene in an
early childhood centre, primary or secondary school, nursing home or similar facility for young, aged, sick
or disabled persons as defined in AS/NZ3500.4 a Temperature Limiting Device (TLD), such as a
Tempering Valve, may be required even if the appliance is set to 50º C or less. For these types of
applications contact Rinnai.
Connecting remote control cables
Do not attempt to connect the remote control cable terminals to the appliance with the power on.
RISK OF ELECTRICAL SHOCK.
Connecting One or Two Controllers
1. Isolate the power supply
2. Remove the front cover from the Appliance (4 screws) fig. 1.
3. Thread the cable(s) through the cable access hole at the base of the
appliance.
4. Connect the spade connectors to the terminals marked "Remote
Control" on the printed circuit board (fig. 2). Polarity is not
important. Either wire colour can be connected to either terminal.
5. Replace cover of the Appliance. Ensure that the screw with the star
washer is placed at the bottom right hand corner for earthing
purposes.
50º C
KITCHEN
Temperature
controller
(optional)
Temperature
controller
(optional)
Temperature
controller
(optional)
LAUNDRY
BATHROOM
H
O
T
C
O
L
D
G
A
S
Diagram 1. 50
º
C Appliance
KITCHEN
Temperature
controller
(optional)
Temperature
controller
(optional)
LAUNDRY BATHROOM
Temperature
controller
(optional)
TLD
H
O
T
C
O
L
D
G
A
S
Diagram 2. Not a 50º C Appliance
Note: TLD = Tem
p
erature Limitin
g
Device.
fig.1.
