Rinnai REU-VRM3237WC Service Manual

Infinity REU-VR3237WG / HD250e REU-VRM3237WC - 3 - Issue 1 - 19/05/09 ©Rinnai
2. Water Flow Rates and Pressures

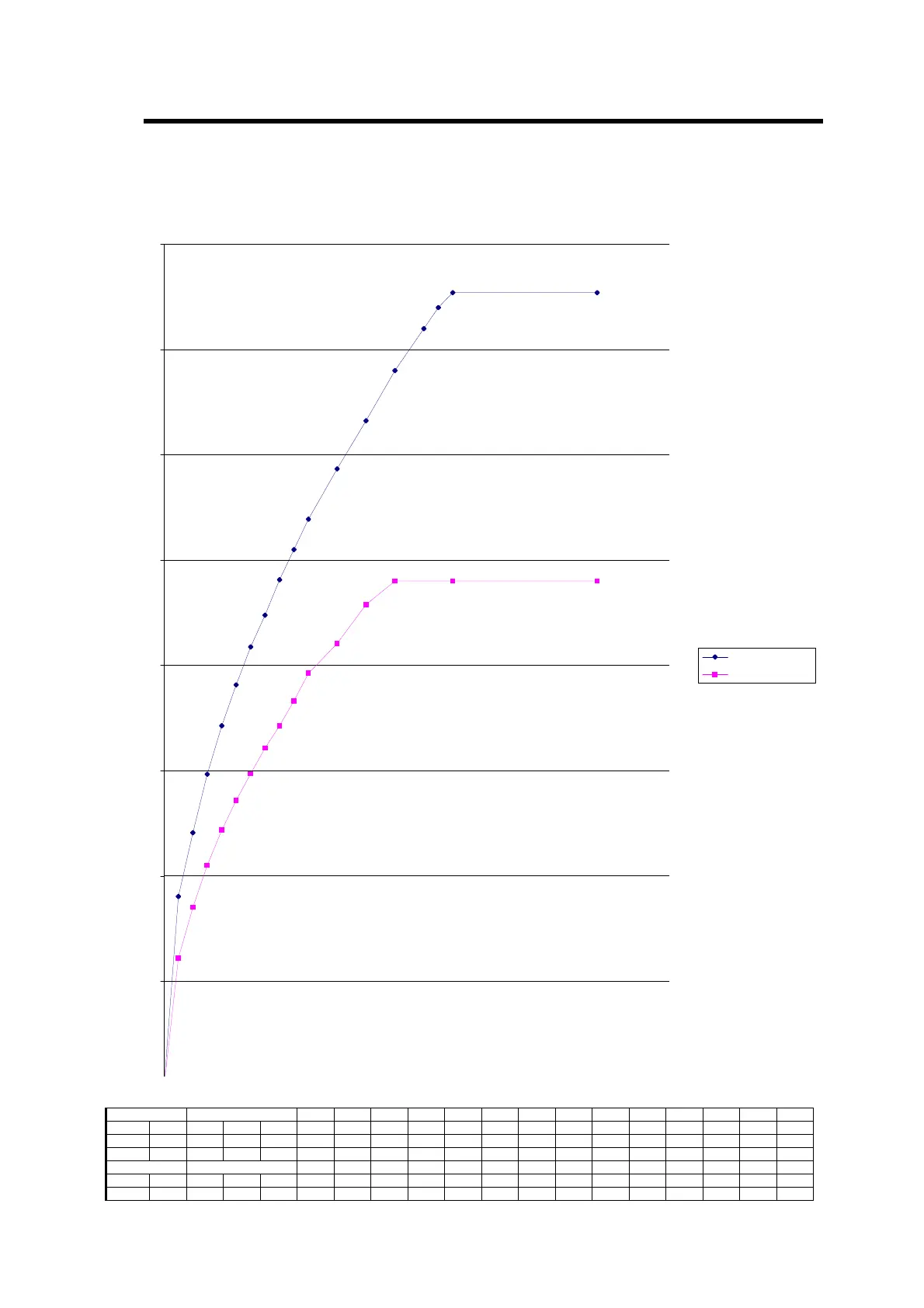

Water flow vs inlet pressure 3237
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
Outlet Flow (litres/minute)
BPS Full Open
BPS Full Close
REU-VM3237W BPS full close
P(kPa) 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 120.0 140.0 160.0 200.0 300.0
Q(L/min) 0.0 6.1 8.5 10.5 12.2 13.6 14.9 16.1 17.1 18.3 19.6 21.0 22.9 24.0 24.0 24.0
REU-VM3237W BPS full open
P(kPa) 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 120.0 140.0 160.0 180.0 190.0 200.0 300.0
Q(L/min) 0.0 9.0 12.1 14.8 17.1 19.1 20.9 22.4 24.1 25.5 26.9 29.3 31.6 34.0 36.0 37.0 37.7 37.7
BPS = Heat Exchanger Bypass Servo

Rinnai REU-VRM3237WC Specifications

General

Brand	Rinnai
Model	REU-VRM3237WC
Category	Water Heater
Language	English
