Rinnai REU-VRM3237WC Service Manual

Infinity REU-VR3237WG / HD250e REU-VRM3237WC - 4 - Issue 1 - 19/05/09 ©Rinnai

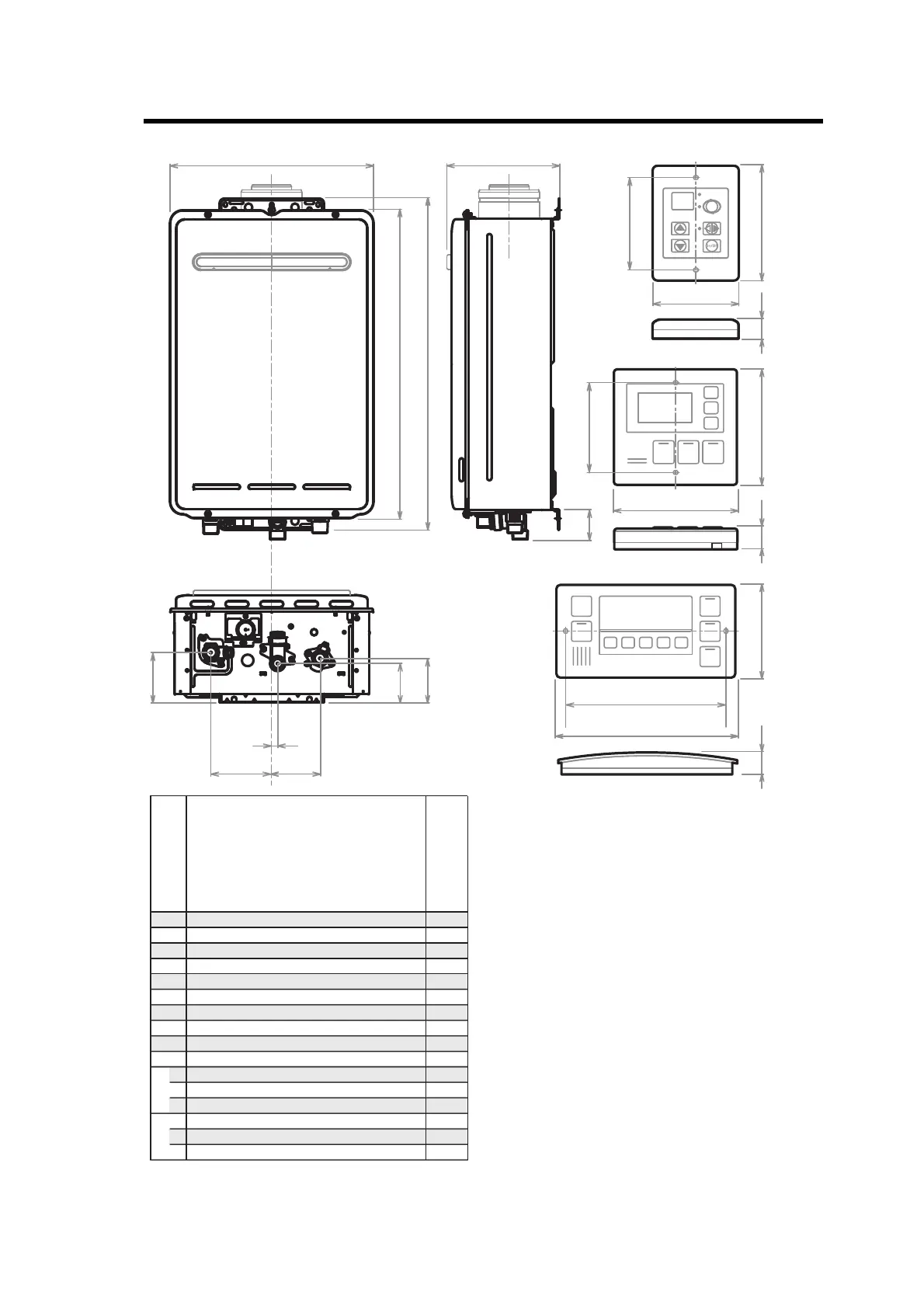

3. Dimensions
Dim' Description
REU-VR3237WG
REU-VRM3237WC
A Width 470
B Depth 244
C Height - Unit 600
D Height - Including Brackets 644
E Hot Water outlet (from wall) 115
F Hot Water outlet (from centre) 61
G Cold Water inlet (from wall) 99
H Cold Water inlet (from centre) 52
I Gas Connection (from wall) 61
J Gas Connection (from centre) 110
Gas: Length (from base) 41
Cold: Length (from base) 51
Hot: Length (from base) 42
Gas: Fitting Diameter 20
Cold: Fitting Diameter 20
Hot: Fitting Diameter 20
K
L
BC-100V
MC-100V
MC-91Q
90
120
83
120104
128
202
202022
181
B
D
C
K
A
E
F
J
H
I
G
L
FITTING
DIAMETER
* Please note that this measurement is to the left of the centre line.
83
