Rinstrum R320 Communications Manual

Communications Manual Rev 3.10 Software Versions 3.xx
003R-618-310 Page 33
9.3. Example
Figure 8 below, demonstrates the use of the streaming registers. In this example,
REG_STREAM_REG1 contains the value 0003
H
. Looking up this index into the list
of registers yields REG_SYSTEM_ERROR. So the 1
st
position in
REG_STREAM_DATA is filled in with the contents of REG_SYSTEM_ERROR.
Similarly, REG_STREAM_REG2 contains 0004
H
, which refers to
REG_ABSOLUTE_MVV. So the 2
nd
position in REG_STREAM_DATA is filled in
with the contents of REG_ABSOLUTE_MVV. The 3
rd
position in
REG_STREAM_DATA is filled in with the contents of
REG_ADC_SAMPLE_NUMBER.

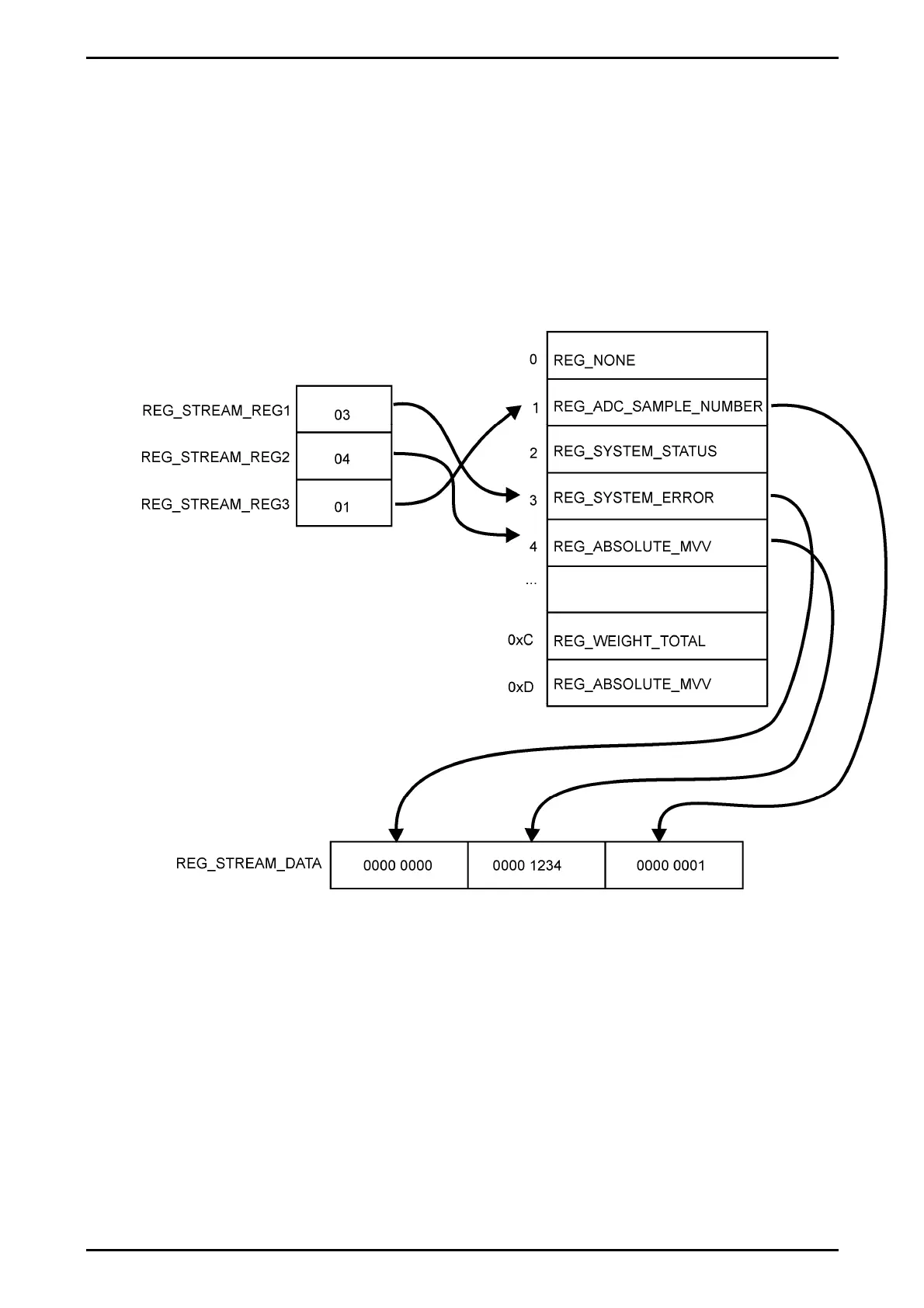

Figure 8: Streaming Registers Example
Read Stream Register
Final
20110040:


Response
81110040:000000000000123400000001
Read Stream Register
Literal
20050040:


Response
81050040:E0000,0.4660,1

Rinstrum R320 Specifications

General

Category	Accessories
Excitation Voltage	5 VDC
Type	Indicator
Display	20 mm high
Power	12-24 V DC
Operating Temperature	-10°C to +50°C
Load Cell Connection	4-wire
Communication Ports	RS-232, RS-485
