Rinstrum R320 Communications Manual

Communications Manual Rev 3.10 Software Versions 3.xx
003R-618-310 Page 7
2.2. RS-232 Connection
2.2.1. RS-232 Communications Settings
The communications settings for RS-232 are configured using the SERIAL:BAUD
and SERIAL:BITS items in the instrument setup menus.
Network: One Instrument to PC (RXD, TXD, GND)

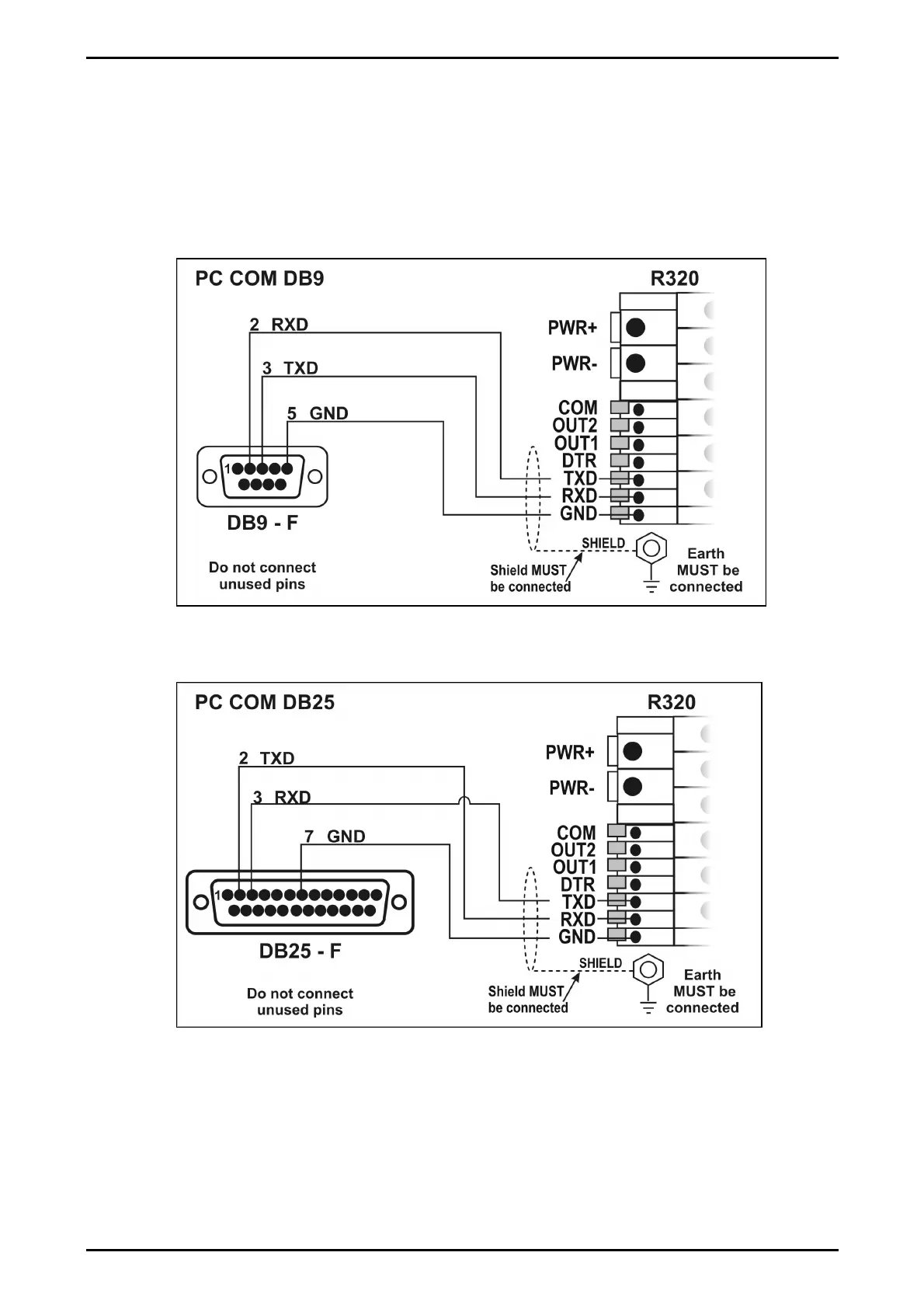

Figure 2: RS-232 -– One Instrument to PC using COM Port (DB9)
Figure 3: RS-232 – One Instrument to PC using COM Port (DB25)

Rinstrum R320 Specifications

General

Category	Accessories
Excitation Voltage	5 VDC
Type	Indicator
Display	20 mm high
Power	12-24 V DC
Operating Temperature	-10°C to +50°C
Load Cell Connection	4-wire
Communication Ports	RS-232, RS-485
