Rinstrum R320 Communications Manual

Communications Manual Rev 3.10 Software Versions 3.xx
003R-618-310 Page 9
Long Ring Network: Multiple Instruments to PC (RXD, TXD, GND)
The Long Ring Network layout can be used in situations where each leg of the
cable run can be up to about 150 m (500 ft) at 9600 baud. If there are
communications errors, lower the baud rate to 4800 or 2400.

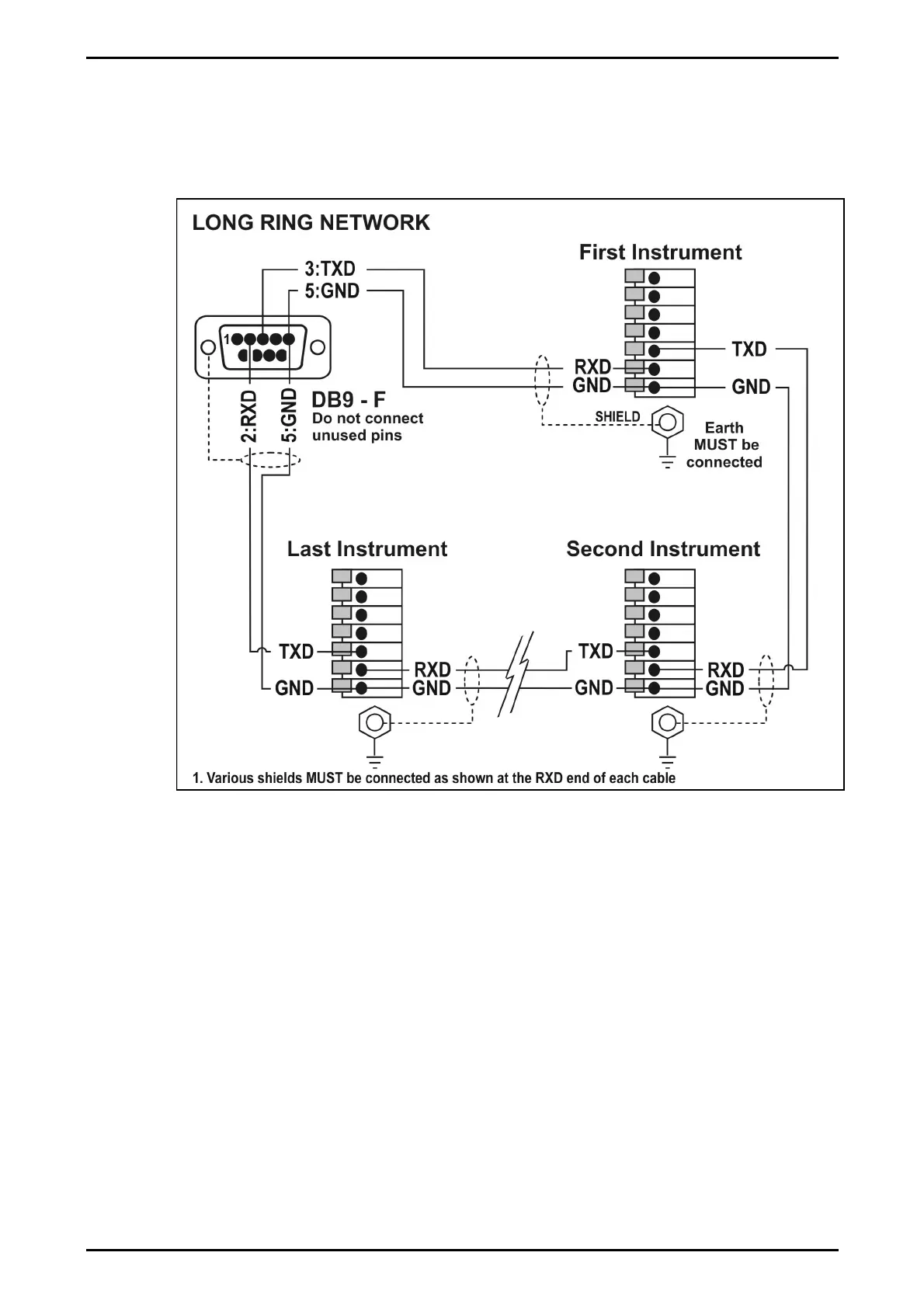

Figure 5: RS-232 Long Cable Runs: Ring Network using COM Port (DB9)

Rinstrum R320 Specifications

General

Category	Accessories
Excitation Voltage	5 VDC
Type	Indicator
Display	20 mm high
Power	12-24 V DC
Operating Temperature	-10°C to +50°C
Load Cell Connection	4-wire
Communication Ports	RS-232, RS-485
