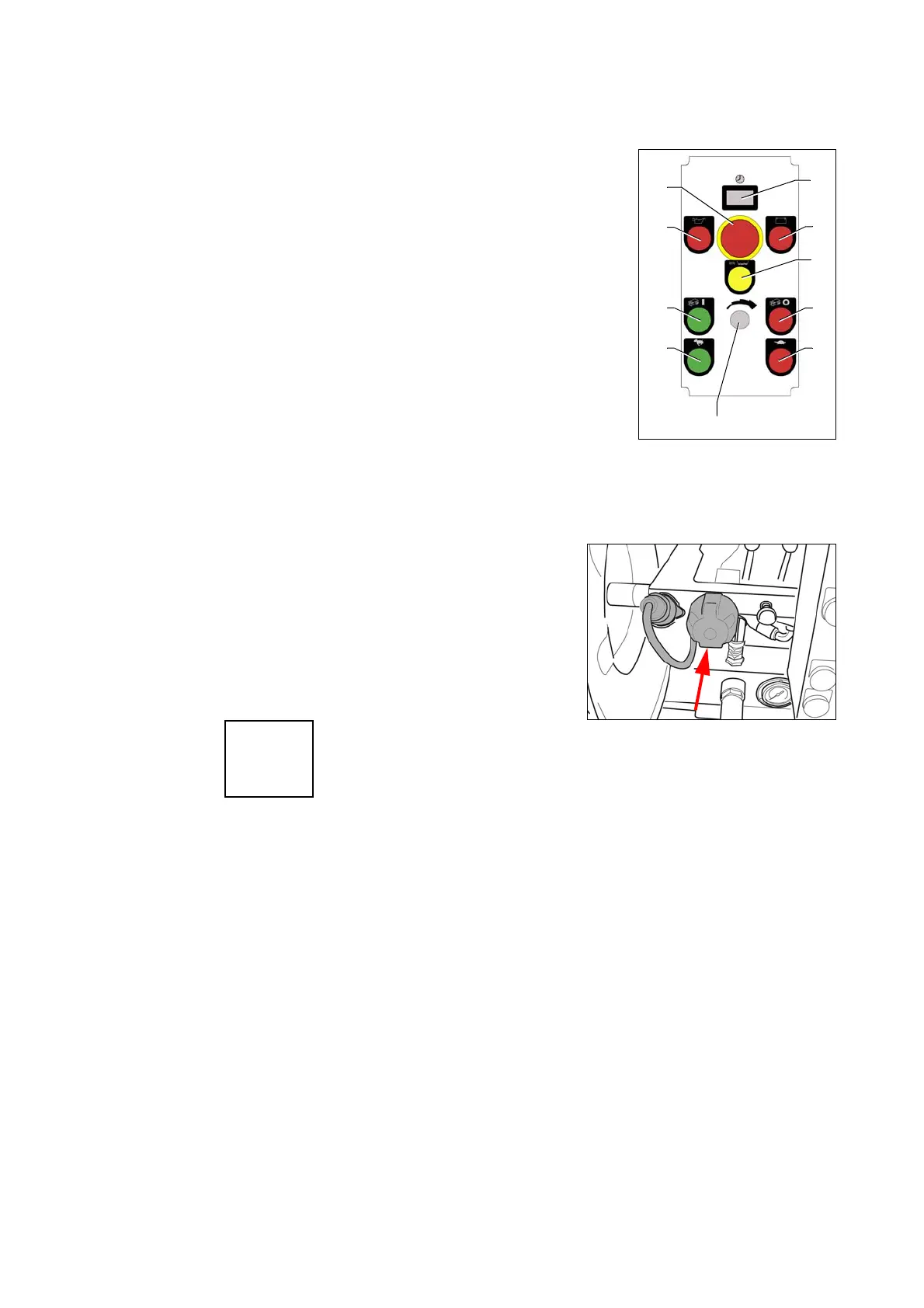

5.4 Control box
A Emergency stop
BOil pressure
CHP open / Start spraying
D Throttle open
E Hour counter
FCharging
GRun dry protection
H HP close / Stop spraying
I Throttle close
J Ignition key
5.5 Radio remote control
1. Put the 7-pins plug into the socket.
Attention!
When the 7-pin plug is into the connector, the functions of
the control box will fall off. Nevertheless remains the
emergency stop switch working.
5.6 Before starting
1. Check the oil level in the engine (15), oil reservoir (option) and high-
pressure pump (16) using the dipsticks. Add oil, if necessary.
2. Add fuel in the fuel tank (22).
3. Check whether the water filter (12) is clean. Clean the filter, if neces-
sary; see “Maintenance”.
4. Check whether the high-pressure valve (7) on the reel is closed.
5. Check whether the supply valve (13) to the water filter (12) has been
opened.
6. Fill the water tank.
This can be done in several ways:
a Via the supply hose (5).
Unlock the supply reel and couple the end of the supply hose onto
a water tap. Open the water tap and the supply valve.
b Manually:
The water tank (3) can be filled with water via the manhole on
the water tank.
