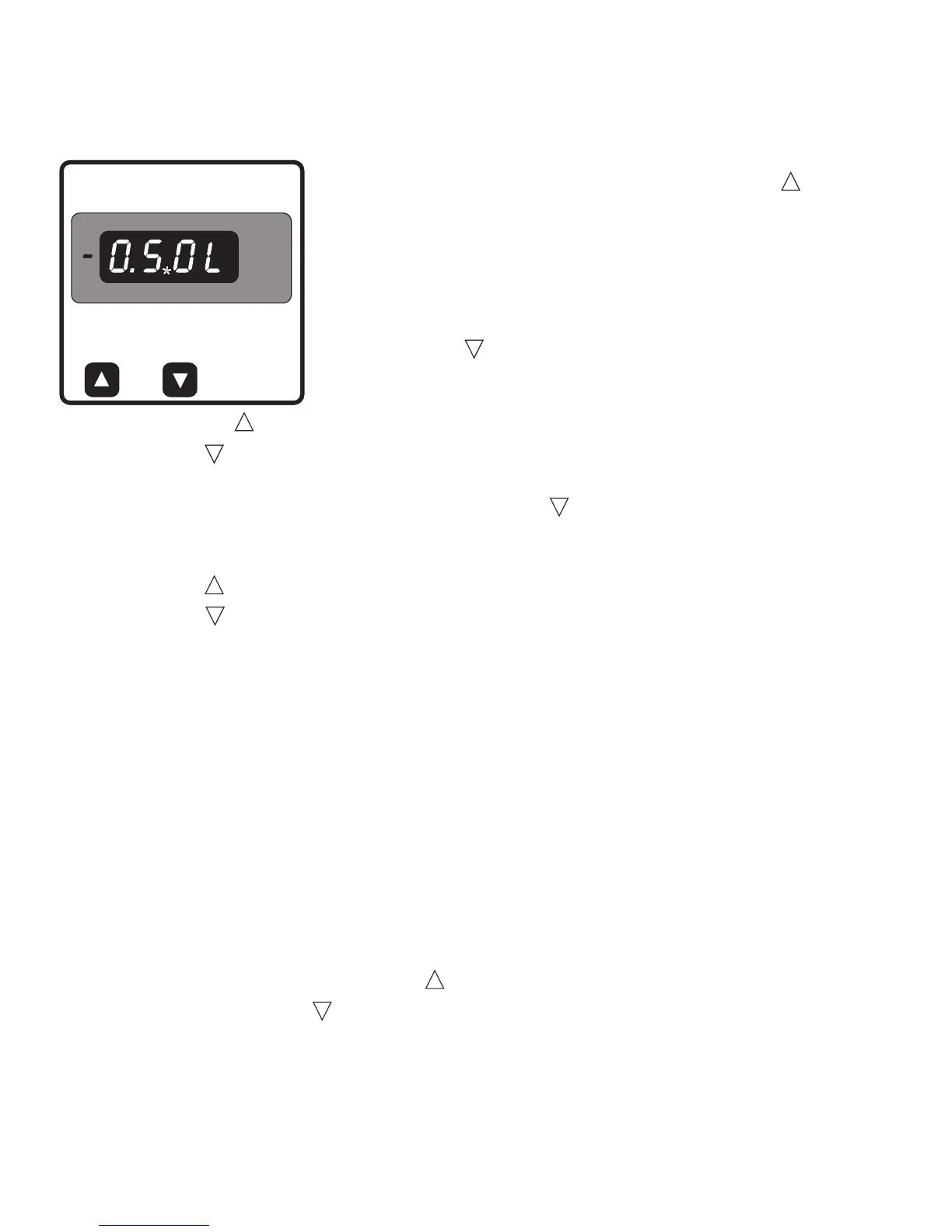

After entering the edit mode, by pressing the “ ” key
user can turn the ‘-’ symbol On or Off. If ‘-’ symbol is On
then PF End value will be set as negative else it will be
positive. ‘L’ (inductive) or ‘C’ (capacitive) are automatically
displayed depending on the quadrant in which value is
being set.
Pressing the “ ” key will set the ‘-’ symbol and digit
editing will start.
By pressing the “ ” key user can scroll the value between 0 and 1.
Pressing the “ ” key will set the first digit and advance the operation to next digit.
Similarly, user can edit the remaining two digits from 0 to 9 if first digit is 0.
After all three digits have been set, pressing the “ ” key will advance to the PF
End value confirmation mode.
Pressing the “ ” key will re-enter into the End value edit mode.
Pressing the “ ” key will confirm the set value and advance to PF Start value
selection (section 3.1.3.3).
NOTE: The decimal point position will remain fixed after the first digit, both in setup
and in the measurement screen.
3.1.3.3 PF Start Value (PF-S)
This screen allows the user to set the PF Start value which will correspond to the
Input Start value.
The Start value can be set from -1 to +1 (quadrants 3 & 4). Refer the Phasor diagram.
If the End value is -1 or +1, then the Start value will get restricted to -0.98 or +0.98
respectively.
Initially, ‘PF-S’ message is displayed on screen following which user can start editing
Display Start value by pressing the “ ” key.
Instead on pressing the “ ” key will confirm the present value and exit the Setup
menu to return to measurement mode.
14
