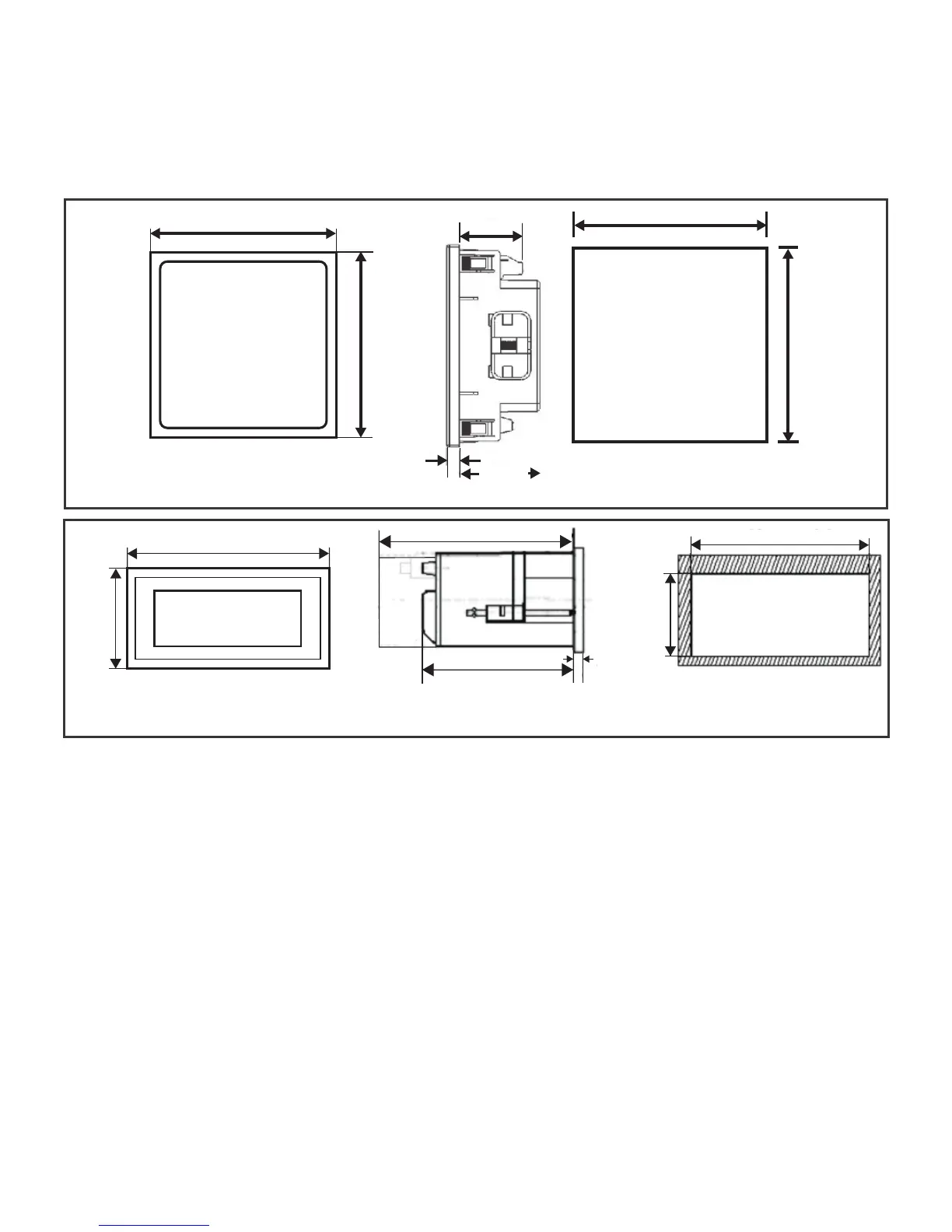

4.2 Case Dimensions and Panel Cut Out
92mm+0.8
92mm+0.8
Panel Cutout
Front Display
Area
96mm
96 mm
27 mm
6 mm
35 mm
MAX PANEL THICKNESS 0.18”,5mm
4.3 Wiring
Input connections are made directly to screw-type terminals with indirect wire
pressure. Numbering is clearly marked on the connector. Choice of cable should meet
2
local regulations. Terminal for inputs will accept up to 4mm (12 AWG) or
2
2.5mm (12AWG) Standard.
Note : 1) It is recommended to use wire with lug for connection with meter.
2) For disconnecting the device a switch or circuit-breaker shall be included
at the site and shall be within easy reach of the operator. The specification
are as below.
For Aux. = At least 1.5 times of applied Power supply.
For Measuring Input = At least 1.5 times of applied measuring inputs.
For 48 x 96 mm
96.0mm
48.0mm
Display Area
For 96 x 96 mm
45mm+0.8
92mm+0.8
58.1mm
5mm
66.6mm
Mounting Position Installation Cutout
19
