As the front of the enclosure conforms to
IP 50. additional protection to the panel
may be obtained by the use of an optional
panel gasket. The terminals at the rear
of the product should be protected from
liquids.
The meter should be mounted in a
reasonably stable ambient temperature
and where the operating temperature is
0
within the range -10 to 55 C . Vibration
should be kept to a minimum and the
product should not be mounted where it
will be subjected to excessive direct
sunlight.
Easy Clip
-
in
mounting
Swivel screw
4. Installation

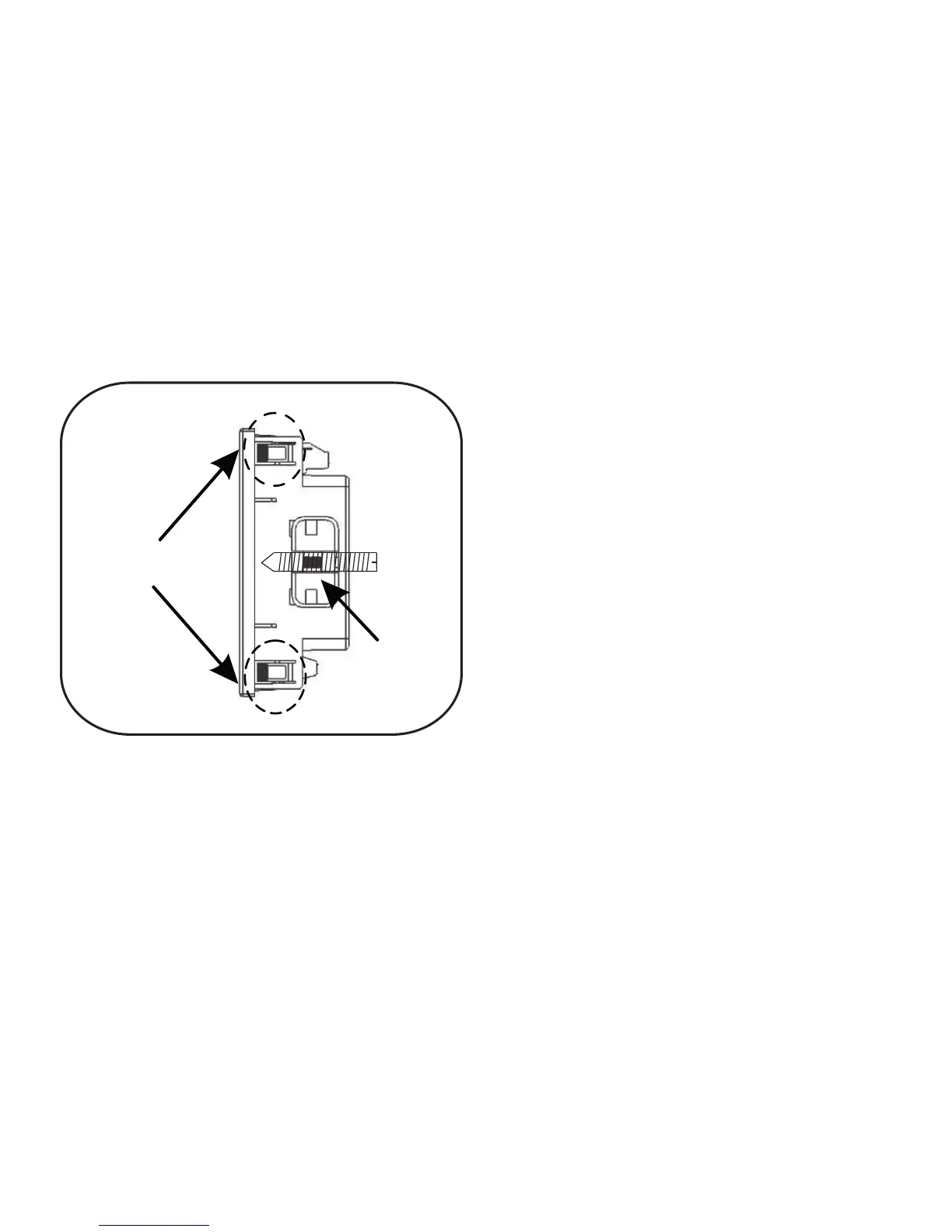

Mounting of EINE+ is featured with easy “Clip- in” mounting. Push the meter in panel
slot (size 92 x92 mm), it will click fit into panel with the four integral retention clips on
two sides of meter.
If required Additional support is provided with swivel screws (optional) as shown in
figure.
