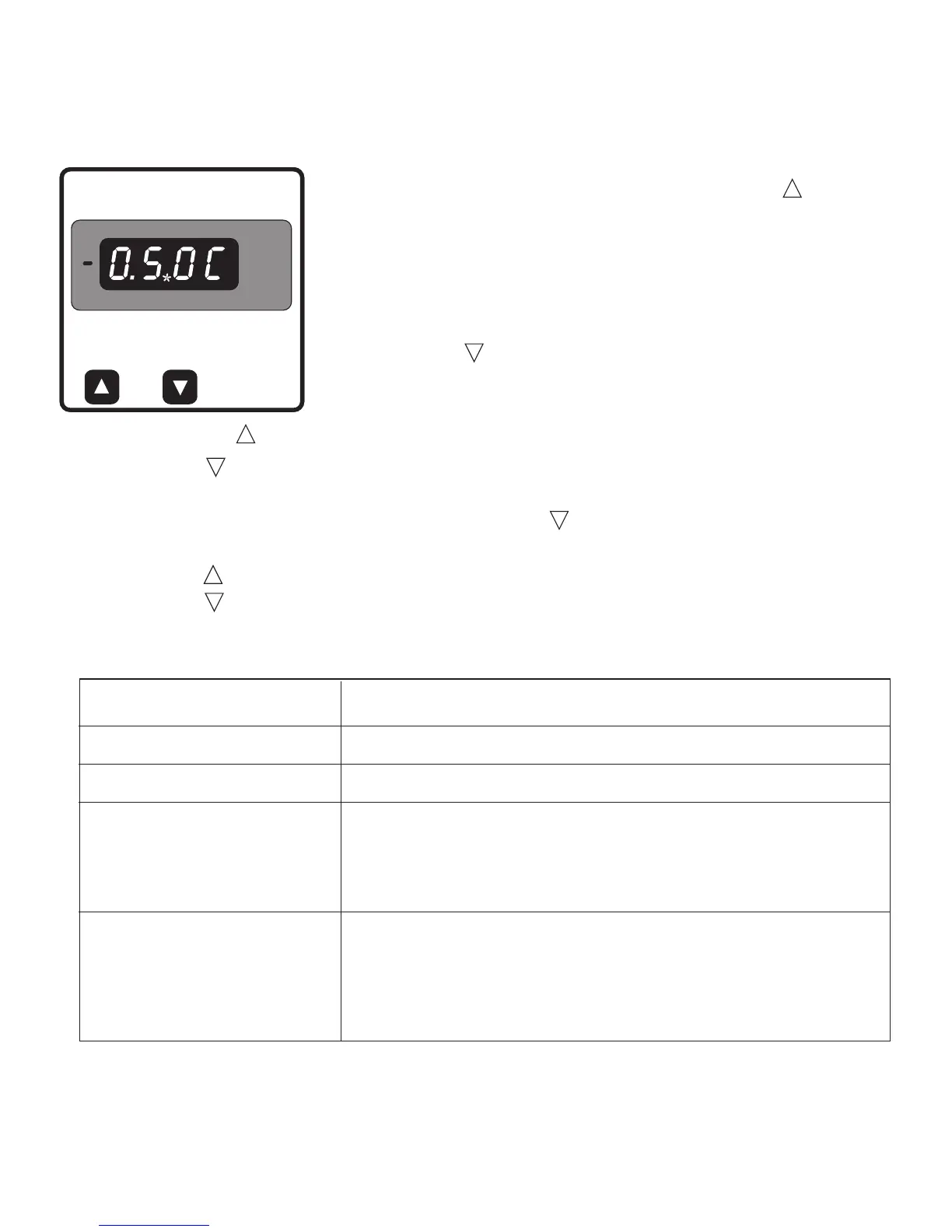

After entering the edit mode, by pressing the “ ” key
user can turn the ‘-’ symbol On or Off. If ‘-’ symbol is On
then PF Start value will be set as negative else it will be
positive. ‘L’ (inductive) or ‘C’ (capacitive) are automatically
displayed depending on the quadrant in which value is
being set.
Pressing the “ ” key will set the ‘-’ symbol and digit
editing will start.
By pressing the “ ” key user can scroll the value between 0 and 1.
Pressing the “ ” key will set the first digit and advance the operation to next digit.
Similarly, user can edit the remaining two digits from 0 to 9 if first digit is 0.
After all three digits have been set, pressing the “ ” key will advance to the PF
Start value confirmation mode.
Pressing the “ ” key will re-enter into the Start value edit mode.
Pressing the “ ” key will confirm the set value and exit the Setup menu to return to
measurement mode.
3.2 Other Display Indications
-oL-
Indication
– – – –
Overload indication above 125% input
Description
When display count exceeds 9999
–ve reading
For 4-20mA range, if meter setting is as follows:
input start value = 04.00, display end value = 20.00 &
display start value = 00.00, then if input falls below 4mA
or input gets disconnected, then meter will show
negative reading
If negative input is given to 500/1000 V meter (for eg. due
to wrong connection) , it will display value same as that
displayed for no input value(according to input start,
display start and display end values set by user).
0 reading
