This screen is used to edit and set the system type. System type ”3” for 3
phase 3 wire & “4” for 3 phase 4 wire & 1 for Single phase system.
Pressing “UP” key accepts present value and advances to the “Potential
transformer Primary Value Edit” menu.
Pressing “DOWN” Key will enter the System type edit mode.

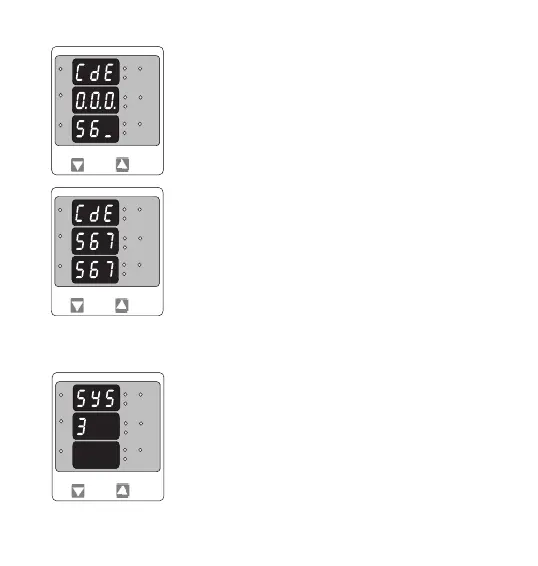

New / Change Password, second digit entered, prompting for third digit.
(*decimal point indicates that this will be ashing).
Pressing the “DOWN” key will scroll the value of the third from 0 through
to 9, the value will wrap from 9 round to 0.
Pressing the “UP” key to advance the operation to “New Password
Conrmed” and sets the third digit, in this case to “7”.
New Password conrmed.
Pressing the “DOWN” key will return to the “New/Change Password”.
Pressing the “UP” key will advances to the Set up screen.(see section
3.2).
L3-L1
L2-L3
Hz
x1000
L1-L2
Volt
x1000
L3
L1
L2
A
x1000
3.2 Set Up Screens
3.2.1. System Type
*
L3-L1
L2-L3
Hz
x1000
L1-L2
Volt
x1000
L3
L1
L2
A
x1000
L3-L1
L2-L3
Hz
x1000
L1-L2
Volt
x1000
L3
L1
L2
A
x1000
8

Rish OPTIMA VAF Specifications
