FASTRAX
™

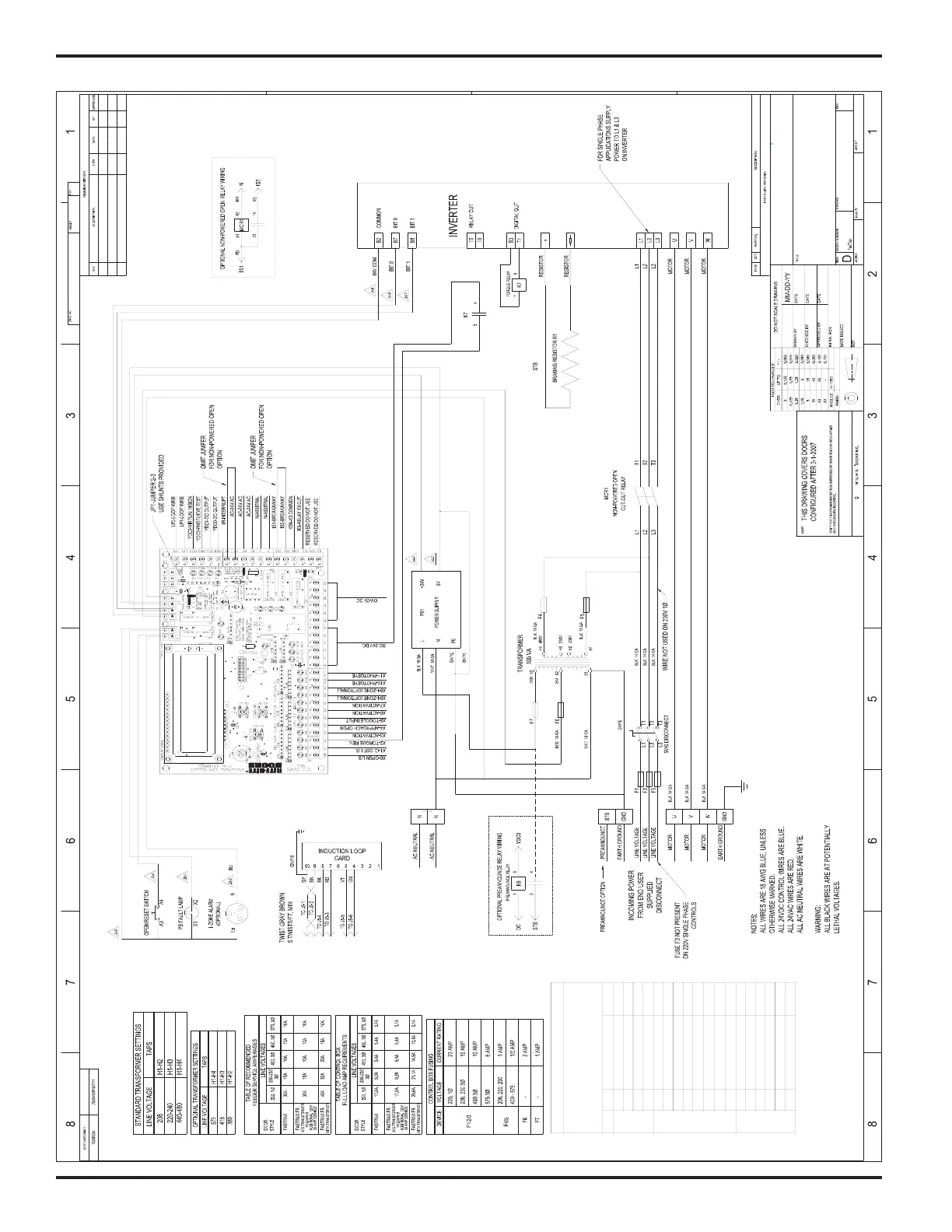

INVERTER ELECTRICAL WIRING DIAGRAM
CONNECTOR TABLE
THIS TABLE SHOWS THE FUNCTION OF EACH OF
THE CONNECTORS ON THE UNIVERSAL
CONTROLLER. THE VOLTAGES LISTED FOR EACH
PIN ASSUME THAT EITHER THE INPUT OR OUTPUT
IS ACTIVATED.
CONN. PIN # FUNCTION VOLTAGE
J3
1 FLASHING LAMP OUT 0 VDC
2 I-ZONE ALARM 3 DC POWER OUT 24 VDC 4
RESET INPUT (X12) 24 VDC
J4
1 UNUSED
2 DC COMMON INPUT 0 VDC 3 DC POWER INPUT 24 VDC 4 24V AC INPUT 24 VAC 5 24V AC COMMON (N) 24 VAC 6 INVERTER COMMON 24 VDC 7
INVERTER OUTPUT (K1) 24 VDC
8 INVERTER OUTPUT (K0) 24 VDC
J5
1 LOOP INPUT 2
2 LOOP INPUT 1 3 DC POWER OUT 24 VDC 4 DC COMMON OUT 24 VDC 5
DC POWER OUT
24 VDC
6
LOOP INPUT (X13) 24 VDC
