FASTRAX
™

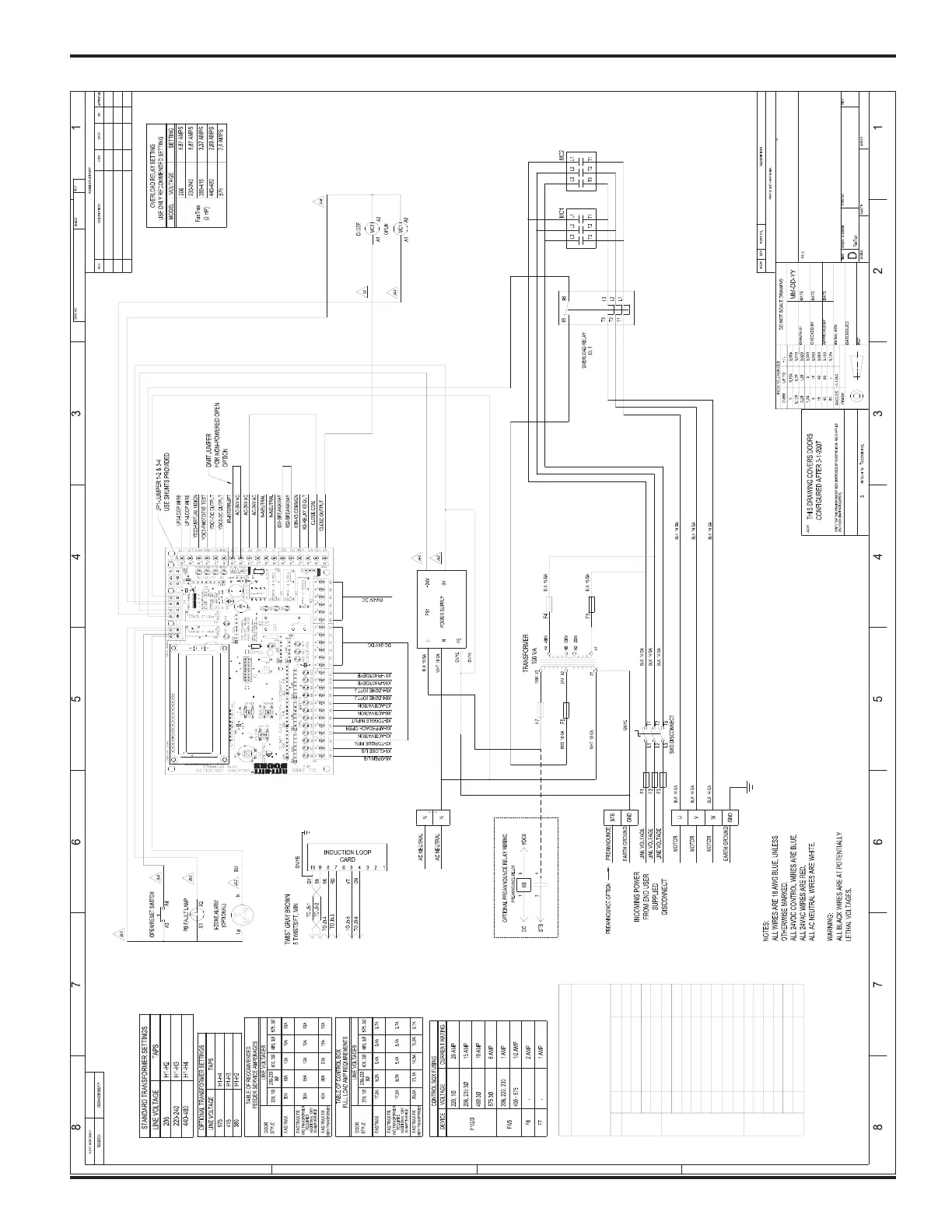

SINGLE SPEED ELECTRICAL WIRING DIAGRAM
CONNECTOR TABLE
THIS TABLE SHOWS THE FUNCTION OF EACH OF
THE CONNECTORS ON THE UNIVERSAL
CONTROLLER. THE VOLTAGES LISTED FOR EACH
PIN ASSUME THAT EITHER THE INPUT OR OUTPUT
IS ACTIVATED.
CONN. PIN # FUNCTION VOLTAGE
J3
1 FLASHING LAMP OUT 0 VDC 2 I-ZONE ALARM 3 DC POWER OUT 24 VDC 4 RESET INPUT (X12) 24 VDC
J4
1 UNUSED 2 DC COMMON INPUT 0 VDC 3 DC POWER INPUT 24 VDC 4 24V AC INPUT 24 VAC
5
24V AC COMMON (N) 24 VAC
6
OPEN/CLOSE COMMON 24 VDC
7 UNUSED -
8 OPEN OUTPUT (K0) 24 VAC
J5
1 LOOP INPUT 2 2
LOOP INPUT 1
3 DC POWER OUT 24 VDC 4 DC COMMON OUT 24 VDC
5 DC POWER OUT 24 VDC
6 LOOP INPUT (X13) 24 VDC
7822E007
7822E007
RITE-HITE DOORS INC.
9"=1'
B
B
WIRING DIAGRAM, SINGLE SPEED
1744.XXXX
RPB
2/1/2007
5288 3/9/2007
2007
A
ADD 575 & 400 FLA
5328 5/8/2006 RPB
B ADD 2ND BLOWER OPT. INC. FLA 5476 8/31/2007 RPB
N/A
PRIOR
0 VDC
FINAL ASSEMBLY
