PG 7
PG 8
Please refer back to these guidelines for safe and secure wire connections.
•
Take care not to damage the labels for each wire in handling.
•
Strip insulation 3/8 in. (9.5mm) from wire ends.
•
Connect labeled wires only to a terminal with corresponding letter.
•

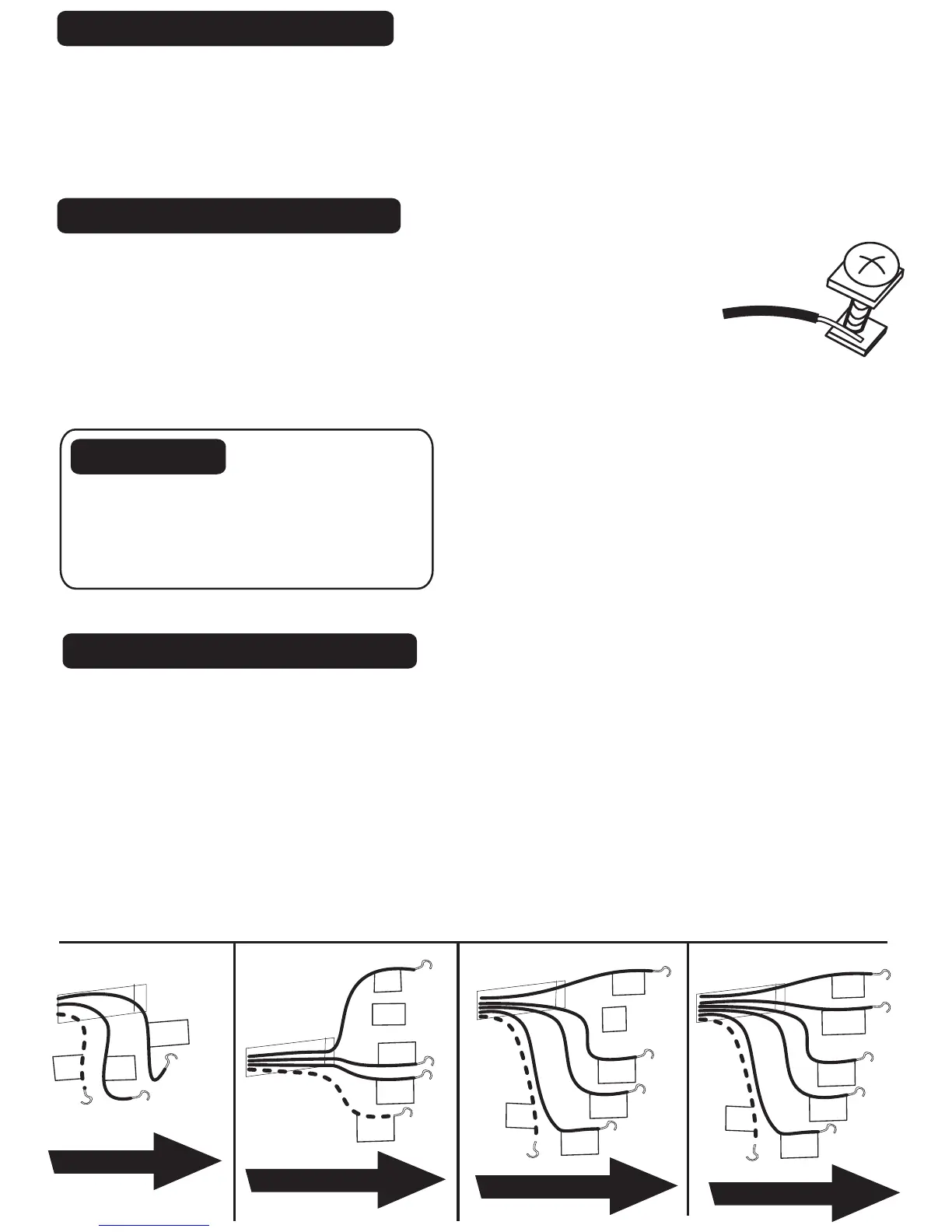

Bend the wire slightly, insert the wire under the contact plate and tighten
the screw down onto the wire.
The Wire Label List shows wire
labels used on Ritetemp thermostats.
Please determine what wires you
have and select the correct wiring
diagram to "go to" on pages 8-9.
If you have a HEAT PUMP select a
wiring diagram on pg 9.
If you have a Humidifier select a
diagram on pg9.
Before you Connect Wires
Caution
Do not allow
wires to touch
each other or parts on unit.
Wires must be routed through
the hole in the back plate, below
the terminal block, or they will
hit parts on the cover.
Make sure your wires are labeled. This is necessary to determine which step-by-step
wiring diagram you should use. This may require you to find the 'other end' connection for
each wire on your heating or air conditioning equipment and read the label there.
If you have a Zoned Heating/Cooling system with multiple thermostats, please refer to our
website at www.ritetemp-thermostats.com for installation notes or call 1-888-515-2585.
8 Wire Connections
What Wires Do You Have?
RH
G
Y
W
C
From
Furnace
And AC unit
R
or
RC
G
Y
W
C
From
Furnace
And AC unit
RH
Go To Page 13
Go To Page 14
WIRE LABEL LIST
R - Single source power for heat/cool (R connected to
RC and RH using the jumper wire)
RH or R - Heating Power
RC - Cooling Power
W - Heating return
G - Fan return
Y - Compressor return
H - Humidifier (built into the furnace)
W2 -
2nd stage heat in NORMAL, auxiliary heat in PUMP mode.
A - For 3 wire zoned heating systems
C - AC power for the thermostat if available.
Required for Remote Control operation
O - Damper control (Zoned heating) or heat pump
changeover valve (powered in COOL)
B - Damper control (Zoned heating) or heat pump
changeover valve (powered in HEAT)
NOTE: Do not
connect both O and B on a heat pump. Connect O to
O & tape off B.
X - Tape off X
E - Tape off E
W
RH
R
or
From
Furnace
Go To Page 11
C
Go To Page 12
R
or
RH
W
C
From
Furnace
G
To Next Page
