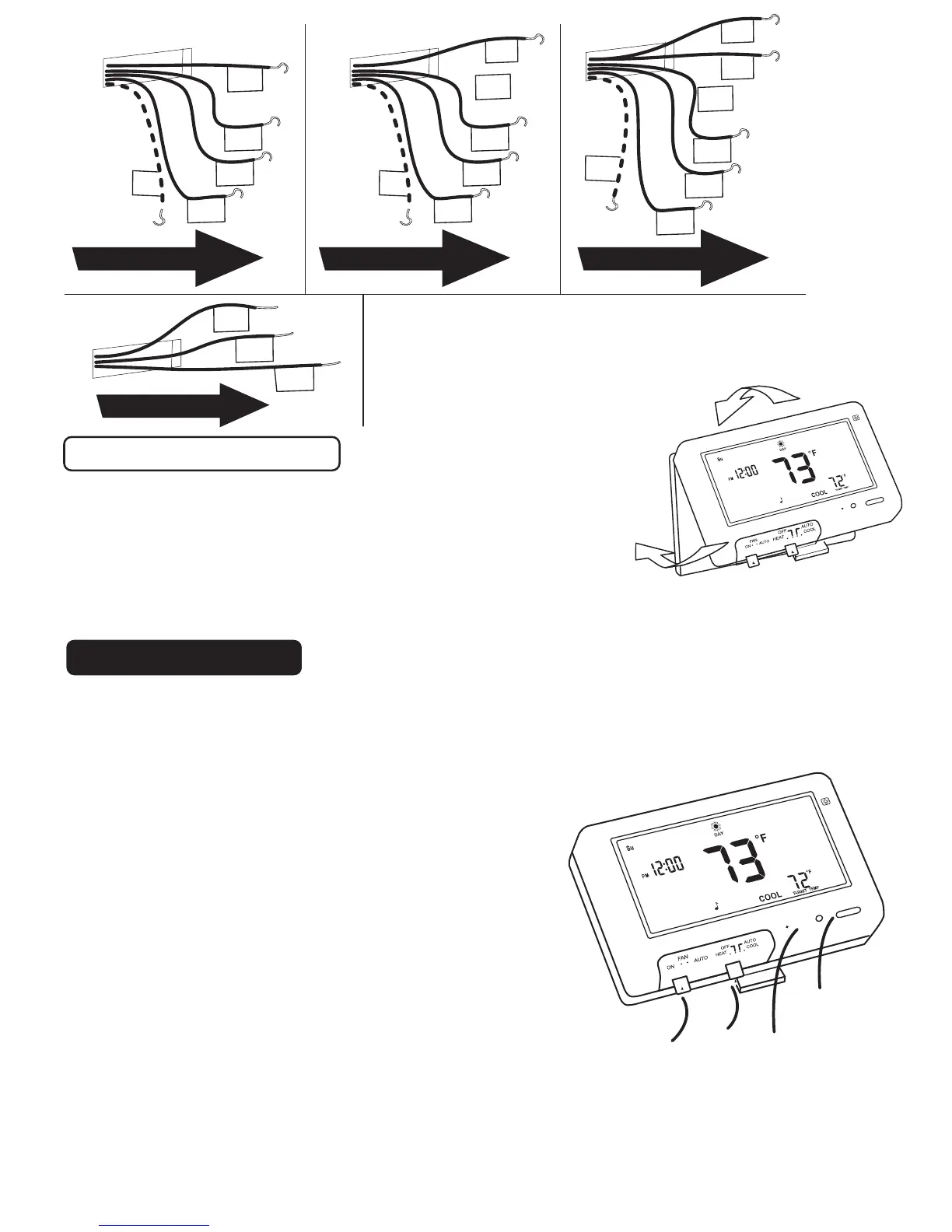

8 Wire Connections cont
When you have finished connecting the wires, close
cover and attach control unit to wall unit. Hook the
top of the body onto the base, swing the body down,
and snap the body onto the base.
If you do not find the wiring
information for your system try
our webiste for more
information.
9 Check Unit
Follow these procedures to verify you have correctly
installed the unit.
To check HEAT mode:
• Set the mode switch to HEAT. Set the fan switch AUTO.
• Touch the main temperature display then touch the TEMP UP arrow
to raise the set point to 90
o
. Touch HOME. Wait 5 min.
• Verify that heat is blowing from the system.
To check COOL mode:
• Set the mode switch to COOL.
• Touch the main temperature display then
touch the TEMP DOWN arrow to 5
o
below the
room temperature. 
• Touch HOME. Wait 5 min.
• Verify that cool air is blowing from the system.
To check Fan: (If you connected the G wire)
• Switch Mode to OFF during fan test.
• Switch the FAN switch to the ON position. Verify air is blowing from vents. 
• After test, return to Fan switch to AUTO, and Mode to HEAT or COOL
Congratulations, you have successfully installed your unit. Please proceed
to the OPERATING Guide to initialize the new thermostat.
REMEMBER, Mode Switch must be in HEAT or COOL to operate.
PG 9
PG 10
R
E
S
E
T
ME
N
U
PRO
G
RAM
Mode
Switch
Fan
Switch
MENU
button
PROGRAM
button
W
G
W2
R
C
Fro
m No
rmal
two sta
ge
sy
ste
m
W
RH
H
Hu
midifier
w/ a
ny
Hea
ter
Go To Page 15
B
G
Y
R
C
Fro
m he
at p
ump
w/o Aux h
ea
t
O
or
Go To Page 16
Go To Page 18
B
G
Y
R
C
Fro
m he
at p
ump
w
i
th
Aux he
at
O
or
W or W2
Go To Page 17
