Rittal RIMATRIX5 PMC12 User Manual

UPS Functional Descriptions
UPS-Manual
10
EN

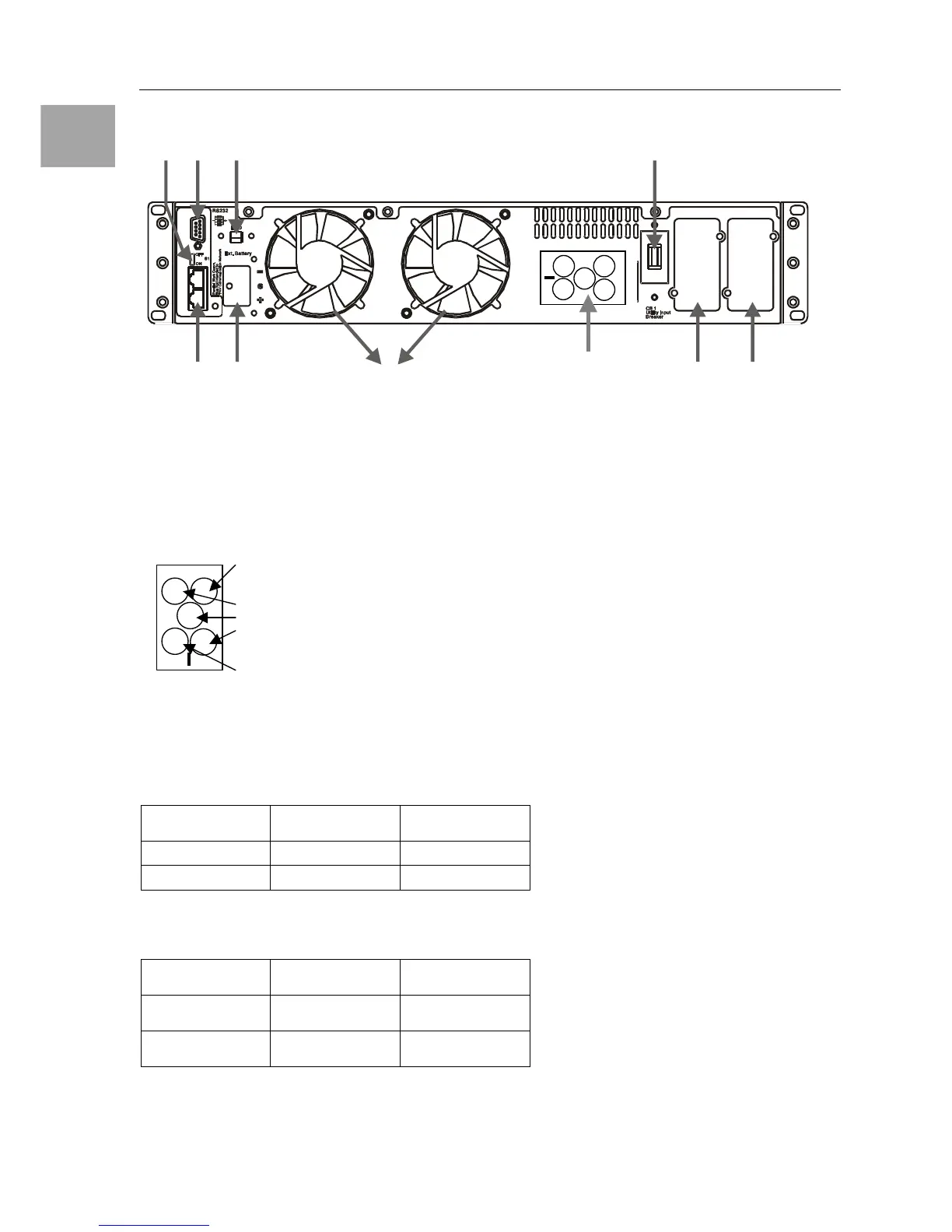

3.2. Rear Panel Descriptions
A Terminal Resistor for Parallel function
B RS232 Port
C EPO Port
D Utility Input Breaker
E CAN Bus Connection Port for Parallel
System
F External Battery Connector
G Cooling Fan
H Utility Input &UPS Output Power Connector
I Customer Options Slot
J Slot
3.2.1. UPS input and output
3.2.2. Battery input
Model Maximum
Current
Conductor
Section
4,5 kVA 24 A 4 mm²
6 kVA 32 A 4 mm²
Model Maximum
Current
Conductor
Section
4,5 kVA 25 A
AWG #10,
6 mm²
6 kVA 25 A
AWG #10,
6 mm²
B A
C
D
G
I
E F
H
J
1 L in
2 N in
PE
3 L out
4 N out
