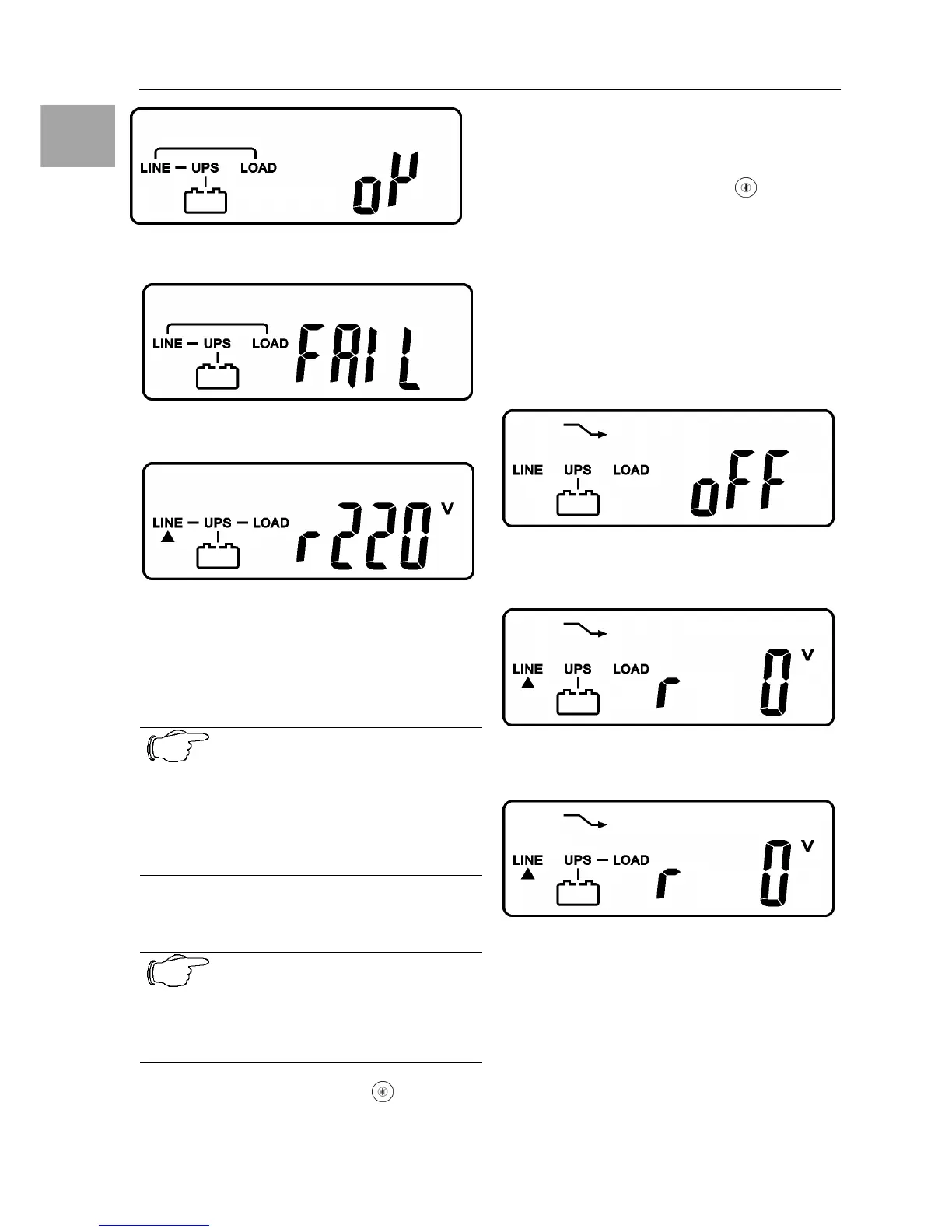

Fig. E1: It shows “OK” in self-test
Fig. E2: It shows “Fail” in self-test
Fig. F: It shows “220Vac” in Utility Input
In case of failure in self-test, the LCD display
will illustrate from Fig. D to Fig. E2, then an
error code or error status will be shown on
the screen.
Note!
Your start-up operation of the UPS
is completed. Make sure the UPS
is plugged onto the wall receptacle
for charging at least 8 hours and
the batteries of the UPS are fully
charged.
5.2. Start-up in Battery Mode (Cold
Start)
Note!
Make sure the UPS you have has
already been installed with at least
1 set(20pcs) of 12V/7AH or
12V/5AH batteries.
• Push the UPS On Switch
once for
approx. 5 seconds to awake the UPS,
and then the buzzer sounds twice. The
LCD display will illustrate from Fig. A to
Fig. G, and keep awake for approx. 15
seconds.
• Press the UPS On Switch
of the UPS
again for about 3 seconds till the LCD
display illustrates from Fig. G to Fig. H,
then the UPS will be in self-test Mode.
The UPS may offer energy to the output
in a minute, and the LCD display
illustrates as Fig. I. In case of failure in
pushing the UPS On Switch in 10
seconds, the UPS will automatically turn
off. You then have to go through step in
this chapter once again.
Fig. G: It shows “Off”, which means the UPS
pre-start is successful
Fig. H: It shows Utility input is “0” and Utility
Abnormal
Fig. I
To Next Page
