4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
TX30
F
2 3
6 7
5 8
5 8
6 7
1 4
2 3
1 4
6.1 7
5
6.2 8
5 x 12
M
A
= 5 NmM
A
= 5 Nm
F
F
F
F
F
5 x 12

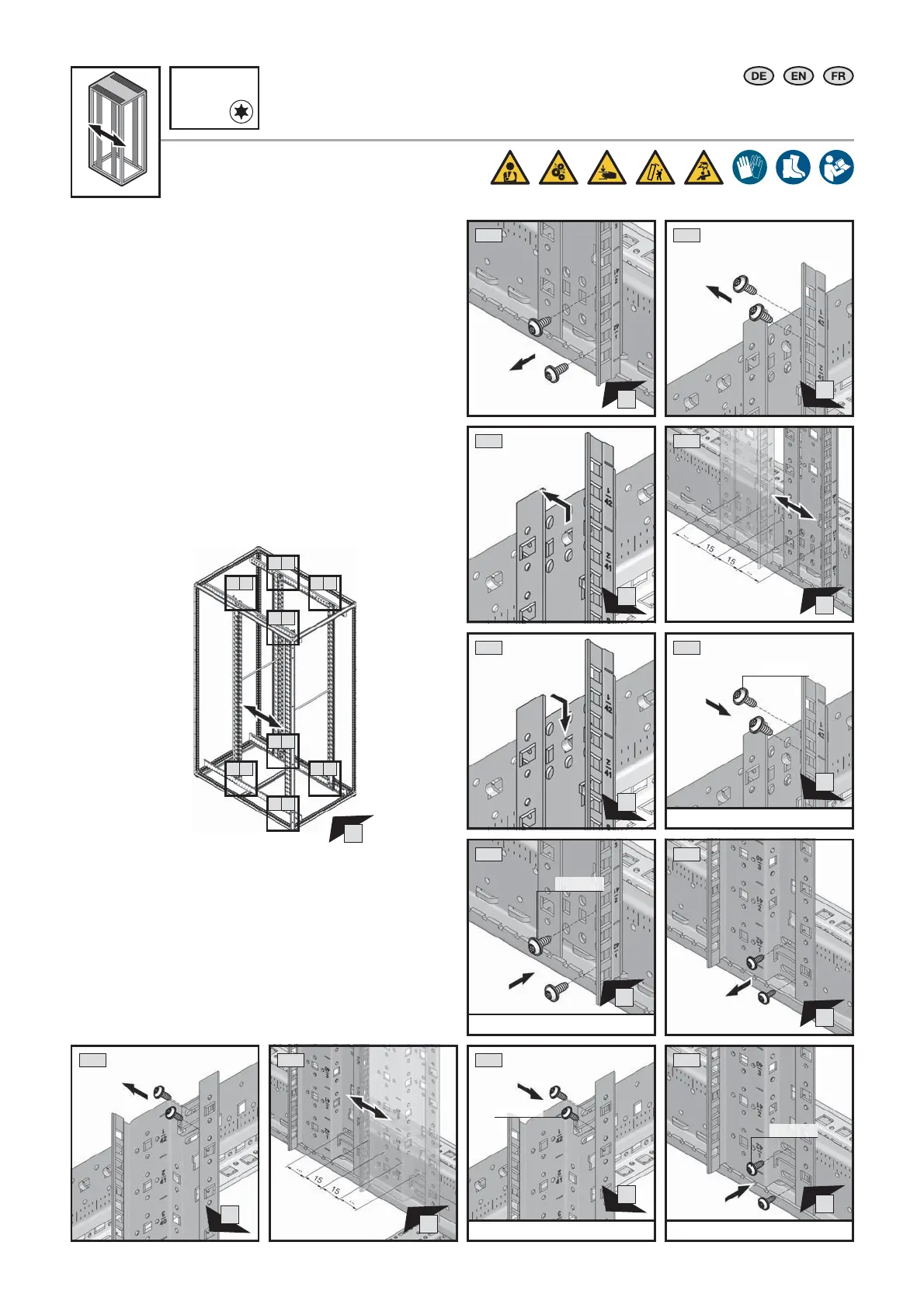

Tiefenverstellung der 19˝-Ebene,
Rackbreite 800 mm, Racktiefe 1000/1200 mm
Depth adjustment of the 482.6 mm (19˝) level,
rack width 800 mm, rack depth 1000/1200 mm
Réglage en profondeur du plan 19˝,
largeur de baie 800 mm, profondeur de baie 1000/1200 mm
4.3.8 Aufstellung vorbereiten
4.3.8 Preparing for installation
4.3.8 Préparer la mise en place
Profi lschienen system standard
Mounting angle system, standard
Montants « standard »
1
2.32.2
2.4
2.1
F
F
4
M
A
= 5 Nm
5 x 12
F
F
F
F
5 x 12
3
M
A
= 5 Nm
F
