3. SETTING FOR COMMUNICATION
IMCB03-E3
14
2. Here, as an interval time of 250 ms needs to be set, calculate the interval time set value using the
equation (See P. 13).
Interval time set value:
250 ms # 1.666 ms 150 (Round to the nearest whole number.)
Interval time:
150 " 1.666 ms 249.9 (Approx. 250 ms)
Thus, enter an interval time set value of 150 calculated from the above by pressing the UP or
DOWN key at the front of the controller.

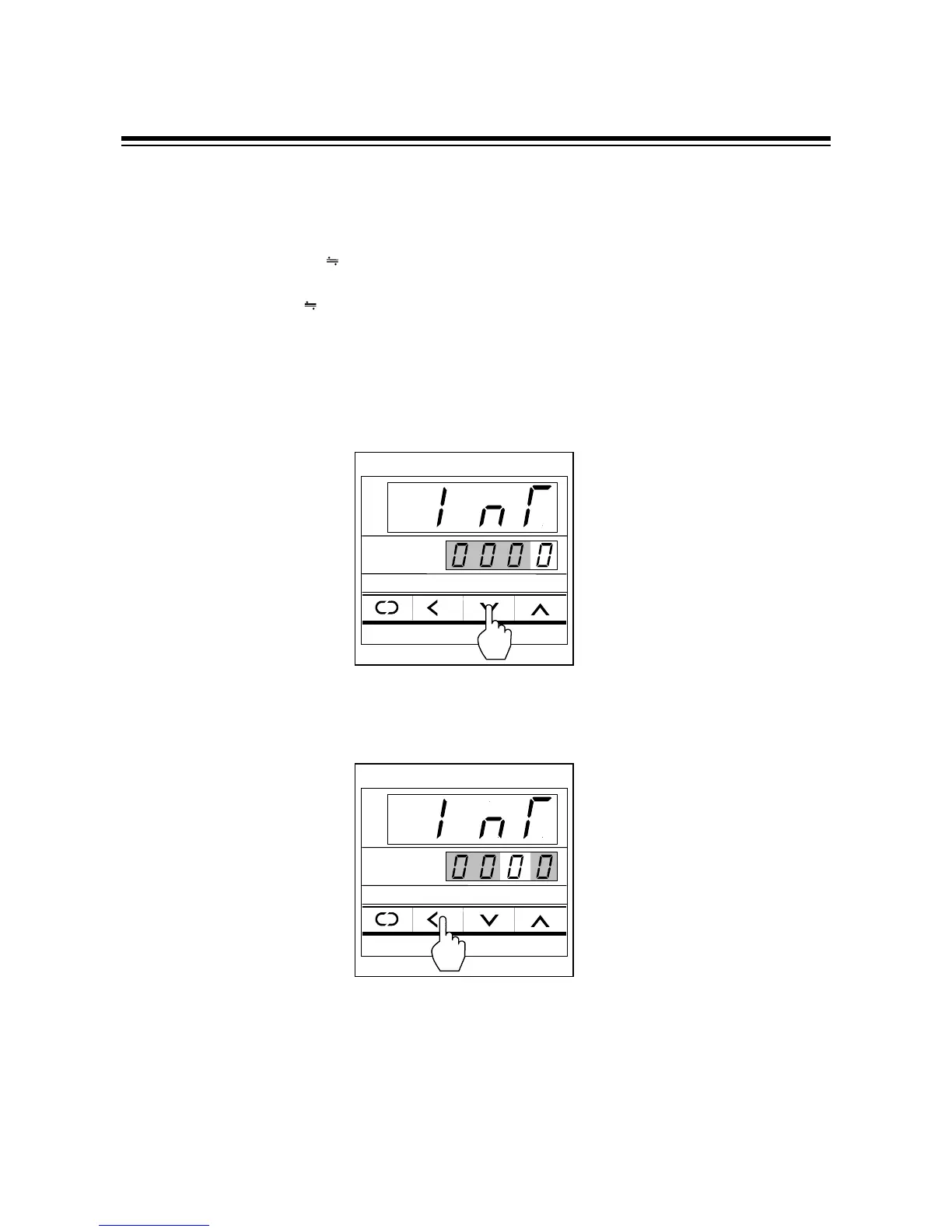

3. Press the DOWN key to enter "0" in the lowest digit.
4. Press the <R/S key to brightly light the tens digit.
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
