3. SETTING FOR COMMUNICATION
IMCD06-E2
9

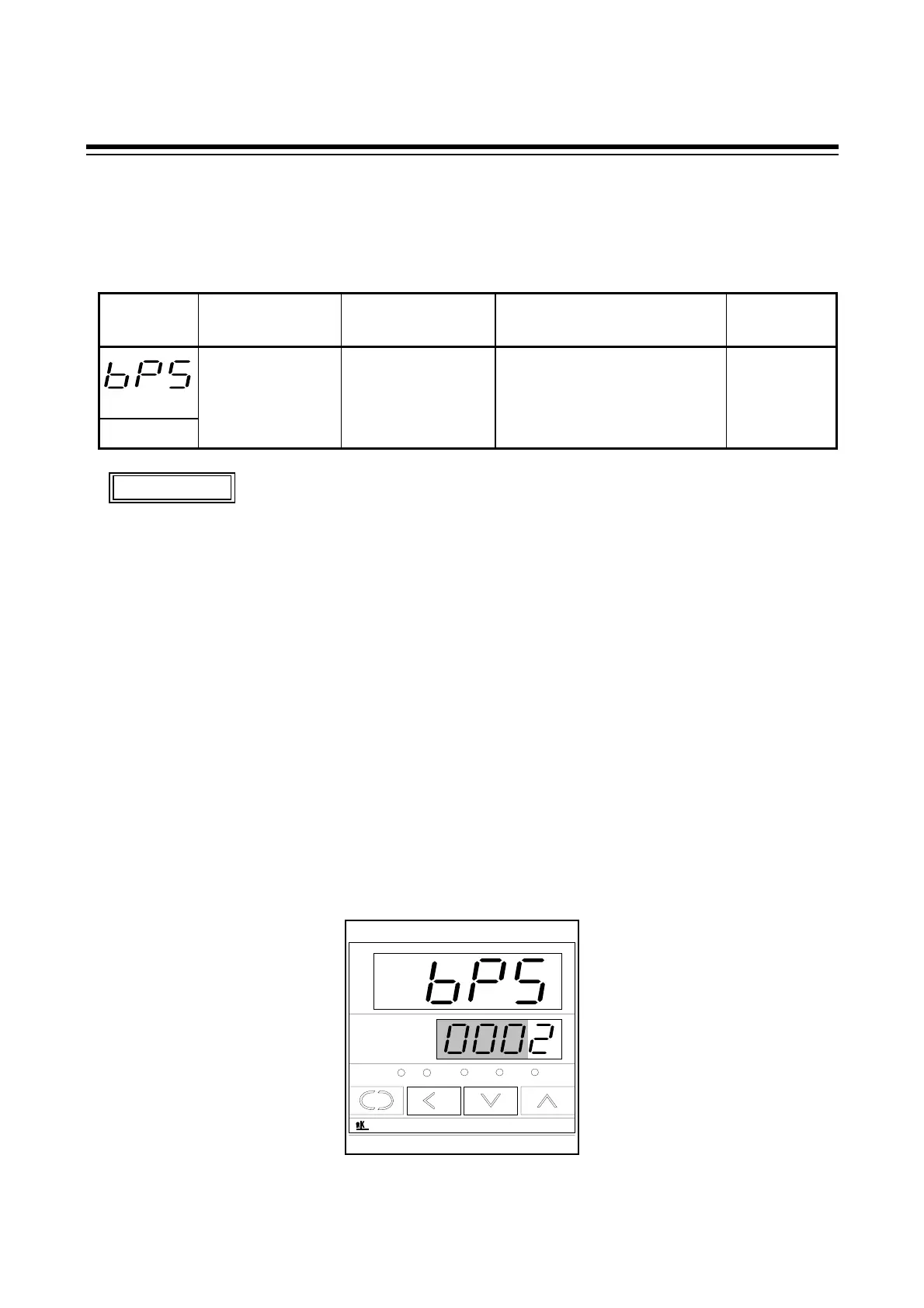

3.4 Communication speed setting
Set a communication speed of 2400 bps, 4800 bps, 9600 bps or 19200 bps by using numerals from 0
to 3. Press the UP or DOWN key to change the numeral.
Symbol
Name
Setting range
Description
Factory set
value
Communication
speed
0 : 2400 bps
1 : 4800 bps
2 : 9600 bps
Selects the communication
speed.
2
bPS
3 : 19200 bps
Set the same communication speed to both the controller and connecting host
computer.
When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
If key operation is not performed for more than 1 minute without pressing the SET key
after the device address is set, the controller is automatically changed to PV/SV display
mode. In this case, the set communication speed returns to the value before the setting
is changed.
Setting procedure
Example: When setting communication speed to "1: 4800 bps."
1. Change the controller to communication setting mode, and then display the communication
speed (See P. 5, 6).
Communication speed
PV
SV
AT OUT1 OUT2 ALM1 ALM2
R/S
CD901
SET
CAUTIONS
To Next Page
