4 IMR01M01-E16

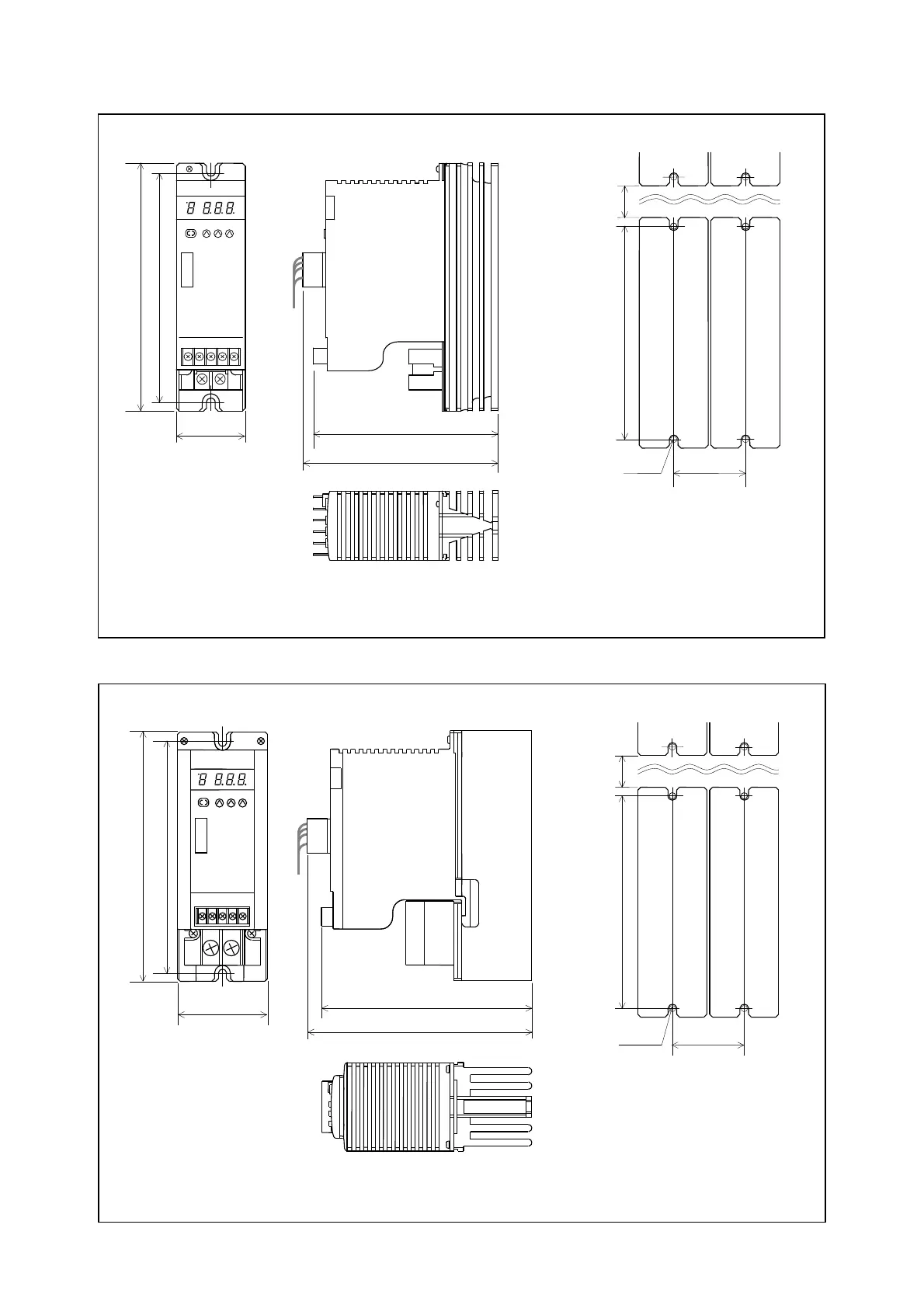

4.2 Dimensions
20 A and 30 A types
160
172
125
50
b
2-M5
160 ± 0.2 200
Unit: mm
Mounting dimensions Dimensions
48
133.5
a
Dimensions when the connector plug (optional) is
connected. When connecting the connector plug, install the
thyristor by taking enough space for its wiring into account.
b
Minimum space when mounted closely side by side.
c
Some space for heat radiation is required in the vertical
direction between the lower and upper ends of the
instruments. Therefore, make a space of at least 200 mm
between them.
45 A and 60 A types
200
c
70
b
174
±
0.2
2-M5
150
158.5
a
174
188
68
Dimensions
Unit: mm
Mounting dimensions
a
Dimensions when the connector plug (optional) is
connected. When connecting the connector plug,
install the thyristor by taking enough space for its
wiring into account.
b
Minimum space when mounted closely side by side.
c
Some space for heat radiation is required in the
vertical direction between the lower and upper ends
of the instruments. Therefore, make a space of at
least 200 mm between them.
