5. Assembly Instructon
Here s some mportant nformaton for electrc bcycles assembly, whch
s very useful for your mantanng your electrc bcycle, and especally
helpful when you purchase our e-bkess whch s partly assembled and
packed n a carton.
Step 1: Preparation:
Take the electric bicycle and parts out of the carton and detach all parts
that are tied to the frame. Be careful not to scratch the frame or cut the tire
when removing the wrapping. And please do not rotate the handlebar
either until disassembly, otherwise it may break the cables. Then carefully
examine the carton for loose parts and make certain that no parts are left.

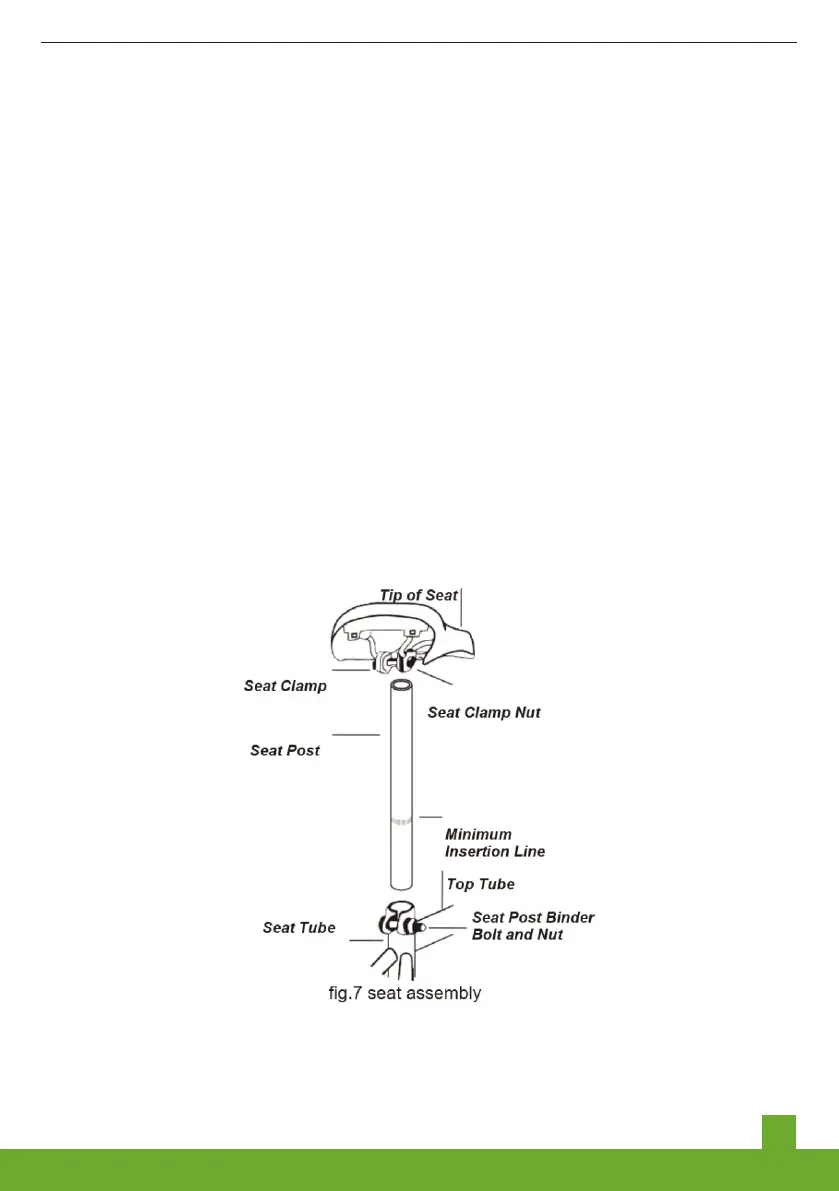

Step 2: Seat Assembly (refer to fig.7)
1. Loosen the seat clamp nuts(both sides)
2. Insert the seat post into the seat clamp. The seat post must extend at
least 1/4 inch(6-7mm) above the top edge of the seat clamp.
3. Re-tighten the seat clamp nuts on both sides(hand tight).
4. Push the seat post into the seat tube of the electric bicycle frame and
rotate the seat until the tip of the seat is directly above the top tube of the
frame.
THE SEAT POST MUST BE INSERTED INTO THE SEAT TUBE AT A
DEPTH WHERE THE MINIMUM INSERTION LINE IS NOT VISIBLE!!!
