Step 5 Brake Adjustments
The brake on your electrc bcycle should have been adjusted correctly n
our factory, however, as cables do stretch, t s mportant to check the
adjustment of your brakes after your first rdng. Most brakes wll need
some adjustment after beng used a few tmes.

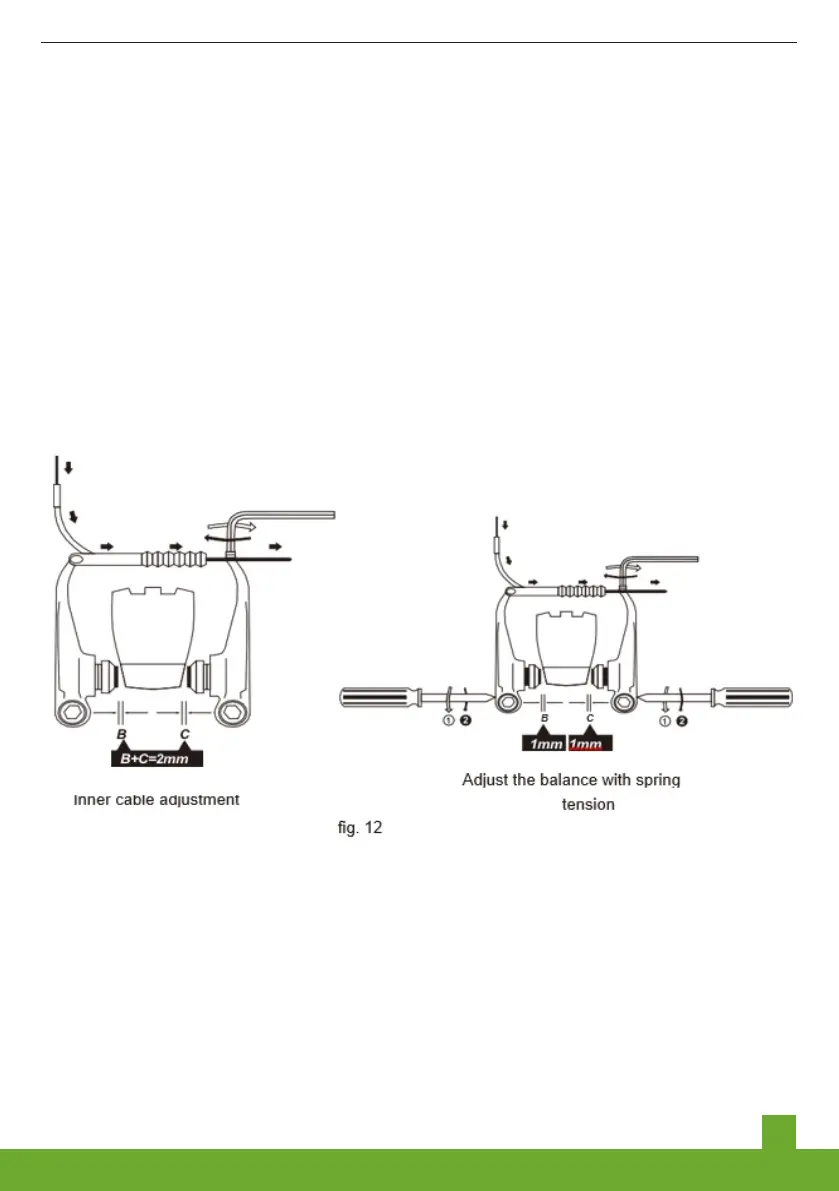

V-brake Adjustment(refer to fig. 12) :
a. Press the nner cable through the nner cable lead, and after settng so
that the total of the clearance between the left and rght shoes and the
rms s 2mm, tghten the cable fixng bolt, tghtenng torque: 6-8N.m or 5-
6foot.lbs .
b. Adjust the balance wth the sprng tenson adjustment screws.
c. Depress the brake lever about 10tmes as n normal brake operaton
and check that everythng s operatng correctly and that the shoes
clearance s correct before usng the brakes.
Note: If you are still failed to well adjust the V-brakes, we strongly
recommend it being done by professionals. If the distance between the
left/right shoes and the rims is more than 2mm after abrasion for a long
time, you need to replace the left and right shoes to ensure the safety.
Basic Disc Brake Adjustment
The notes that follows are not exhaustive. If you need further assistance,
please take your cycle to your local dealer or a professional cycle shop.
a.Brake Lever and Brake Pad Travel Adjustment
