Robe 250 XT - Mounting Plate Fixation

10

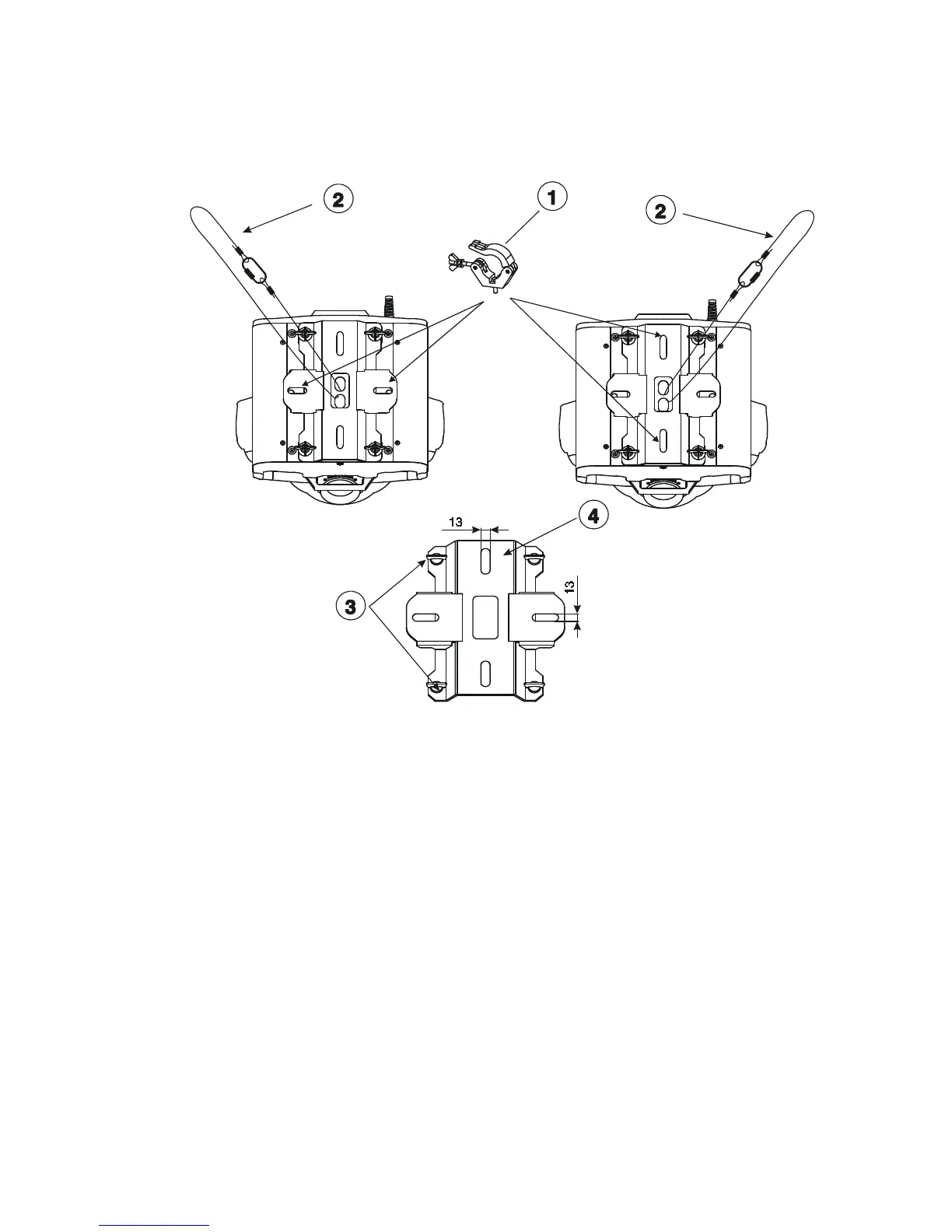

Fixation via a mounting plate
1. Screw 2 clamps (1) to the mounting plate (4) with M12 bolts and lock nuts through the holes in the
mounting plate (4).
2. Insert the 4 quick-lock fasteners (3) into the holes on the bottom of the base and tighten fully clockwise.
3. Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.
1-Clamp
2-Safety-rope
3-Quick-lock fasteners
4-Mounting plate
