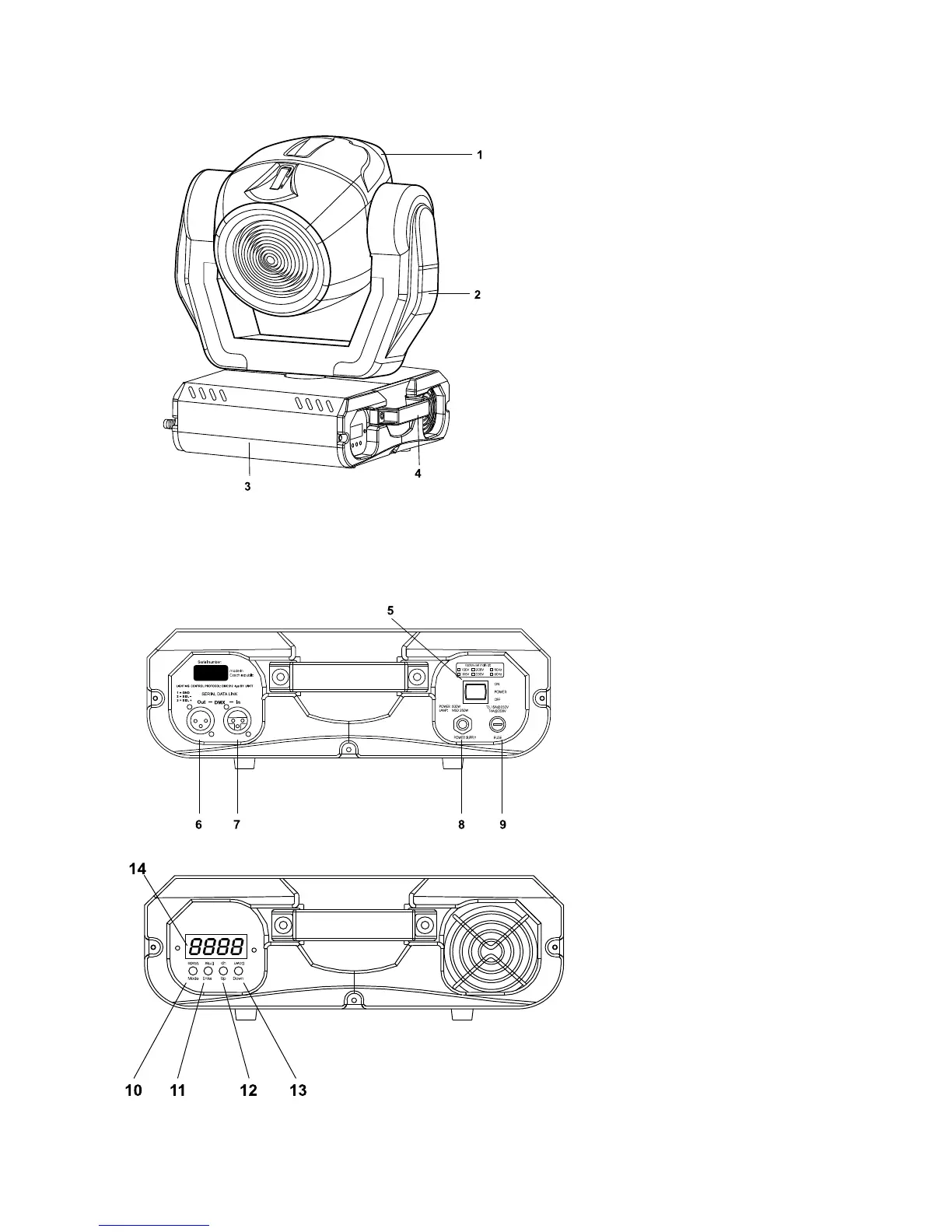

Robe 250 XT - Wash 250 XT Device Overview; Device Components; Rear Panel Connections; Front Panel Controls

6
1 - Moving Head
2 - Yoke
3 - Base
4 - Carrying handles
Rear panel:
5 - Power-switch
6 - DMX output
7 - DMX input
8 - Powercord
9 - Fuseholder
Front panel:
10 - Mode-button
11 - Enter-button
12 - Up-button
13 - Down-button
14 - Display
3. Description of the device
