29
MA.Er.
(Master error)
The message informs you that the fixture was addressed as a master and DMX signal is connected to its
input.Disconnect the DMX controller from fixture's input and address the fixture as the master again.
10. Technical specifications
Power supply:
EU-model-Voltage........................208/230/240V AC, 50/60Hz ~
-Fuse.........................T 3.15 A@230V
US-model-Voltage.......................100/120/208/230/240 V AC, 50/60Hz ~
-Fuse.........................T 6.3 A@120V
-Power consumption....500 VA
Motors:
-9 high quality stepping-motors controlled by microprocessors
Lamps:
-Philips MSD250/2 GY9.5
Optical system:
-High luminous-efficiency parabolic reflector
-Fresnel lens of diameter 150 mm
-Manualy adjustable beam angle from 8° to 22°

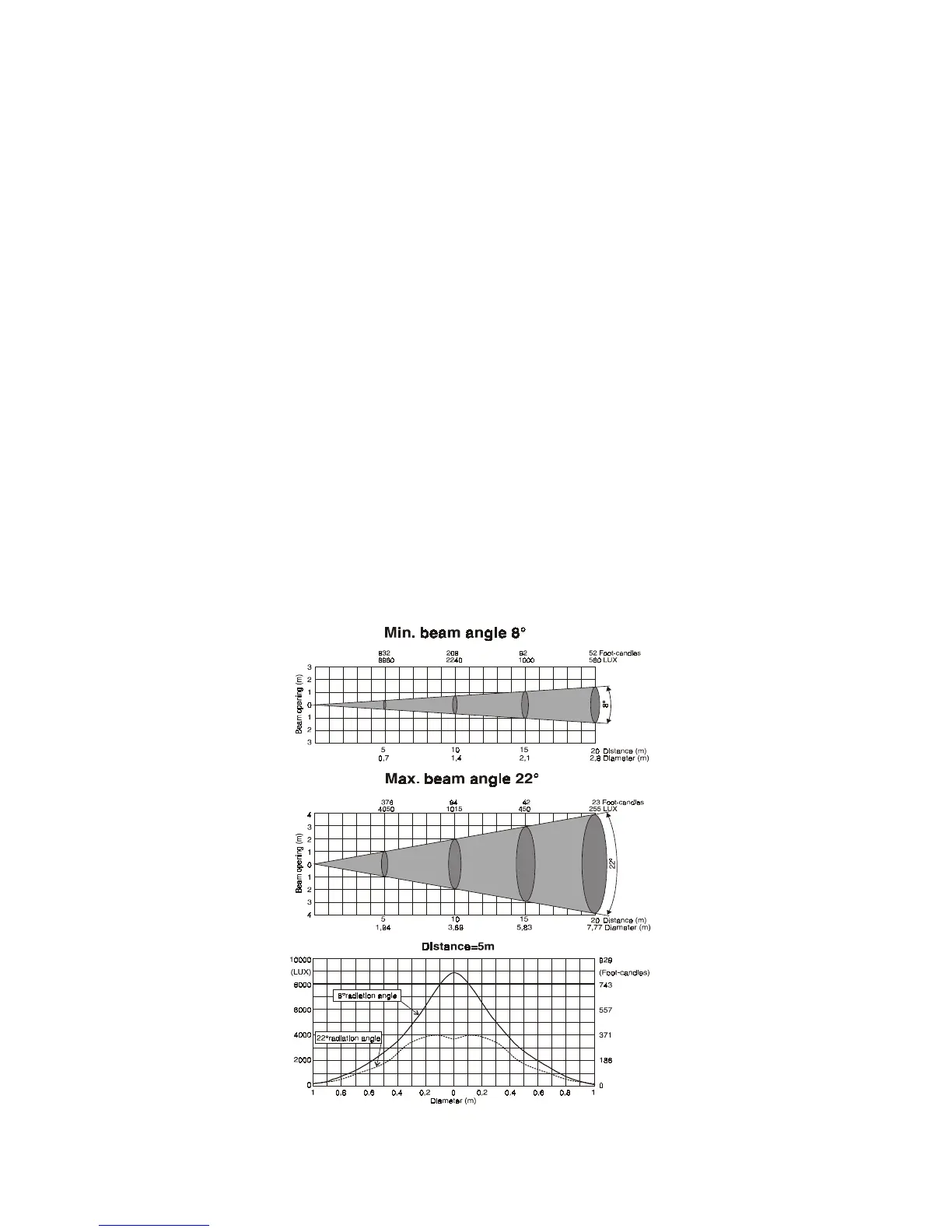

Beampath:
