4.3 Adjusting beam eangle
The Fresnel lens system can be configured in the range between 8° and 22° .To set the desired beam angle,remove
the front cover by loosening 2 fasteners on this cover and loose 2 adjusting screws on the Fresnel lens unit and
adjust the required beam angle.Tighten the adjusting screws again and fix back the front cover.

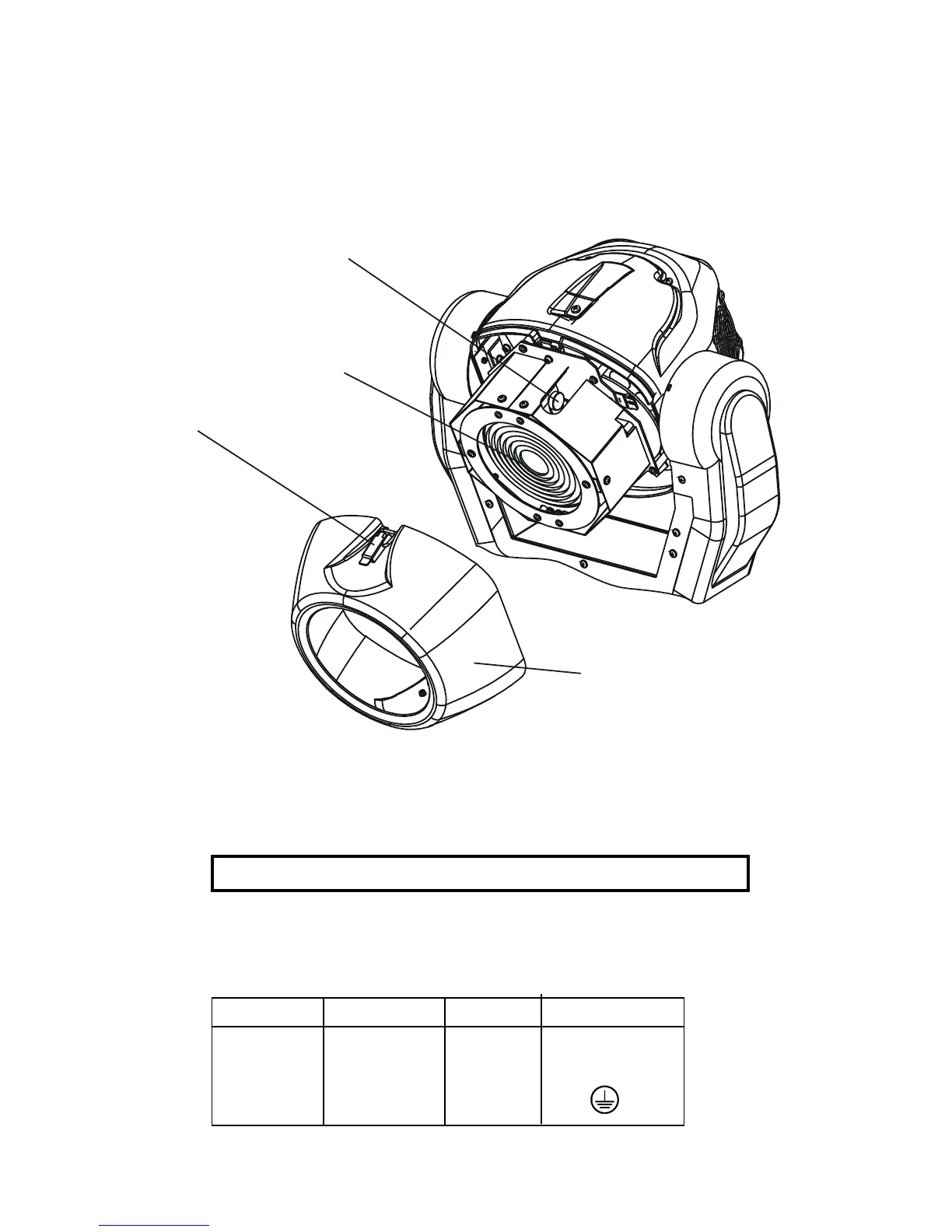

Adjusting screw
Fresnel lens
Fastener
Front cover
4.4 Connection to the mains
Verify the power supply settings before applying power!
If you wish to change the power supply settings,see the chapter Appendix.
Connect the fixture to the mains with the enclosed power cord and plug.
The earth has to be connected!
The occupation of the connection-cables is as follows:
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
