Robe ROBIN iForte - Fixture Component Specifications; Gobo Wheels and Prisms Specifications; Beam Control and Fixture Features

44
Rotating gobo wheel 2
6 glass gobos can be indexed and rotated in both directions at di󰀨erent speeds,
gobo wheel continuous rotation
Gobos: outside diameter= 30.9
+0,1
mm, image diameter=25 mm, thickness=1-3.5 mm, high
temperature borooat or better glass.

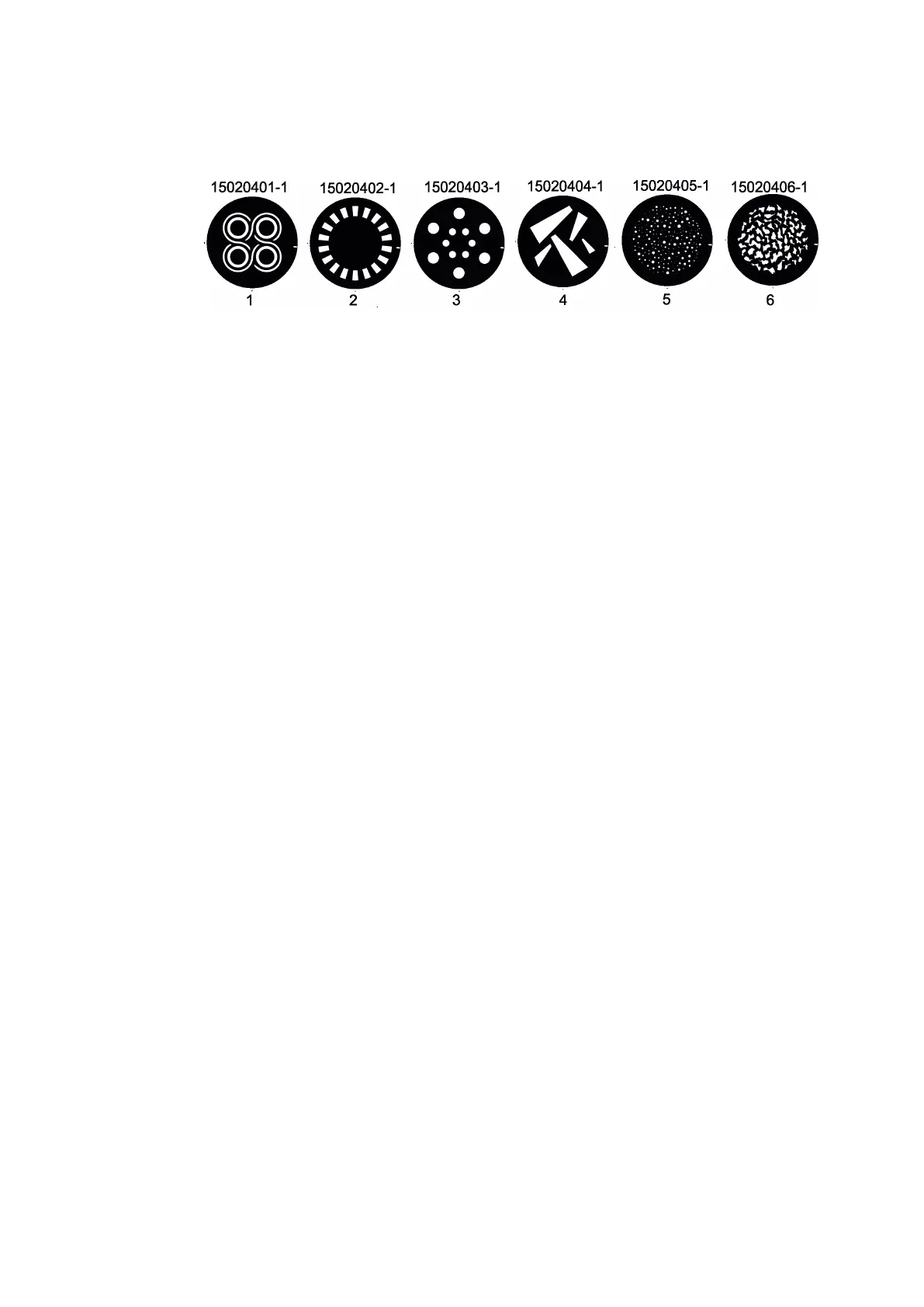

Gobos order:
Note. Metal (or aluminium) gobos cannot be used due to thermal stress.
Prism 1
Rotating 6-facet linear prism with continuous rotation in both directions and indexing
Prism 2
Rotating 6-facet radial prism with continuous rotation in both directions.
Iris Motorized iris for di󰀨erent beam diameters
Frost lters
2 separate,variable frost lters ( light (1°) and medium (5°))
Both lters are replaceable
Framing shutters module
4 individually positionable shutters rotation of the complete frame system +/- 60°
Each framing shutter can be swiveled
Zoom
Linear motorized zoom
Min. beam angle :5°
Max. beam angle: 55°
Strobe
Strobe e󰀨ect with variable speed (0.3 - 20Hz)
Dimmer
Smooth dimmer from 0 - 100 % (8 or 16 bit (internal 18 bit))
Control
Graphic touch screen for xture setting and addressing
Gravitation sensor for auto screen positioning
Battery backup of the touch screen
Readout xture and LEDs usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault nding, error messages
Built-in demo sequences
Stand-alone operation
2 user editable programs, each up to 80 steps
Supported protocols: USITT DMX 512-A, RDM, ArtNet, MANet, MANet2, sACN
Support of RDM (Remote Device Management) and NFC
1 DMX mode (54 control channels)
