3.2 Replacing the frosts
Unplug the xture from mains before replacing the frosts!
To replace the frost.
1. Disconnect the xture from mains and allow it to cool for 40 minutes.
2. Remove cover of the head by unscrewing 6
h
ex socket head screws M5x16 on the cover to get access to
the 1° frost (1) and 5° frost (7).
3

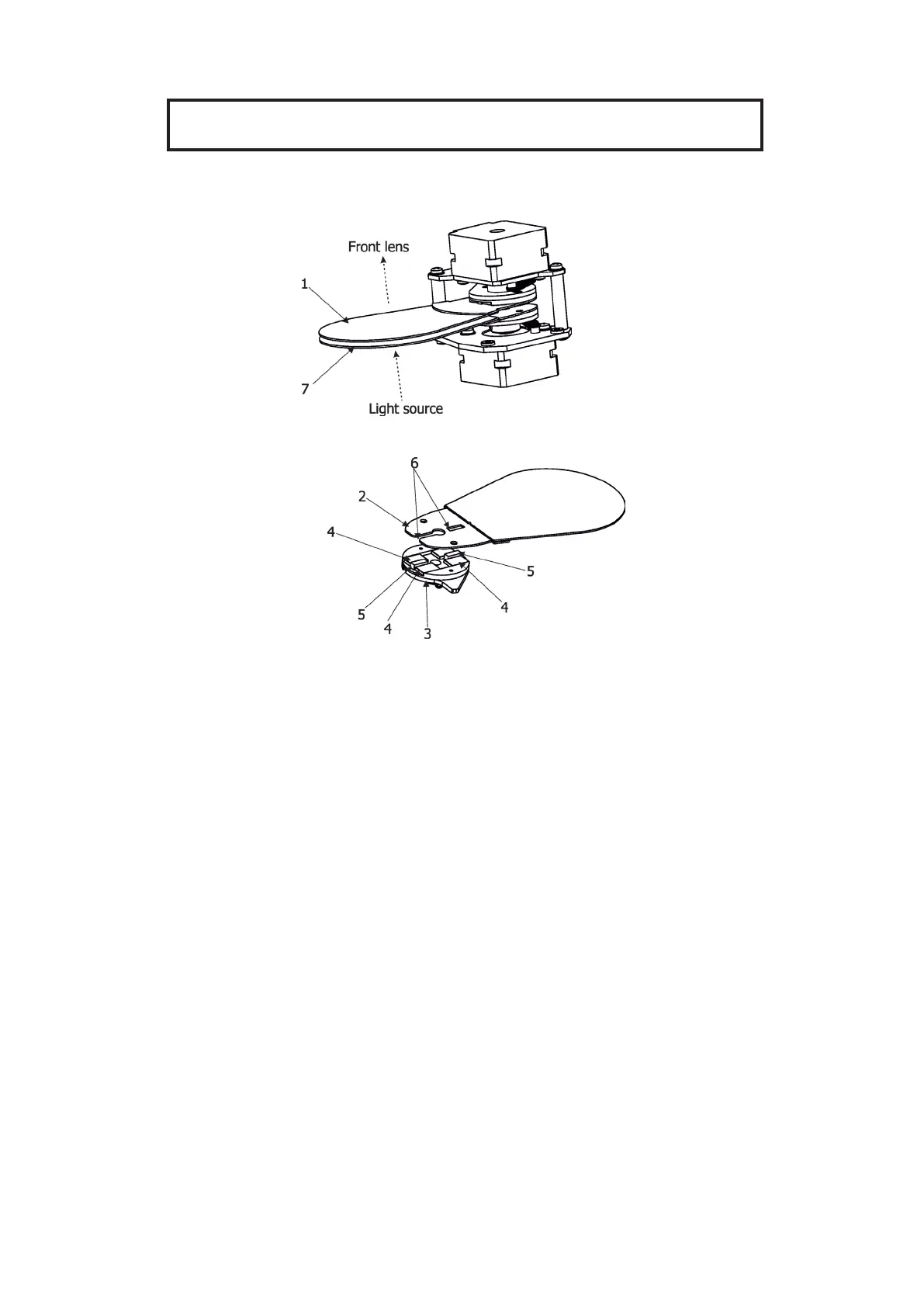

. The holder (2) of the frost foil is fastened to the frost holder (3) by means of the four magnets (4). Grip the
holder (2) and carefully tilt it out to break a force of magnets (4) on the frost holder (3).
4
. Place a new frost module into the frost holder (3). Check, that both slots (6) snapped correctly into two
protrusions (5) in the holder (3).
5. P
lace the head cover back on the xture and screw it by means of the six
h
ex socket head screws M5x16
before applying power.
