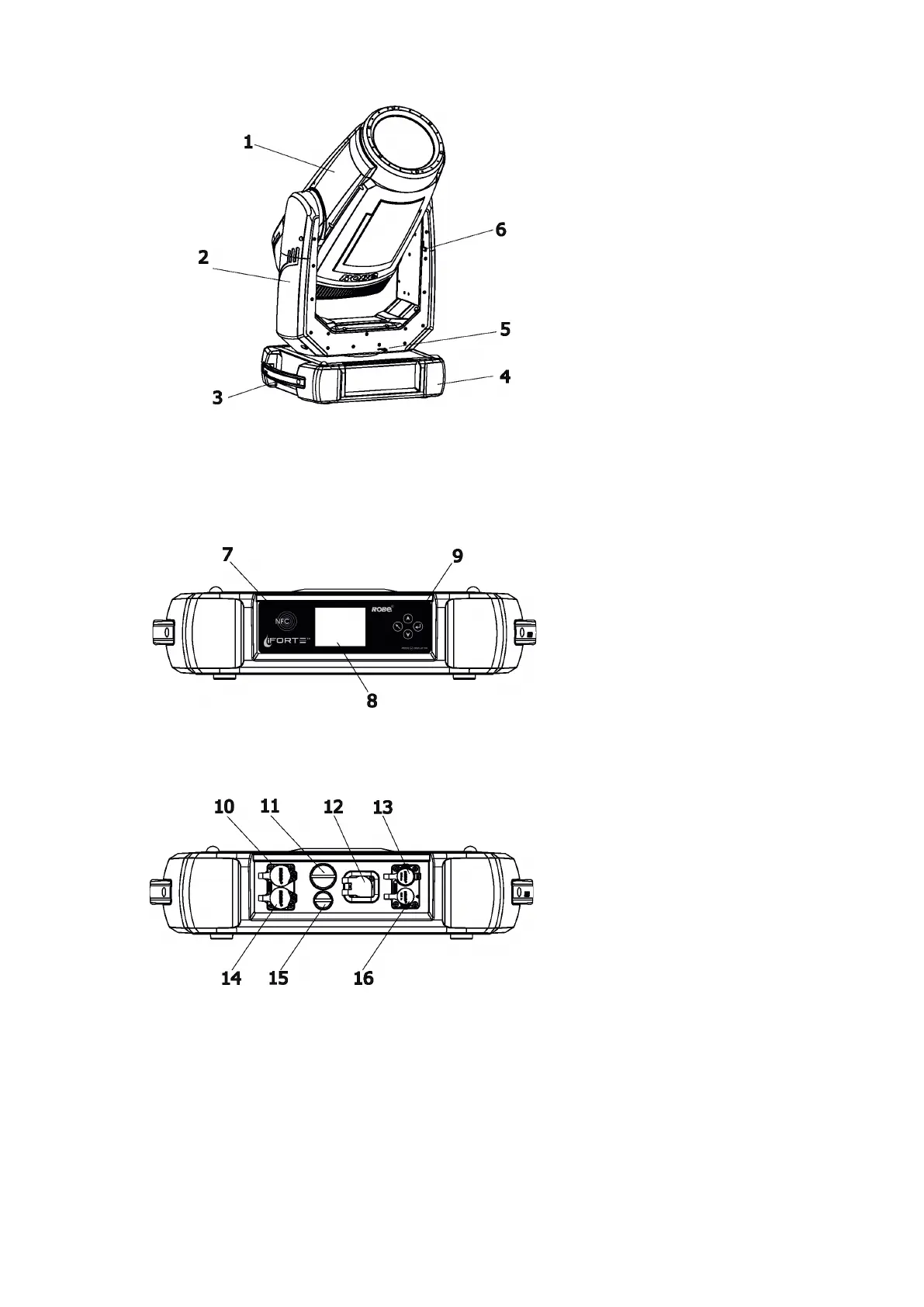

2. Fixture exterior view
The head has to be locked for transportation - the tilt lock latch (6) and the pan lock latch (5) have to be in the
locked positions. To unlock the head, move these latches to unlock position before operating the xture.
1 - Head
2 - Arm
3- Handle
4 - Base
5 - Pan lock
6 - Tilt lock
.
Rear panel of the base
10 - Ethernet out (RJ45)
11 - Battery holder
12 - Power (PowerCon True 1)
13 - DMX out (5-pin XLR)
14 - Ethernet In (RJ45)
15 - Fuse holder
16 - DMX in (5-pin XLR)
Front panel of the base:
7 - NFC point
8 - Display
9 - Control buttons
