3.3 Replacing rotating gobos
1. Close a light output of the xture and allow the xture to cool about 40 minutes.
2. Remove cover of the head by unscrewing 6 h ex socket head screws M5x16 on the cover to get access to
gobo wheels.
3. Connect the xture to mains. Go to the tab "Service", select the menu "Adjust DMX values " and move

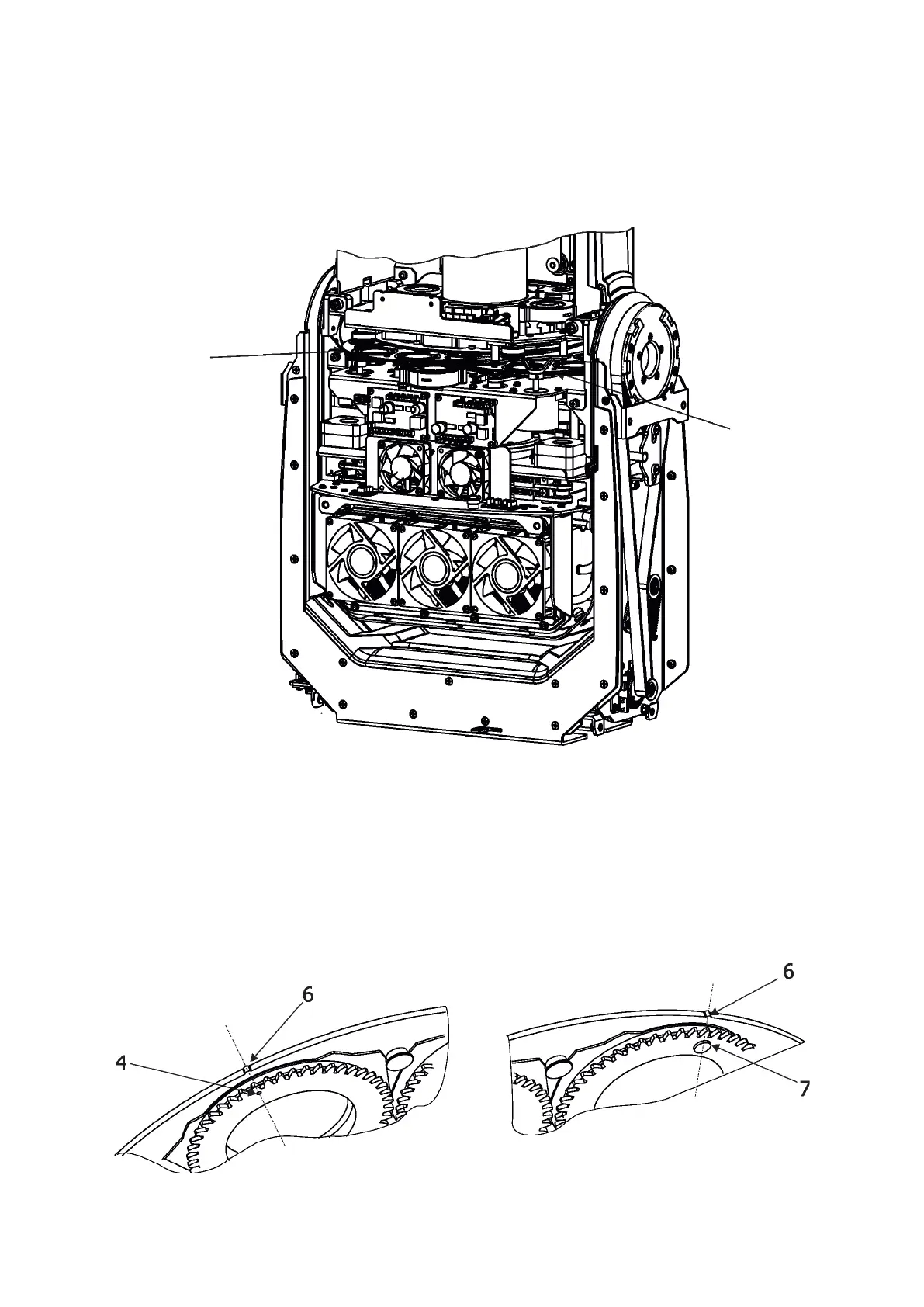

the xture head to the position which is suitable for changing rot. gobos as shown on the picture below.
4. Escape from the menu "Adjust DMX values " and go to the menu " Rotating Gobos Change" in the same tab,
select menu Gobo Carousel 1 (or Gobo Carousel 2) and enter the menu.
5. Select a gobo (G1-Mg, G2, G3, G4, G5, G6, G7) which you wish to replace. The selected gobo will move to
the accessible position for its changing.
Note: "G1-Mg" means the gobo holder with a magnet.
6. Check that the position point (4) on the gobo holder aims exactly to the toothlike projection (6) on
the edge of the rotating gobo wheel. If not, go to the option "Gobo O󰀨set" and adjust the position point (4)
exactly opposite of the toothlike projection(6). Adjusted value in the "Gobo O󰀨set" is valid for all gobos on
the gobo carousel.
Note: The magnet (7) on the gobo holder substitutes the position point (4).
7 . Gently pull up the gobo holder (3) from the rotation gobo carousel .
Gobo wheel 1
Gobo wheel 2
