3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.

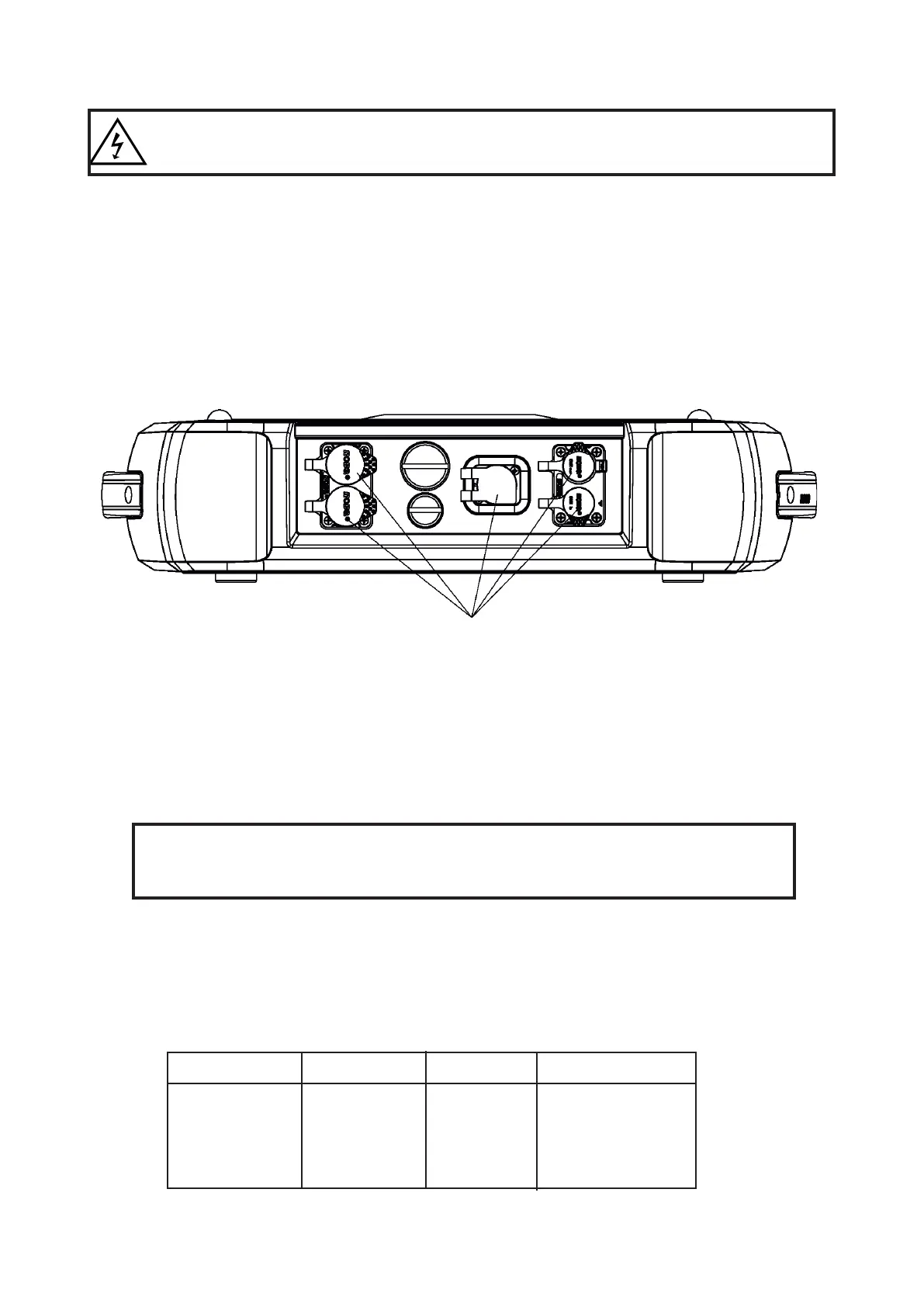

The Robin iForte´s panel connectors are dust and water protected according to IP 65
by mating with related cable connectors. They cannot stay disconnected outdoor.
All unused panel connectors have to be sealed by the rubber caps.
Visually check panel connectors on accidental water leaks before connecting related
cable connectors.
If some water will appear in panel connectors, do not connect cable connectors,
especially power!
3.1 Connection to the mains
To apply power, rst check that the head pan and tilt locks are released.
For protection from electric shock, the xture must be earthed!
The xture has to be connected to an electric outlet which is equiped with
a residual-current device (residual-current circuit breaker)!
Wiring and connection work must be carried out by a qualied electrician.
The Robin iForte is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC
power source from 100-240 Volts.
Power cable is enclosed to the xture. If you need to install a power plug on the power cable to allow connection
to power outlets, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you
have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth PE/GND
This device falls under class one and must be earthed (grounded).
Ensure all connections and the power plug on the cable are properly sealed.
The rubber caps have to be placed on unused connectors.
